Toe Adjustment - Rear
Toe Adjustment - Rear1. Using alignment equipment and the manufacturer's instructions, measure the rear toe.
2. Start the engine and center the steering wheel.
3. Turn the engine OFF and, using a suitable steering wheel holding device, lock the steering wheel in the straight-ahead position.

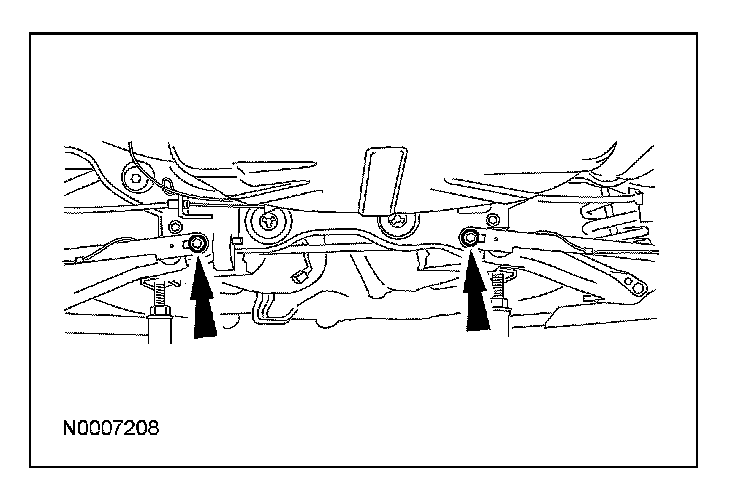

4. Loosen the toe link nut approximately one full turn.
5. From the opposite side, rotate the toe link bolt to achieve the specified toe setting.
6. CAUTION: Make sure that the toe settings are not disturbed while tightening the nuts.
While holding the toe link bolt, tighten the nut to 100 Nm (74 lb-ft).
7. Recheck the toe settings and adjust as necessary.
