Ignition Switch Lock Cylinder: Service and Repair

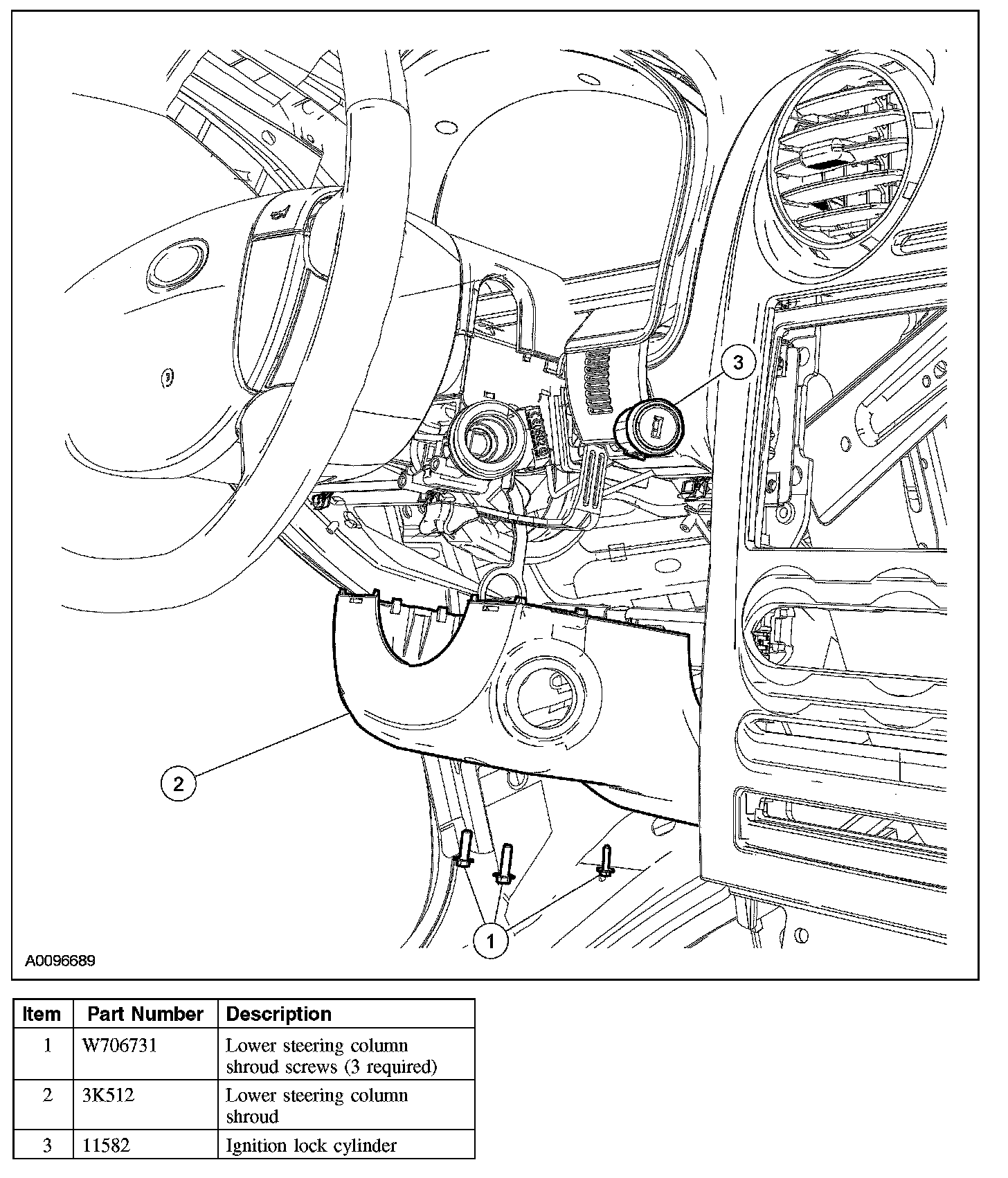

IGNITION LOCK CYLINDER







Removal and Installation
1. Disconnect the battery.
2. Remove the 3 lower steering column shroud screws.
3. Remove the lower steering column shroud.
4. Insert the ignition key and turn it to the ACC position.
5. Using a suitable tool, press the release pin and remove the ignition cylinder.
6. To install, reverse the removal procedure.
