Window Control Switch: Notes

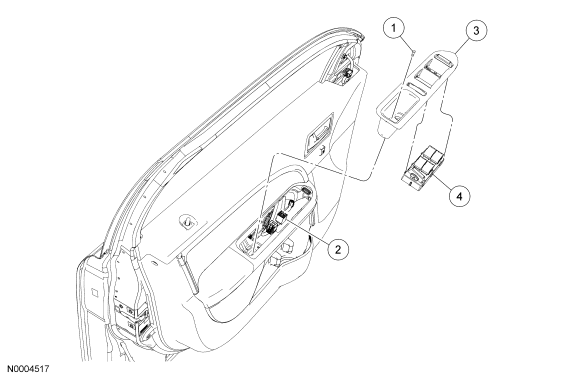

Fig 1: Exploded View Of Window Control Switch
GF0016544Courtesy of FORD MOTOR CO.
Item Part Number Description
1 997326 Screw (2 required)
2 14489 Electrical connector (3 required)
3 5422897 Window control switch bezel
4 14529 Window control switch
