Occupant Classification System Module Connector

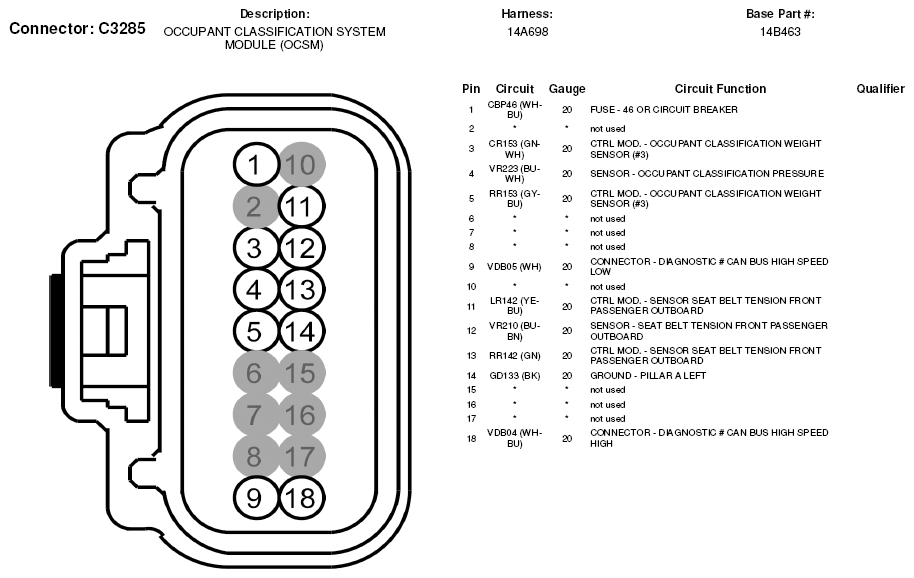

Fig 1: Occupant Classification System Module Connector End View (C3285)
