Audio Control Module (ACM): Notes

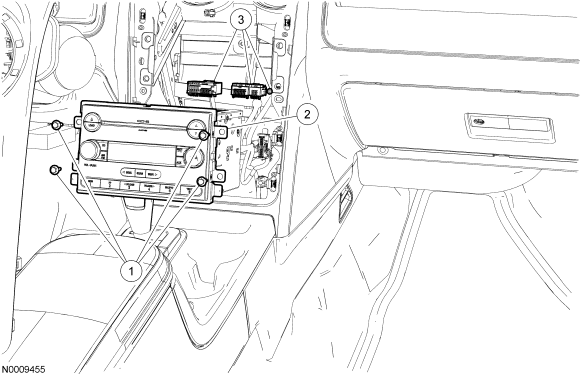

Fig 1: Exploded View Of Audio Unit
GF0018199Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707628 Audio Control Module (ACM) screws (4 required)
2 18C815 ACM
3 14A624 ACM electrical connectors and antenna lead-in cable
