Engine Ignition Components - Exploded View

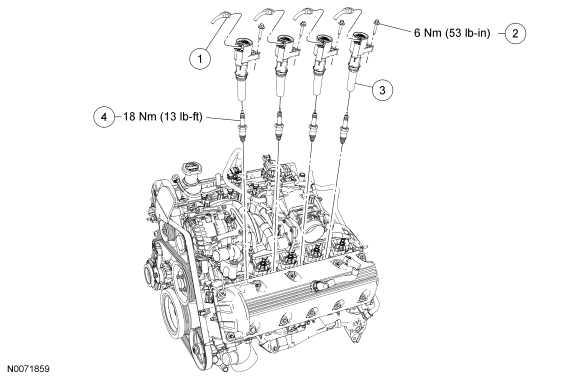

Fig 1: Exploded View Of Engine Ignition Components - LH Side With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Ignition coil-on-plug electrical connector (4 required)
2	W706175	Ignition coil-to-intake manifold bolt (4 required)
3	12A366	Ignition coil (4 required)
4	12405	Spark plug (4 required)

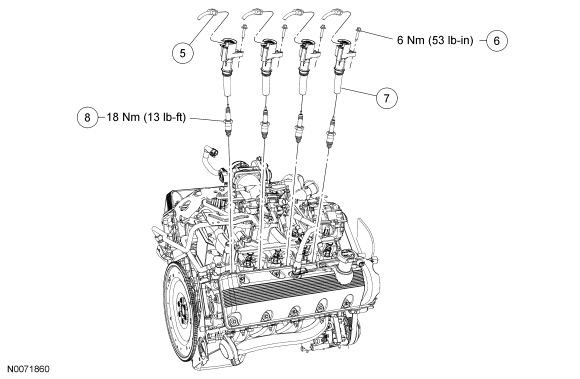

Fig 2: Exploded View Of Engine Ignition Components - RH Side With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
5	14A464	Ignition coil-on-plug electrical connector (4 required)
6	W706175	Ignition coil-to-intake manifold bolt (4 required)
7	12A366	Ignition coil (4 required)
8	12405	Spark plug (4 required)

For additional information, refer to the appropriate procedures in this article.
