Home >> Ford >> 2009 >> Crown Victoria V8-4.6L >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Body Control Module >> Diagrams >> Lighting Control Module (LCM)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

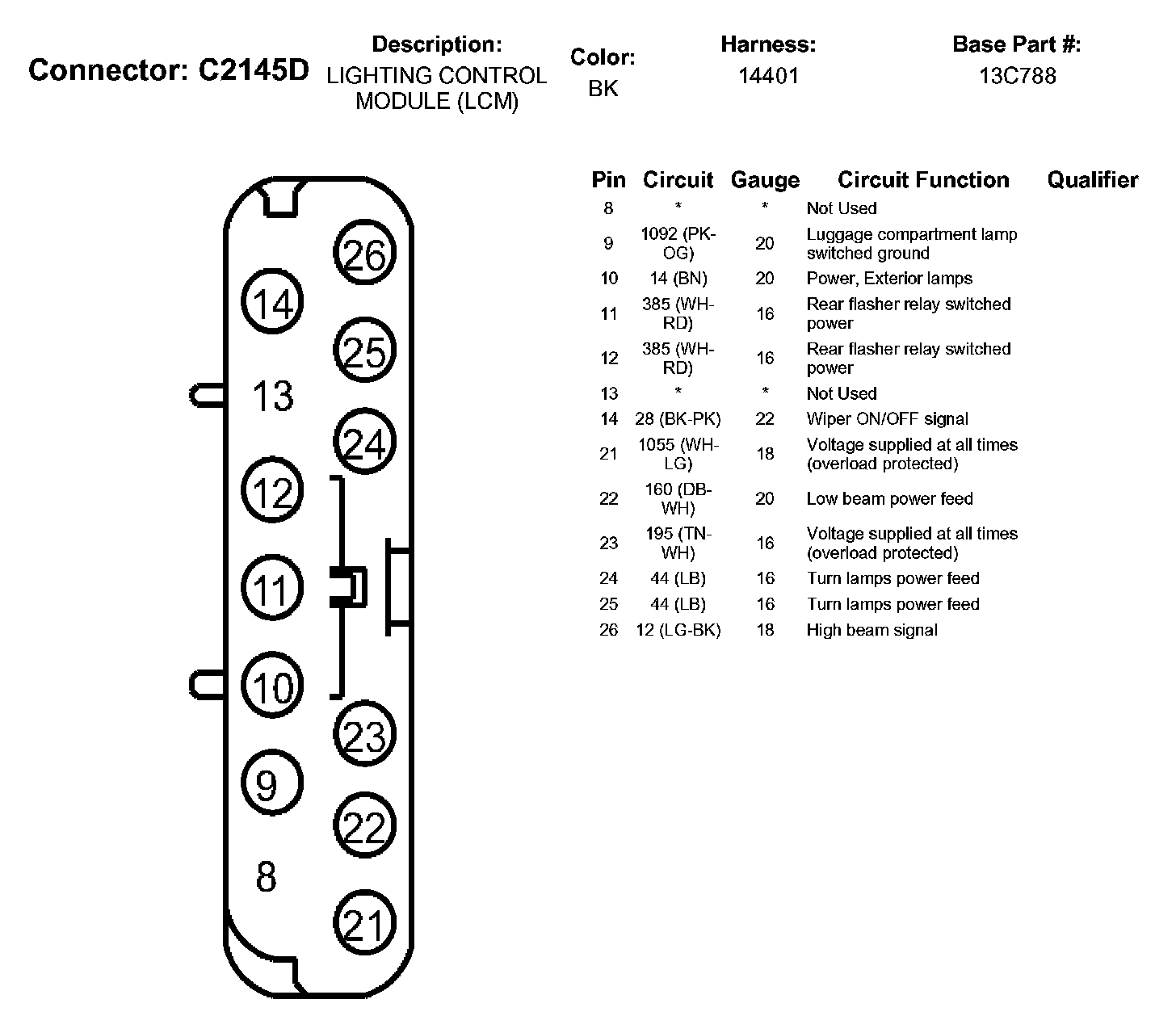

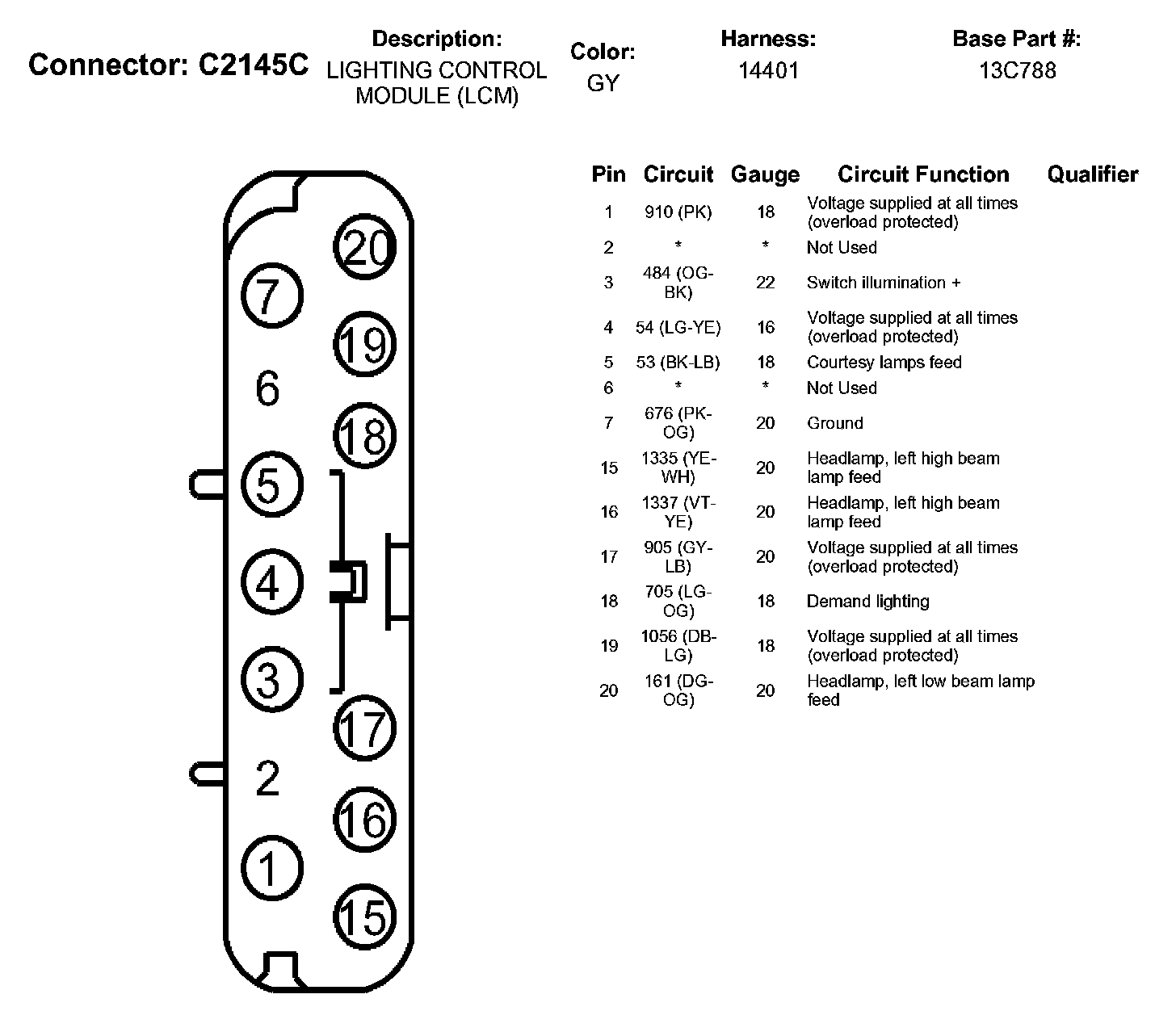

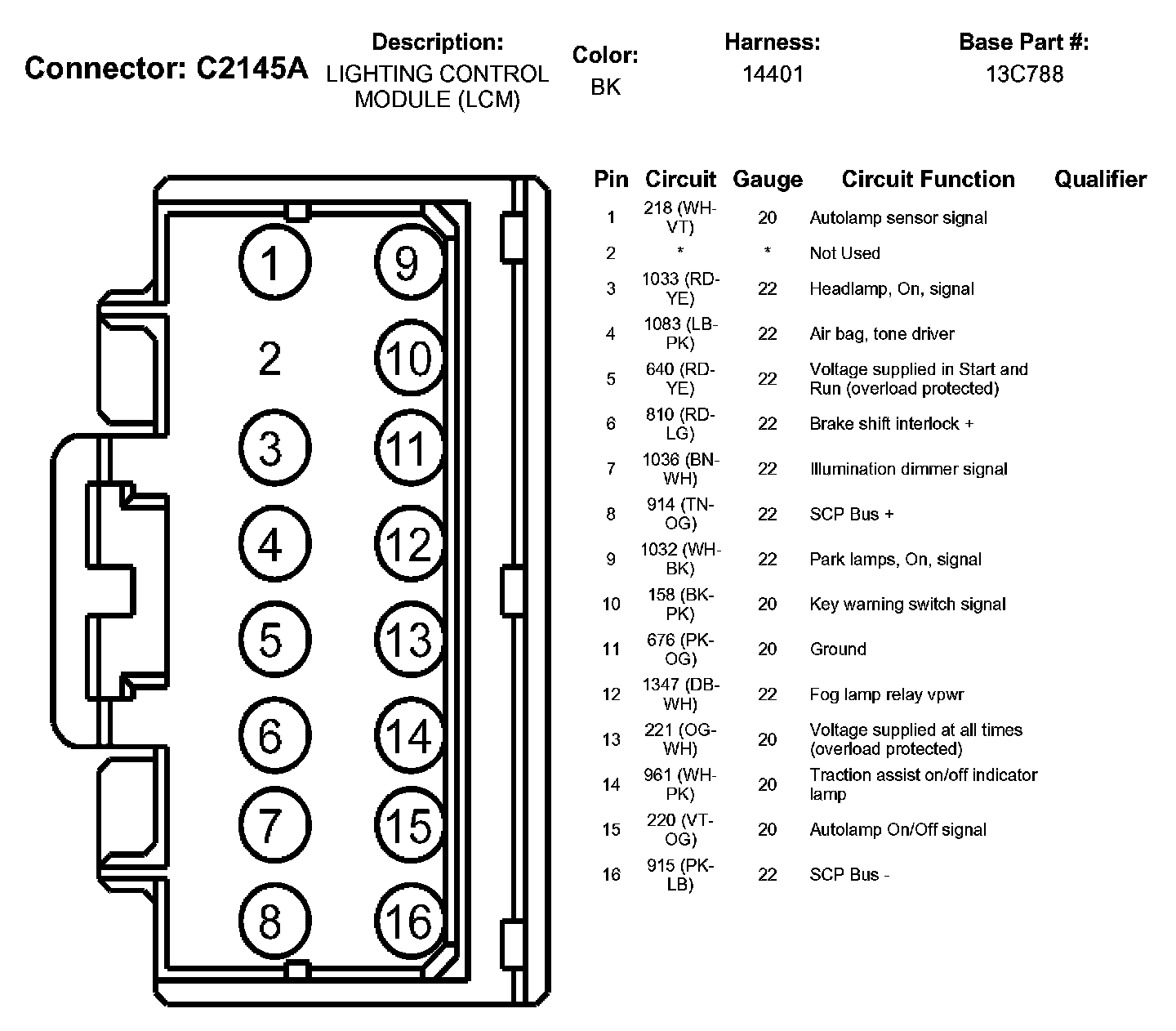

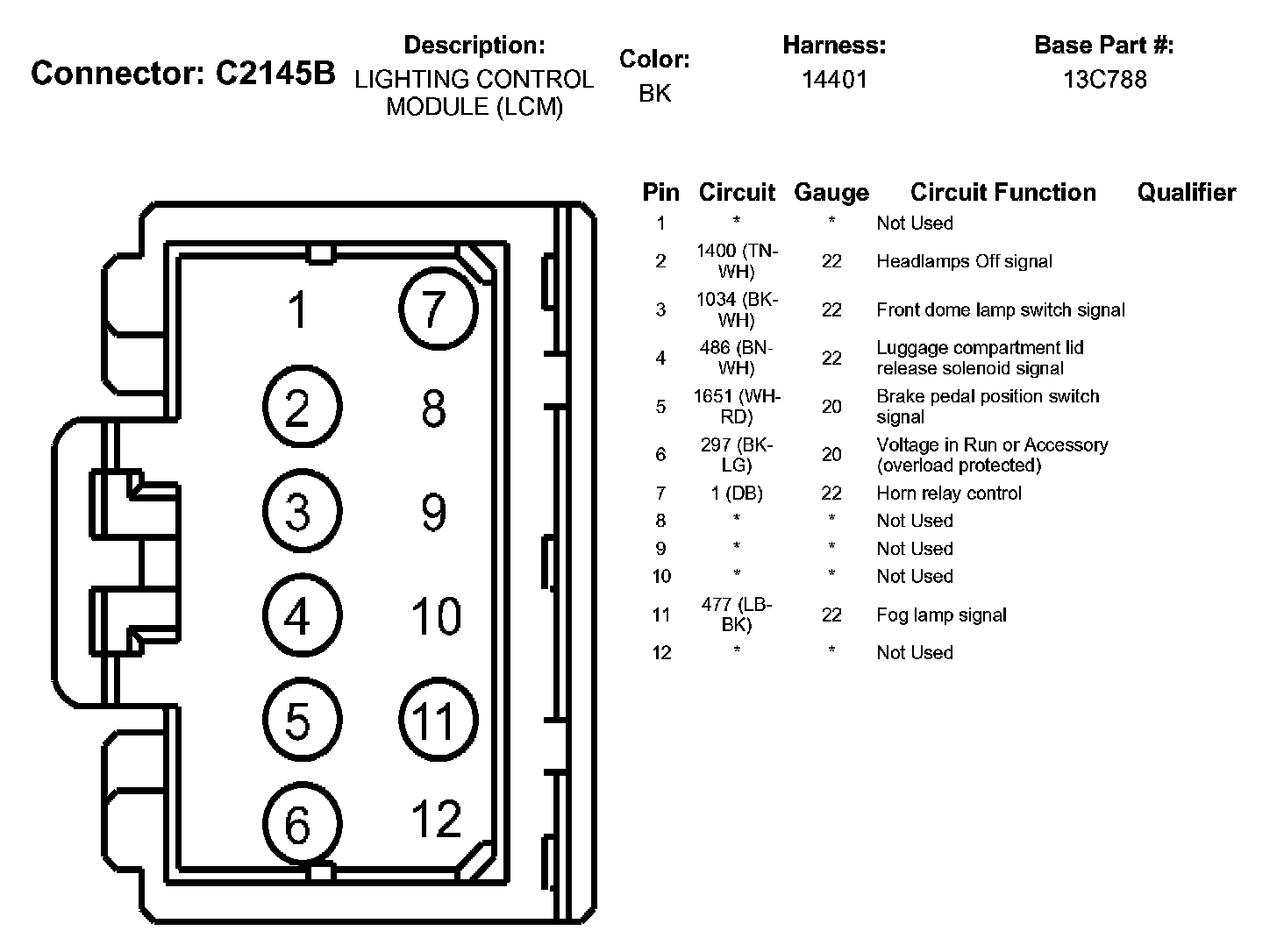

Lighting Control Module (LCM)
