Seat - Exploded View, Front

Seat - Exploded View, Front

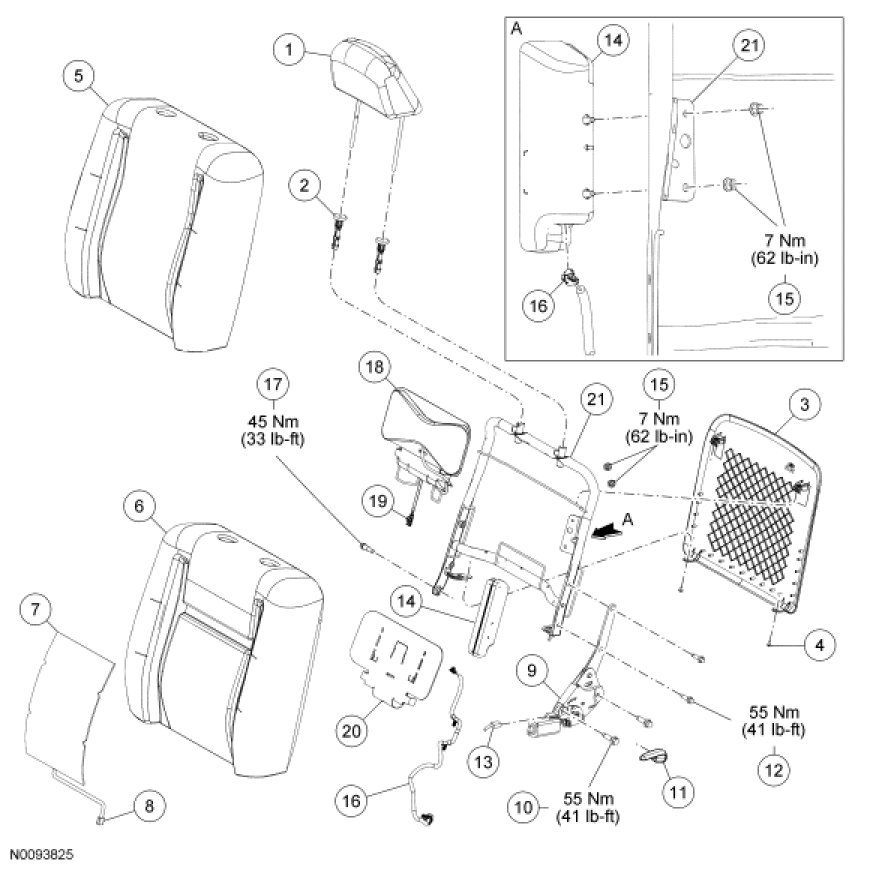

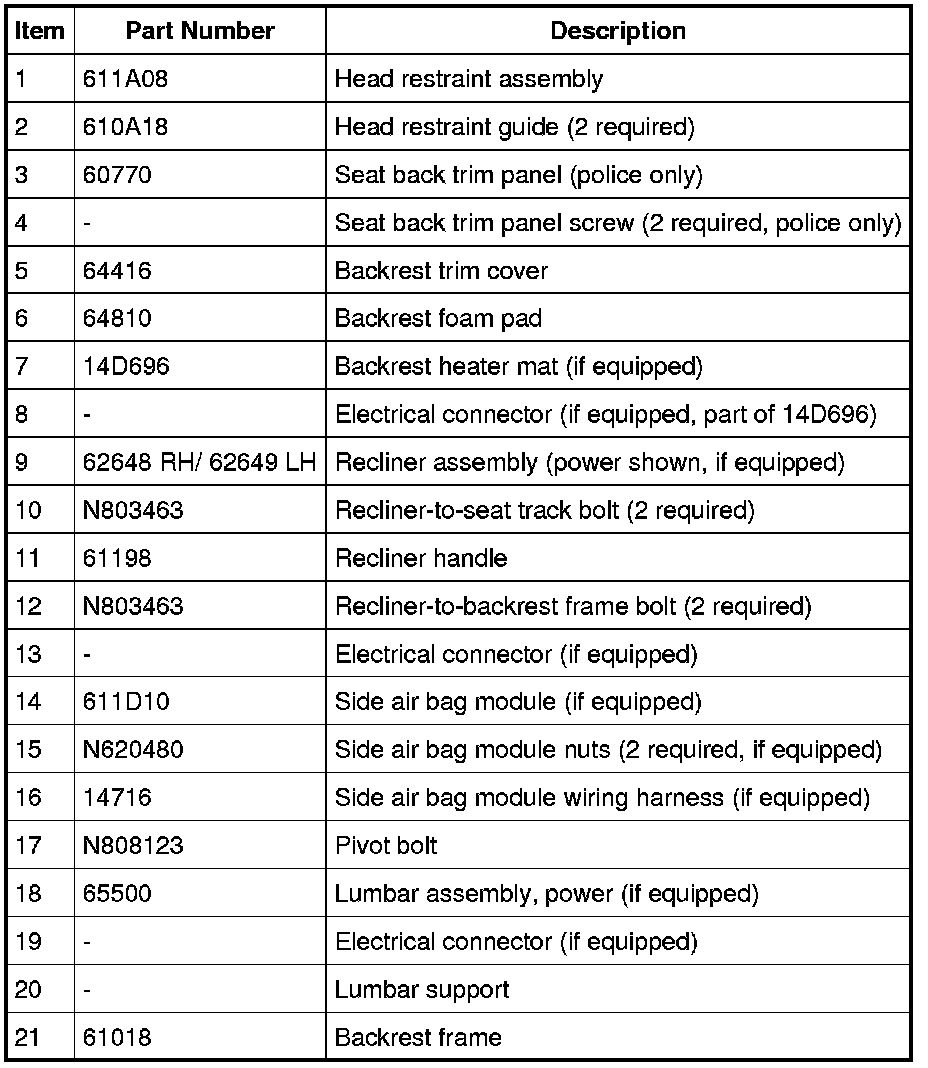

Front Seat Backrest

NOTE: Driver seat shown, passenger similar.

NOTE: Fifty percent seat shown, 40 percent similar.

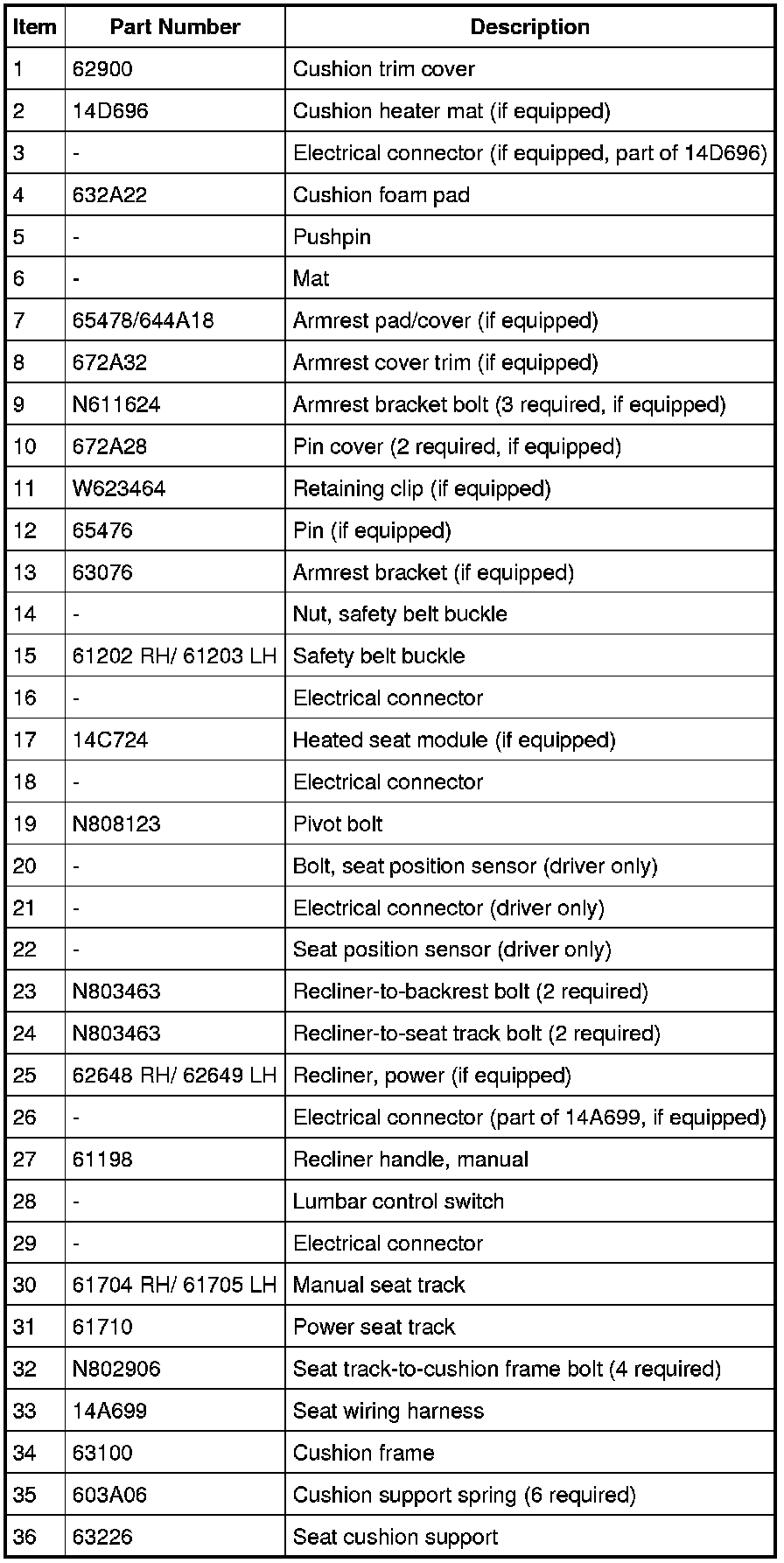

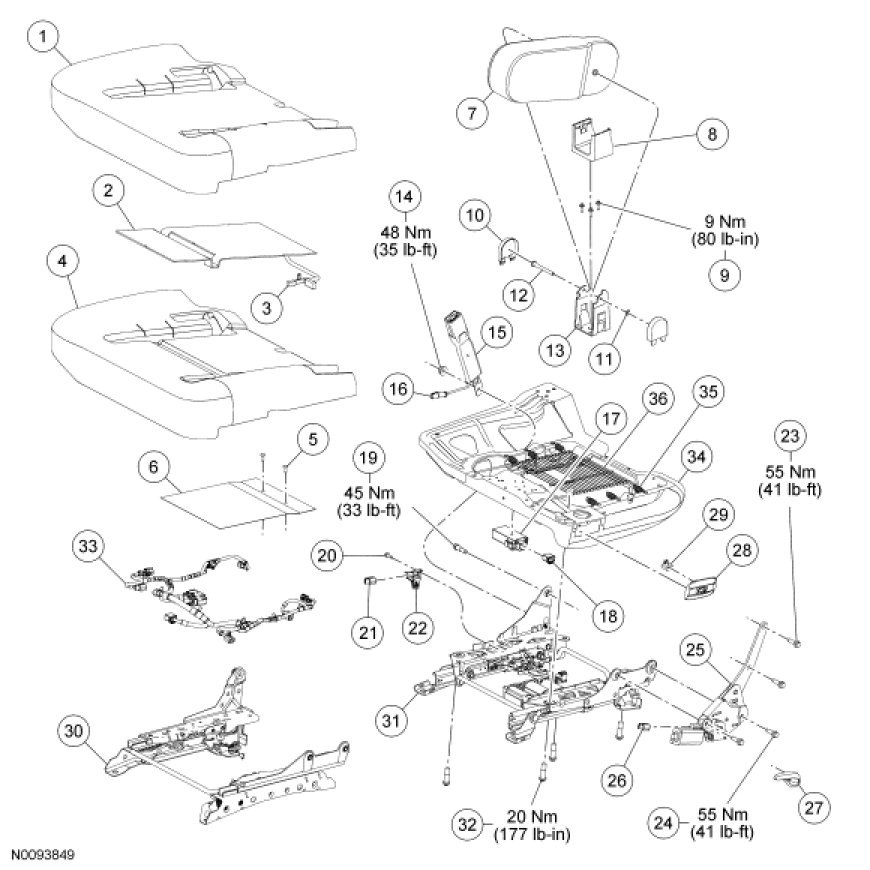

Driver cushion

NOTE: Driver seat shown. For disassembly and assembly of the passenger seat cushion, refer to Occupant Classification Sensor procedure in Air Bag Systems.

NOTE: Front 50 percent seat shown, 40 percent similar.










1. For additional information, refer to the procedures.
