Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) Sensor

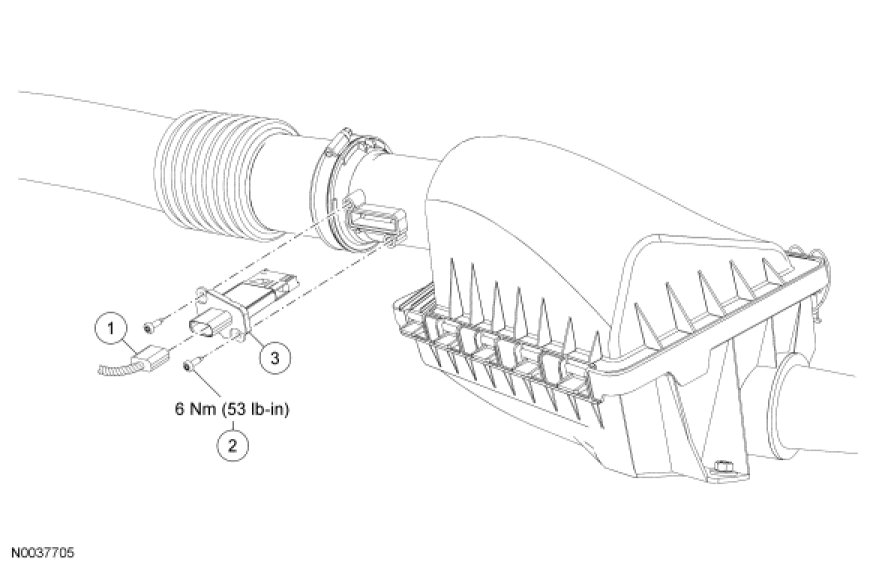

Removal and Installation

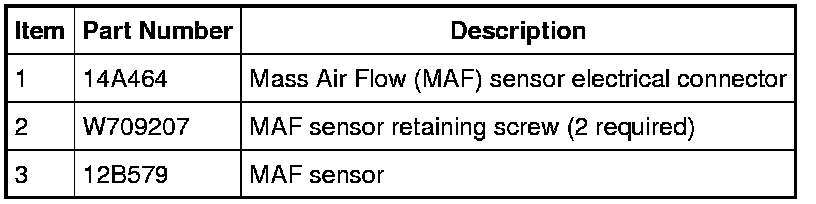

1. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

2. Remove the 2 MAF sensor retaining screws.
- To install, tighten to 6 Nm (53 lb-in).

3. Remove the MAF sensor.

4. To install, reverse the removal procedure.
