Overhaul Specs

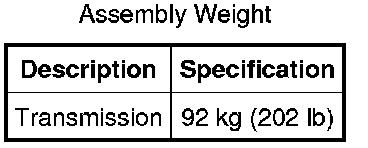

Assembly Weight:

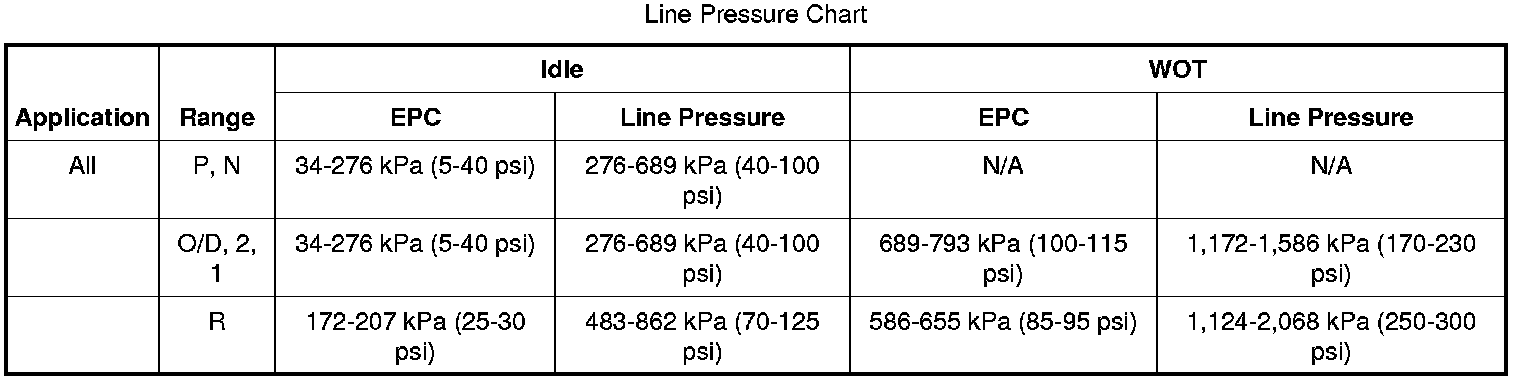

Line Pressure Chart:

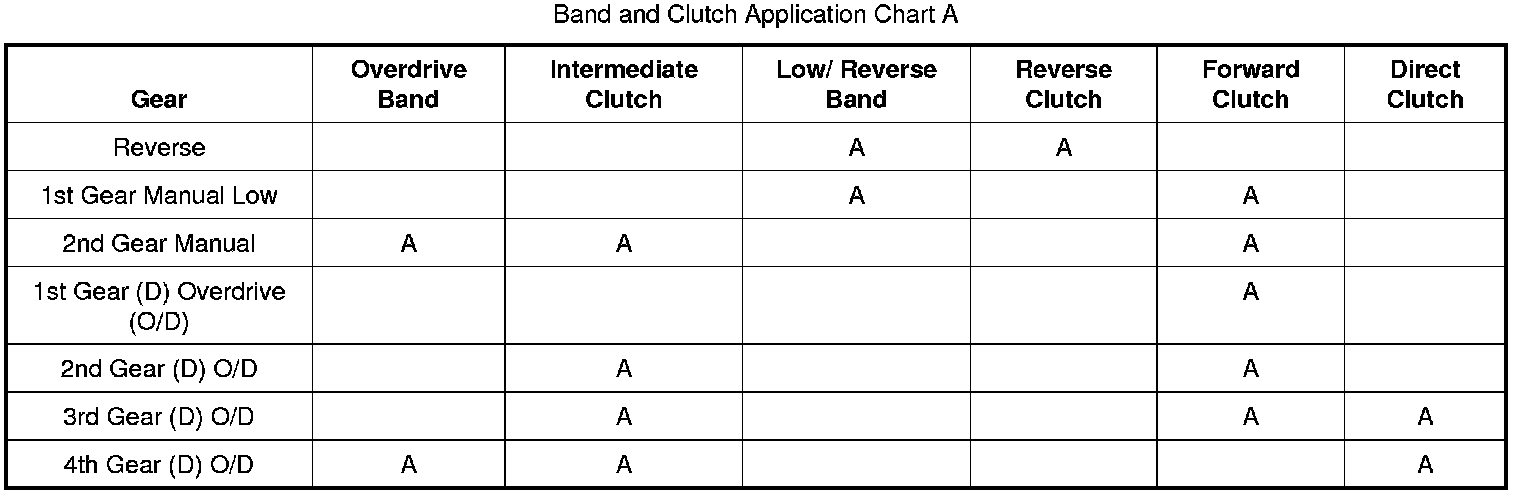

Band And Clutch Application Chart A:

A = Applied

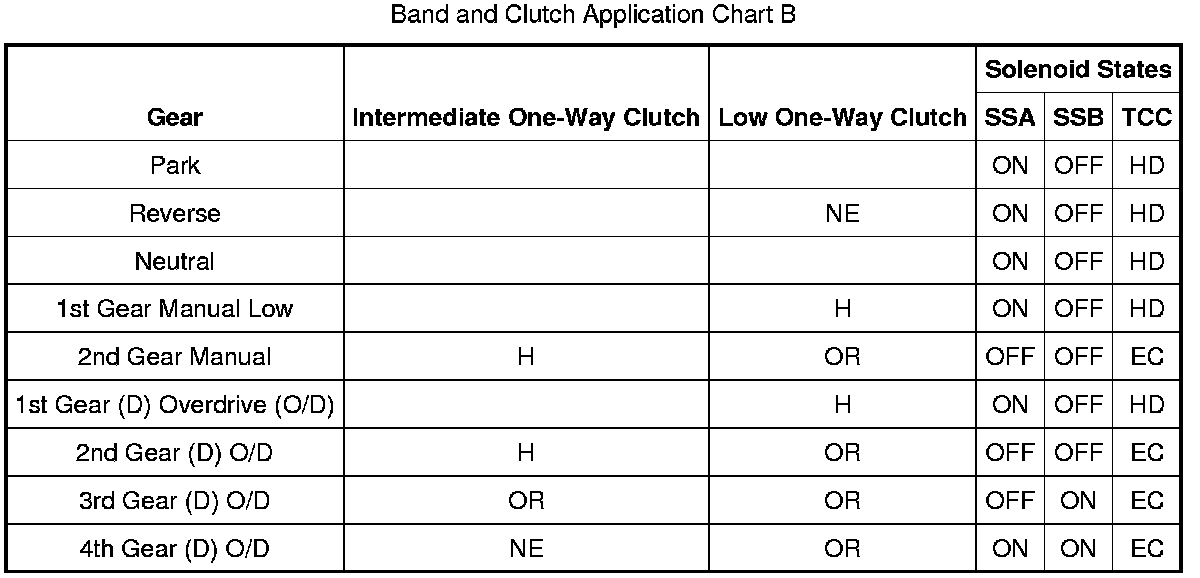

Band And Clutch Application Chart B:

HD = Hydraulically Disabled

NE = No Effect

H = Hold

EC = Electronically Controlled

OR = Overrunning

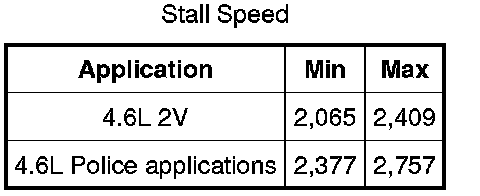

Stall Speed:

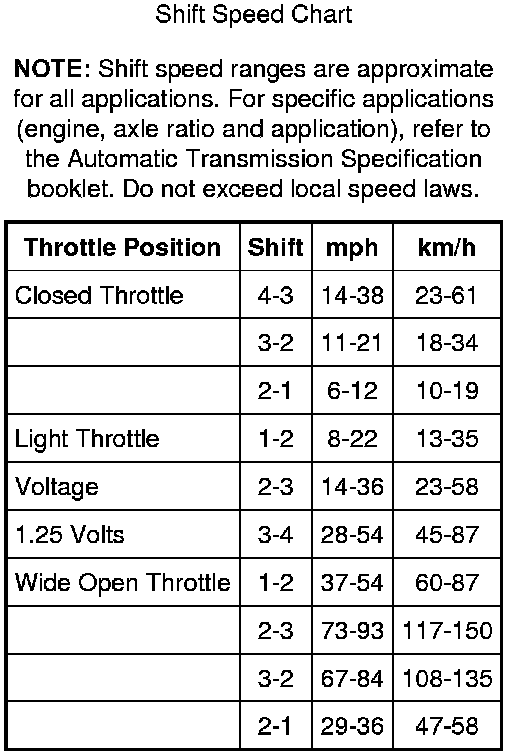

Shift Speed Chart:

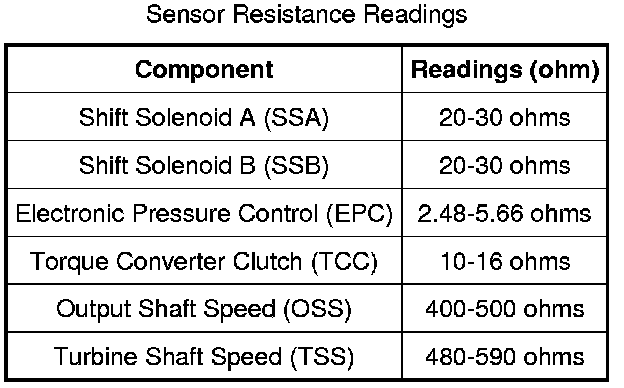

Sensor Resistance Readings:

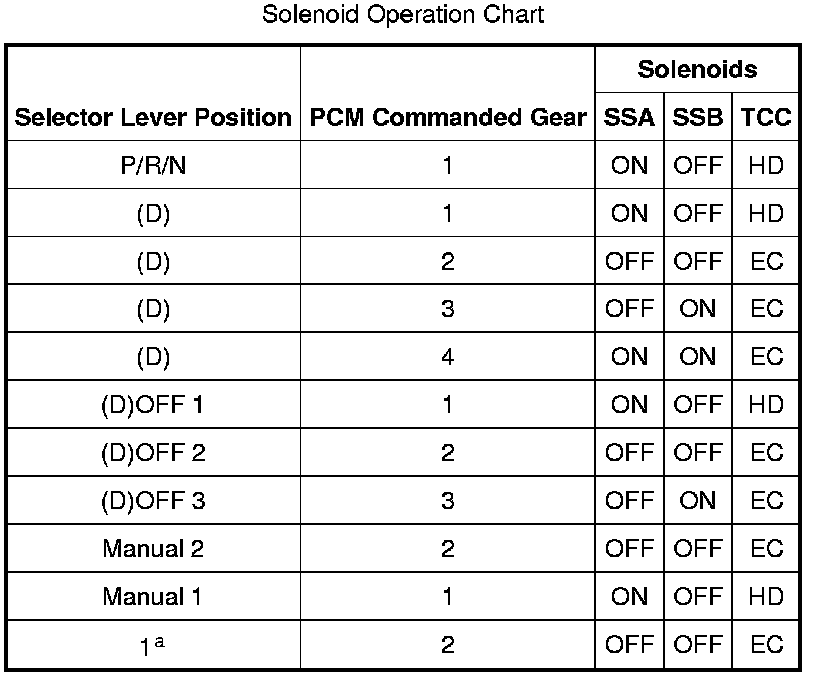

Solenoid Operation Chart:

a When a manual pull-in occurs above a calibrated speed, the transmission will not downshift from the higher gear until the vehicle speed drops below this calibrated speed.

EC = Electronically Controlled

HD = Hydraulically Disabled

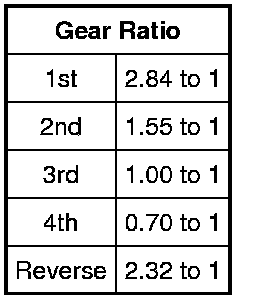

Gear Ratio:

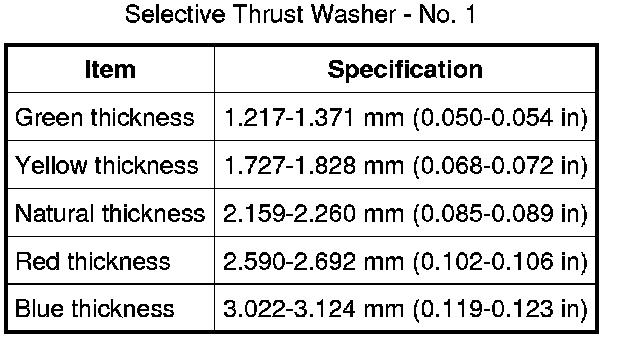

Selective Thrust Washer - No.1:

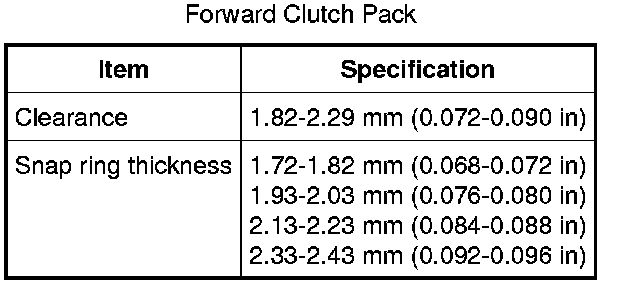

Forward Clutch Pack:

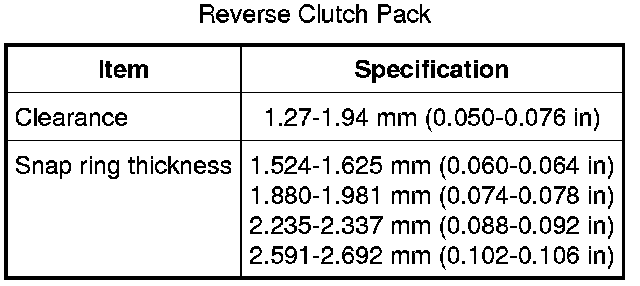

Reverse Clutch Pack:

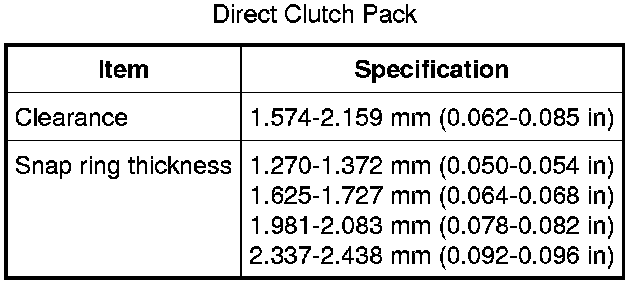

Direct Clutch Pack:

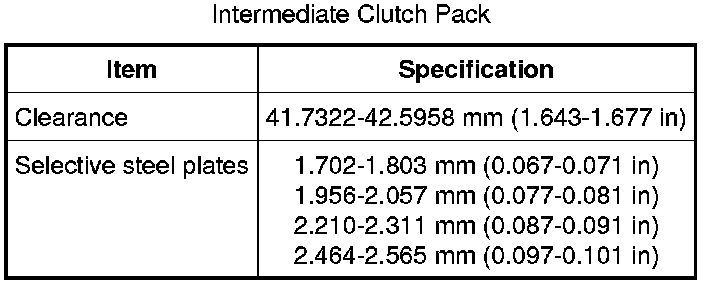

Intermediate Clutch Pack:
