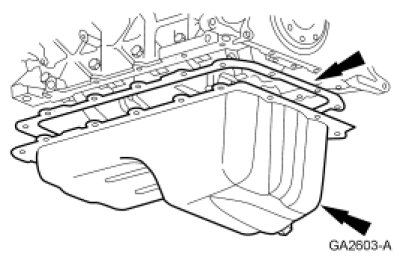

Oil Pan, Engine

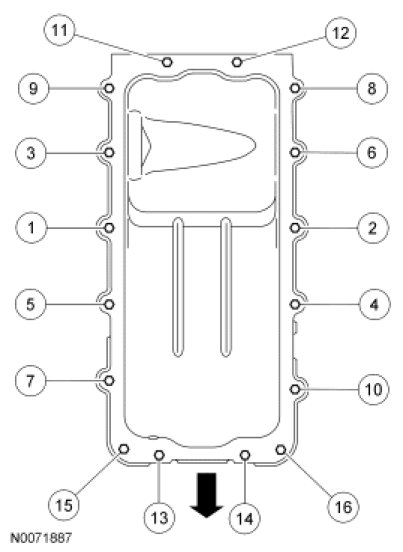

Tighten the 16 bolts in 2 stages, in the sequence shown.
Stage 1: Tighten to 20 Nm (177 lb-in).
Stage 2: Rotate an additional 60 degrees.
