System Specifications

TIMING CHAIN TENSIONER TORQUE & SEQUENCE:

LH and RH Tensioner Bolts 25 Nm (18 lb-ft)

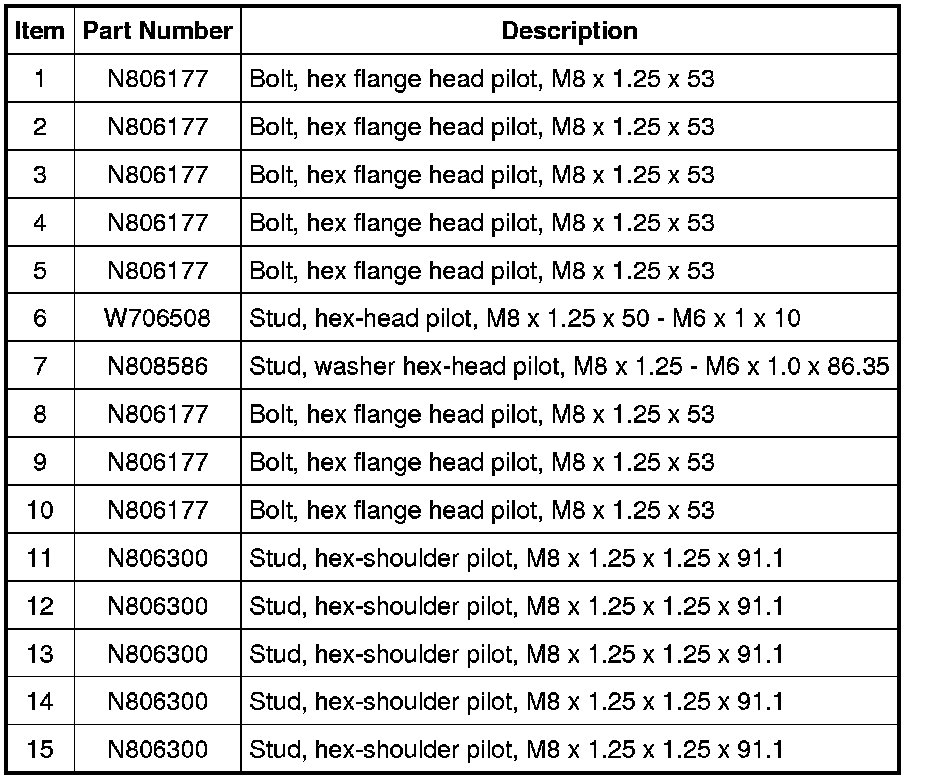

TIMING COVER TORQUE & SEQUENCE:

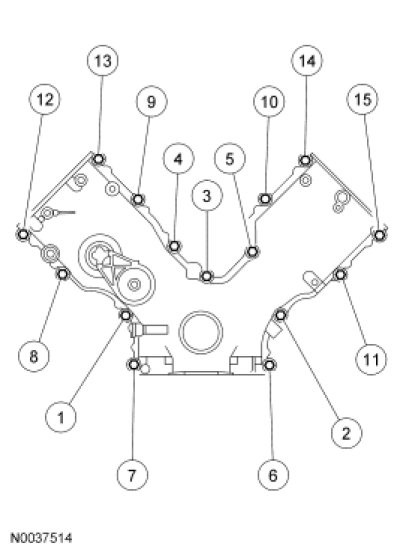

Tighten the front cover fasteners in the sequence shown to 25 Nm (18 lb-ft).









Tighten the 4 front oil pan bolts in 2 stages.
Stage 1: Tighten to 20 Nm (177 lb-in).
Stage 2: Tighten an additional 60 degrees.

CRANKSHAFT PULLEY TORQUE:

Install the bolt and washer and tighten the crankshaft pulley bolt in 4 stages.
Stage 1: Tighten to 120 Nm (89 lb-ft).
Stage 2: Loosen 360 degrees.
Stage 3: Tighten to 50 Nm (37 lb-ft).
Stage 4: Rotate an additional 90 degrees (one-quarter turn).
