Speed Control Deactivator Switch

Speed Control Deactivator Switch













Removal

1. NOTICE: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

NOTICE: Make sure the master cylinder reservoir cap is secure before performing this procedure.

NOTICE: Do not allow any foreign matter to enter the master cylinder port once the deactivator switch is removed.

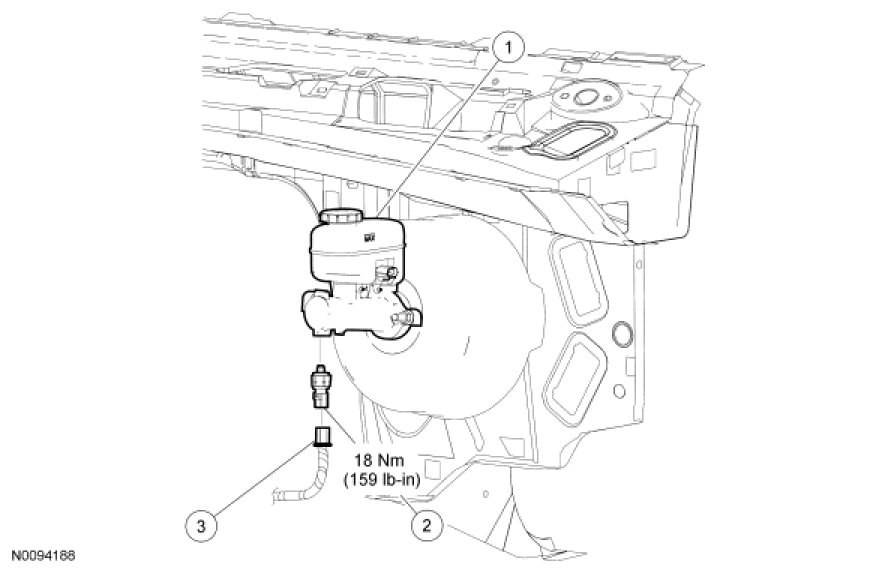

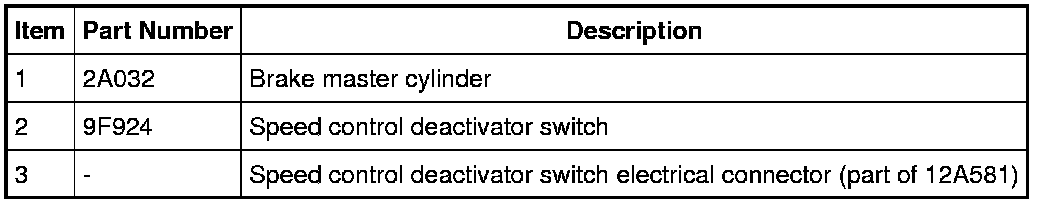

Remove the deactivator switch.
- Disconnect the electrical connector.

Installation

1. NOTICE: Do not allow brake fluid to contact the electrical connector.

Install the deactivator switch.

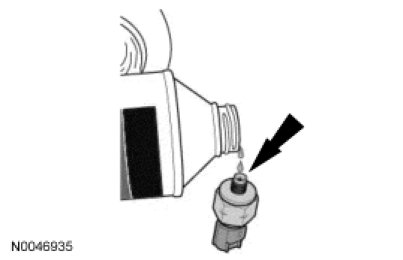

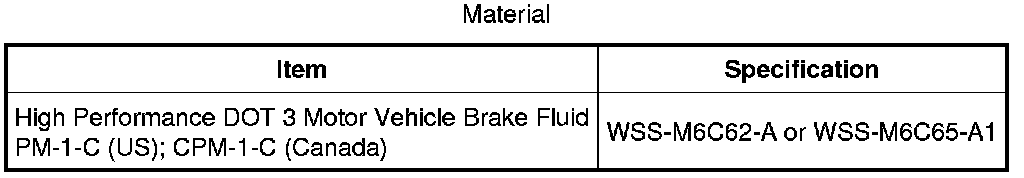

- Add a few drops of brake fluid to the fluid port on the threaded side of the switch before installing it.

- Tighten to 18 Nm (159 lb-in).

- Connect the electrical connector.





2. Check the master cylinder fluid level and adjust as necessary.
