Speed Control Switch




Speed Control Switch









Removal and Installation

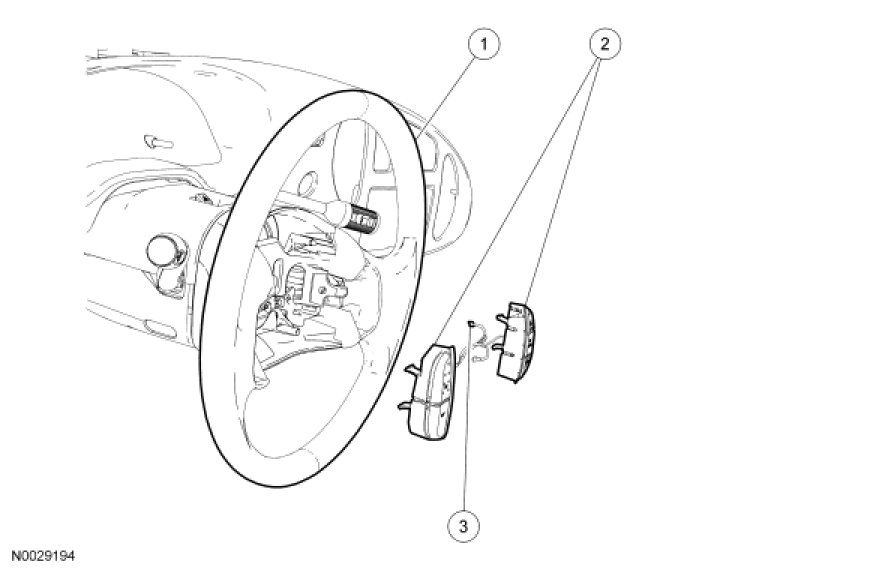

1. Remove the driver air bag module. For additional information, refer to Air Bag Systems.

2. Remove the speed control switches.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
