Knock Sensor: Service and Repair

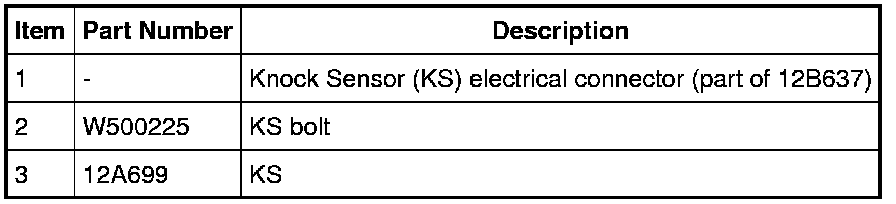

Knock Sensor (KS)

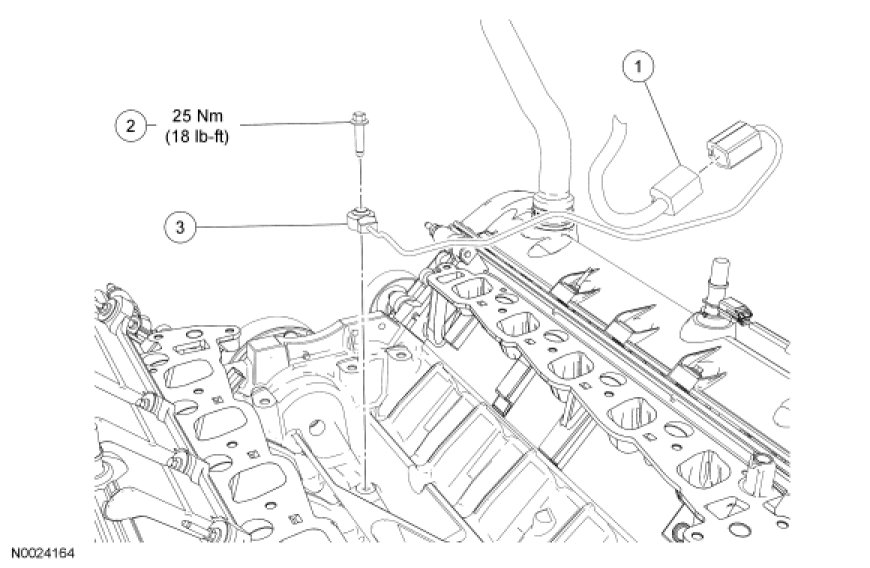

NOTE: 6.8L shown, 4.6L and 5.4L similar.










Removal and Installation

1. Remove the intake manifold.

2. Disconnect the Knock Sensor (KS) electrical connector.

3. Remove the bolt and the KS.
- To install, tighten to 25 Nm (18 lb-ft).

4. To install, reverse the removal procedure.
