Home >> Ford >> 2009 >> E 150 V8-5.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> TorqShift
April 5, 2026: LEMON Manuals is launched! Read the announcement.

TorqShift




Transmission

Transmission, Disassembled View

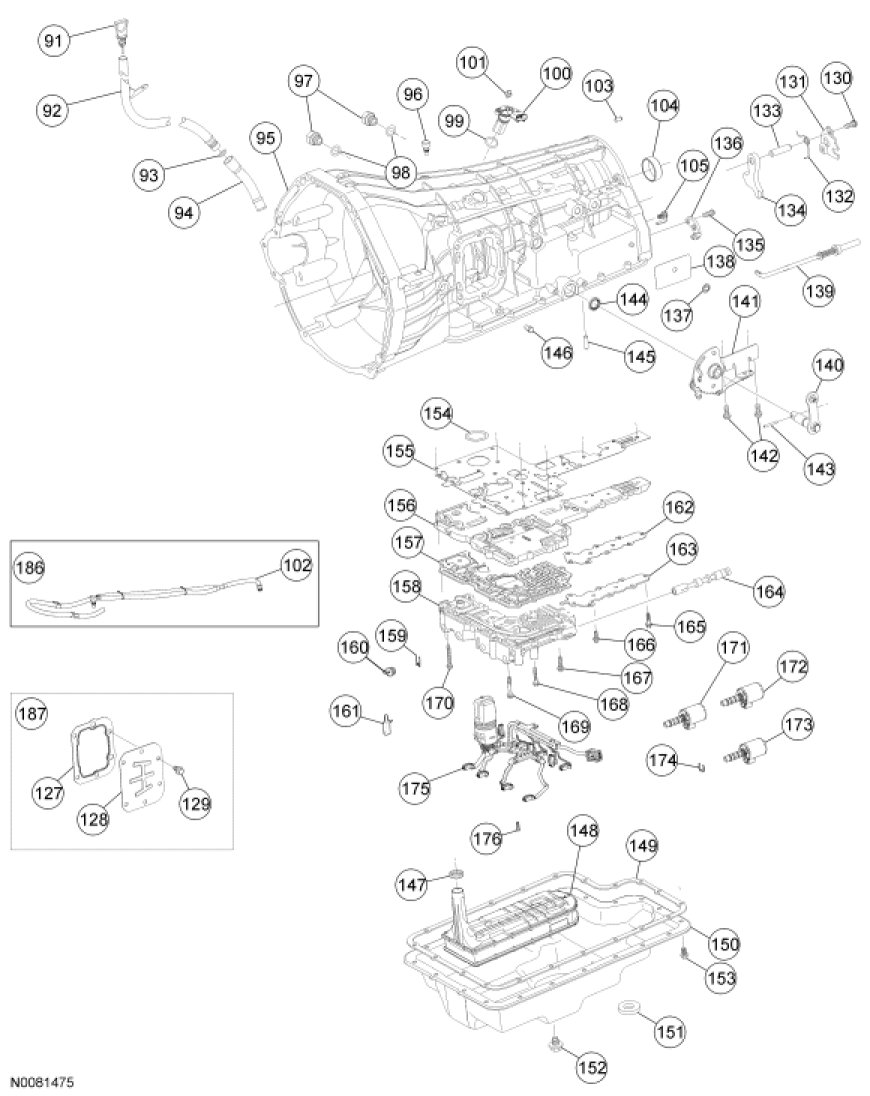

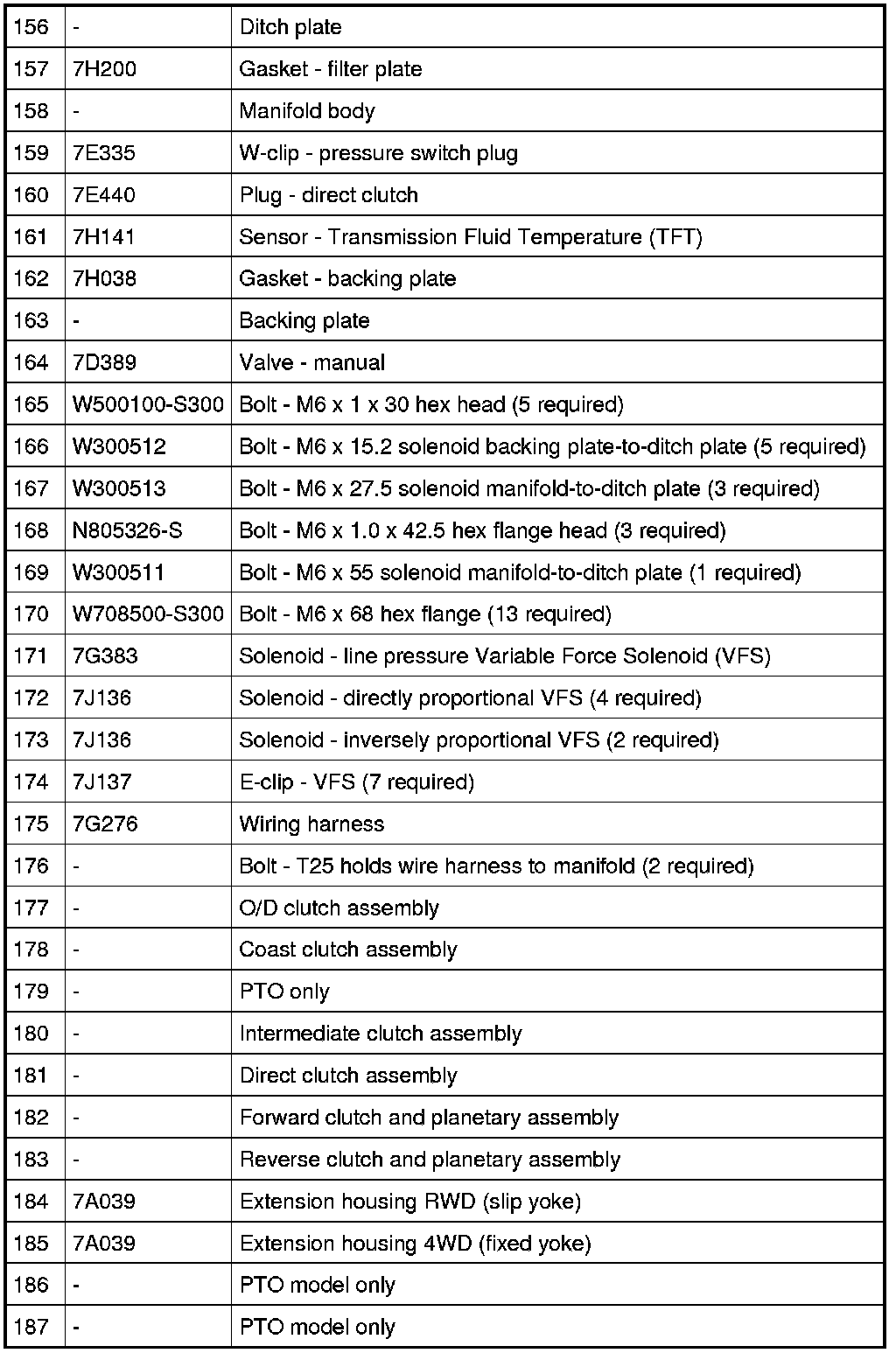

Transmission, Disassembled View (Part 1):

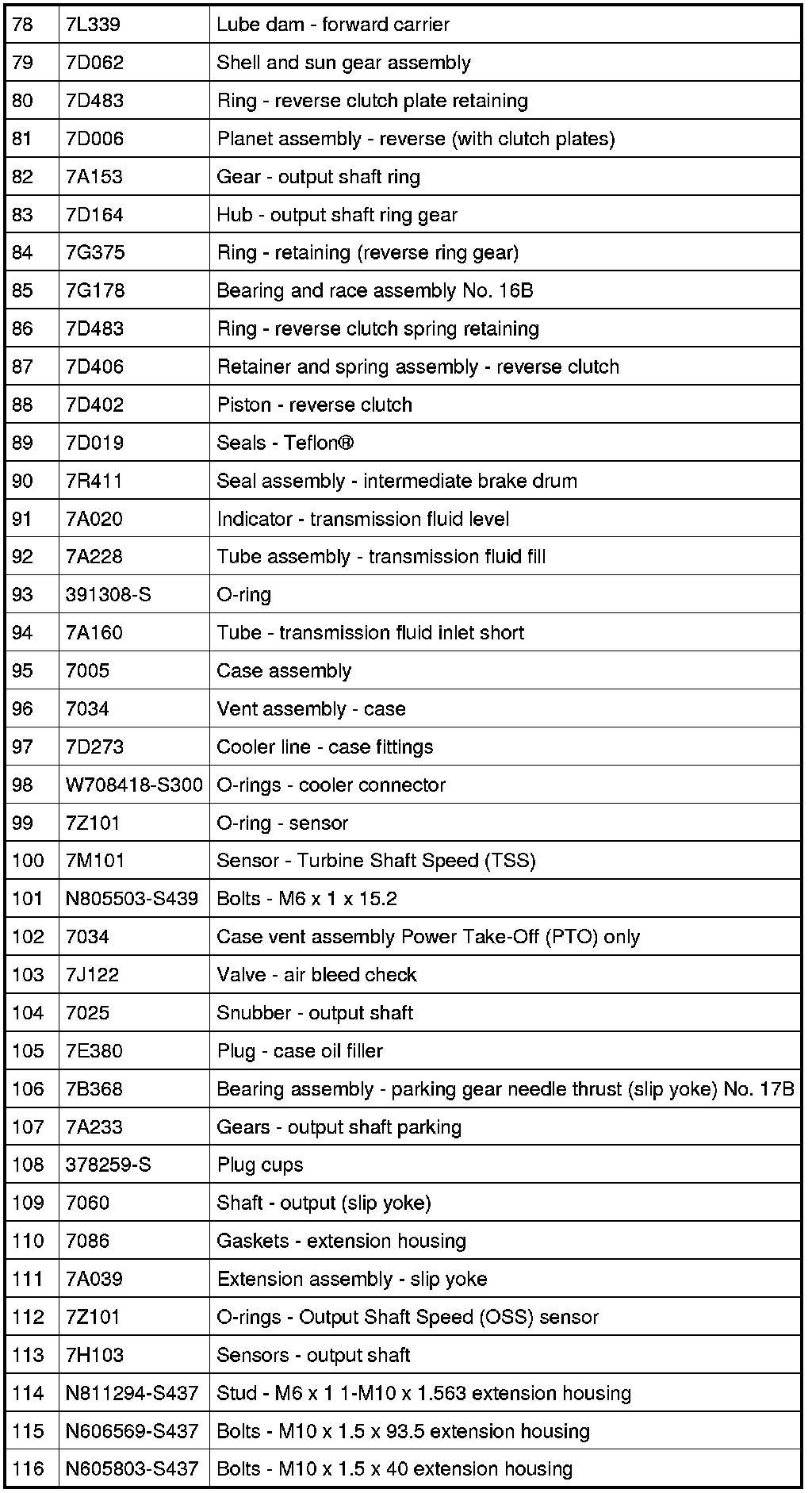

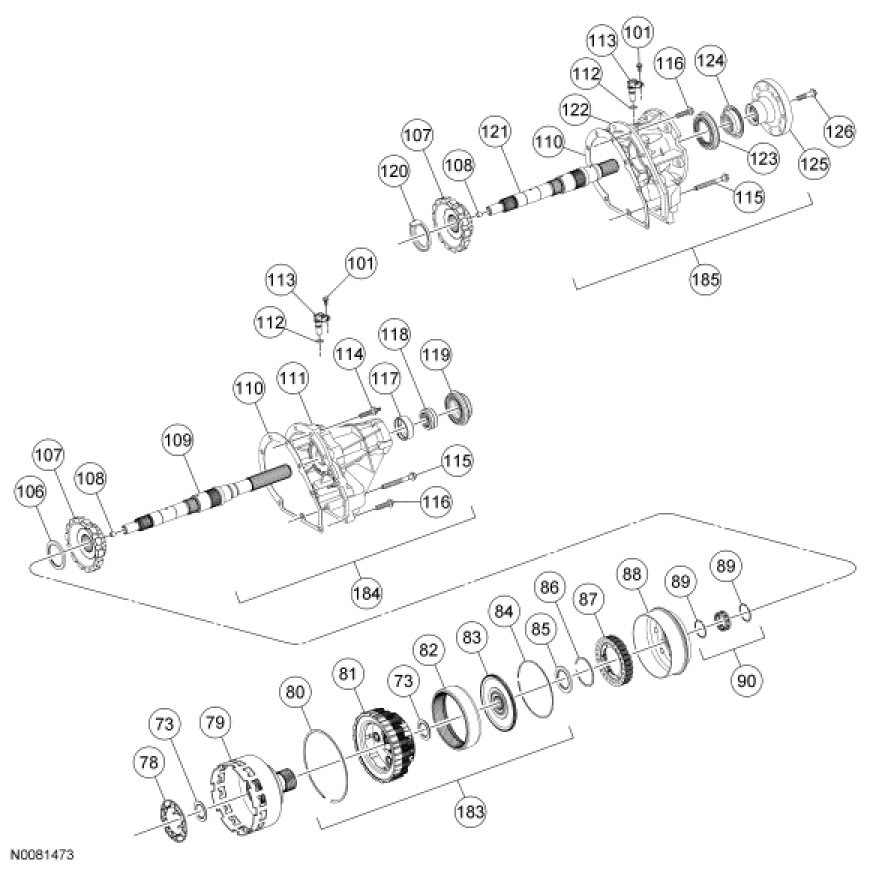

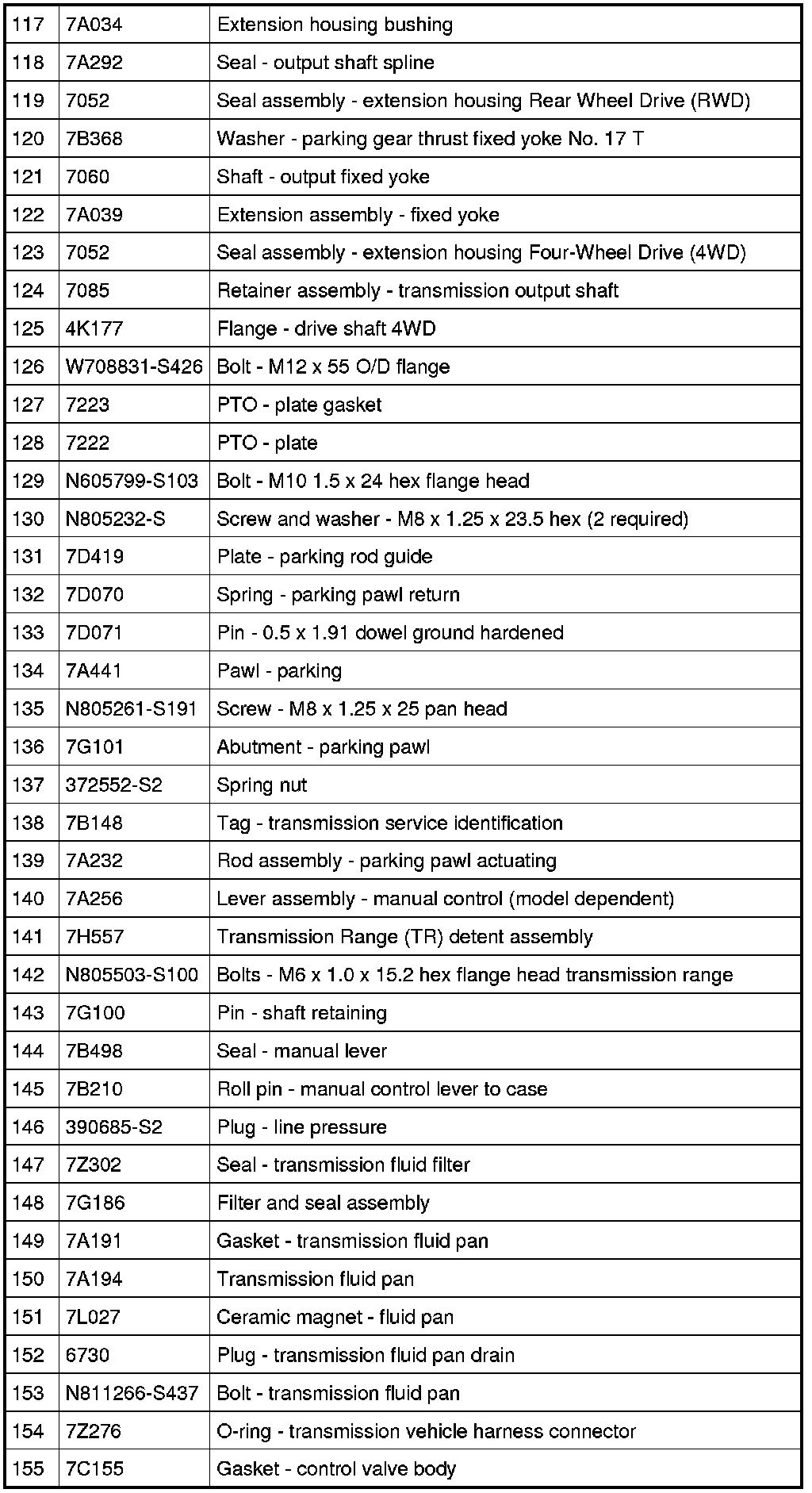

Transmission, Disassembled View (Part 2):

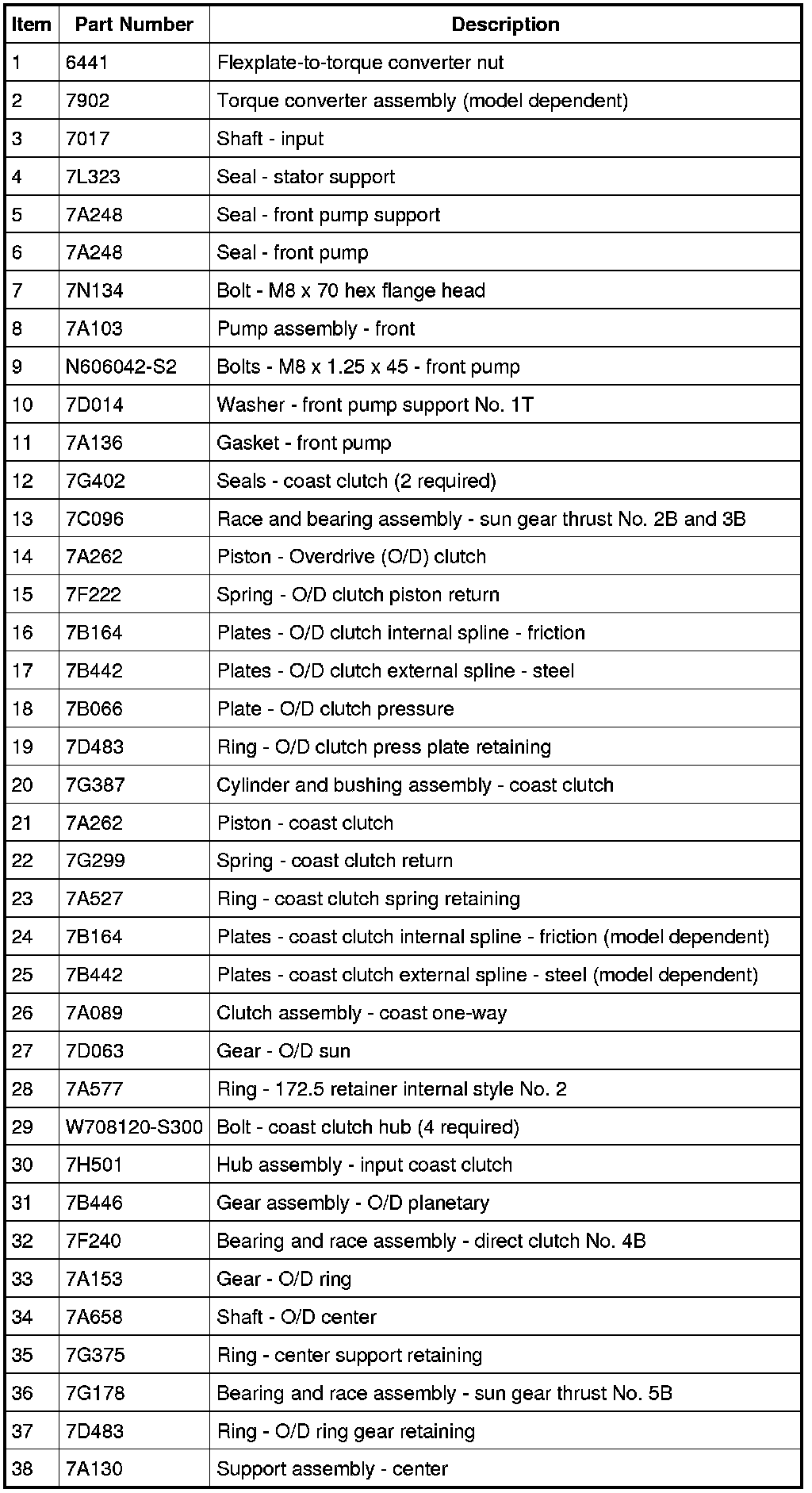

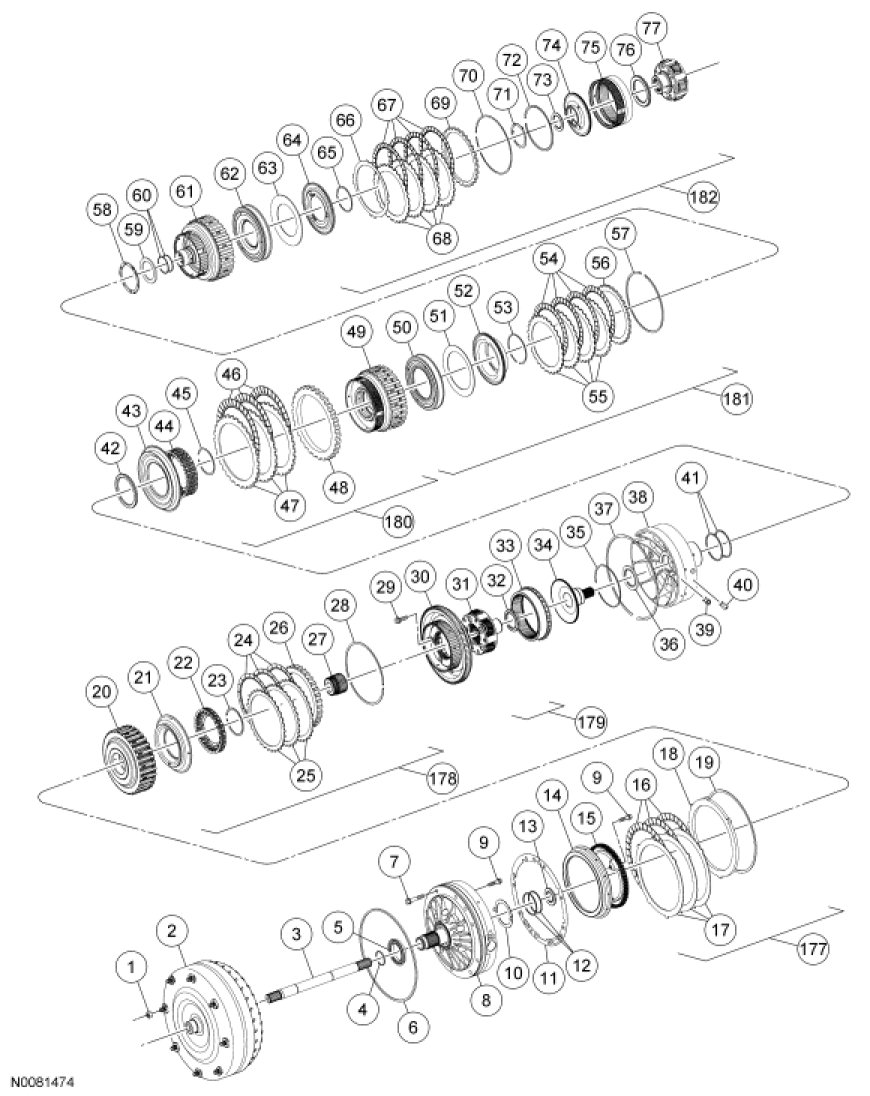

Transmission, Disassembled View (Part 3):
