Valve Body, A/T




4R70E/4R75E TRANSMISSION

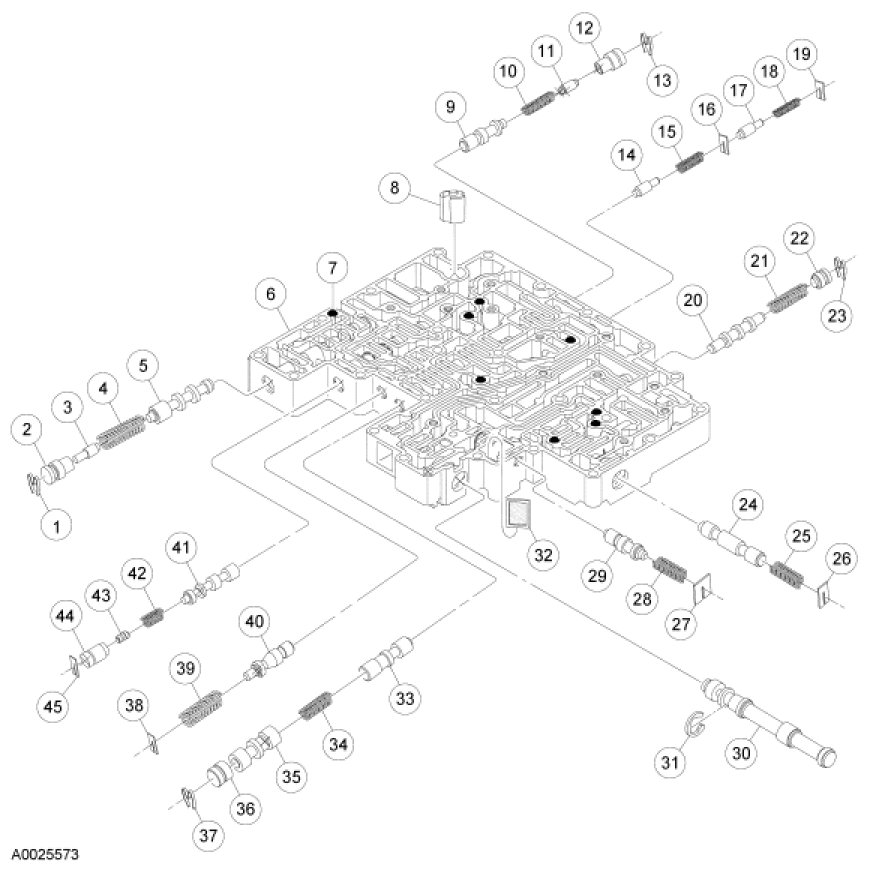

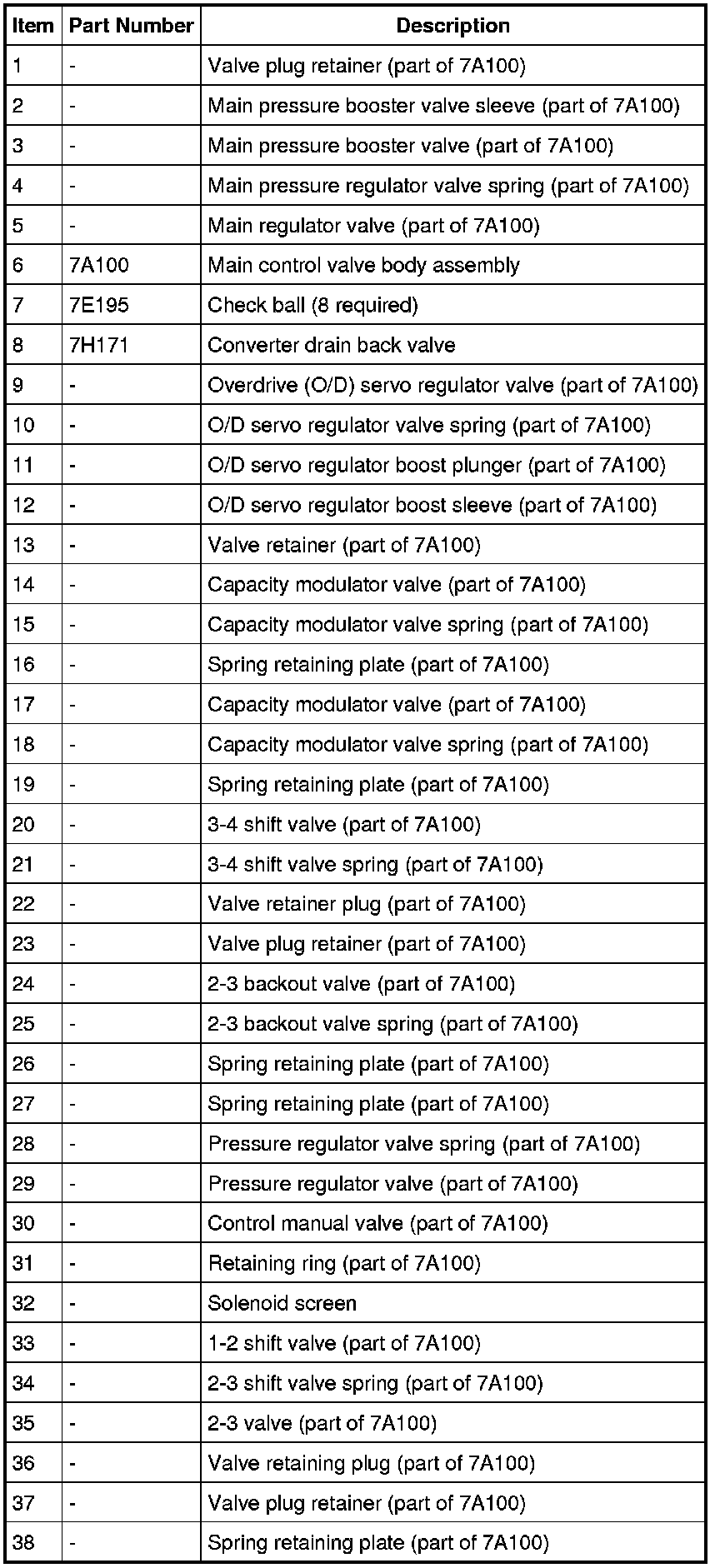

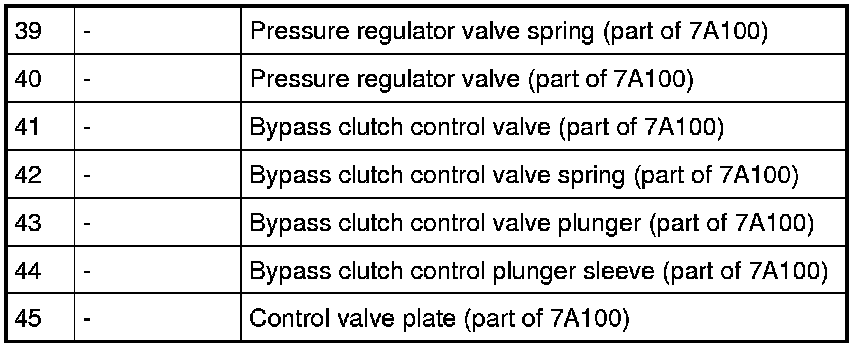

Main Control Valve Body - Disassembled View

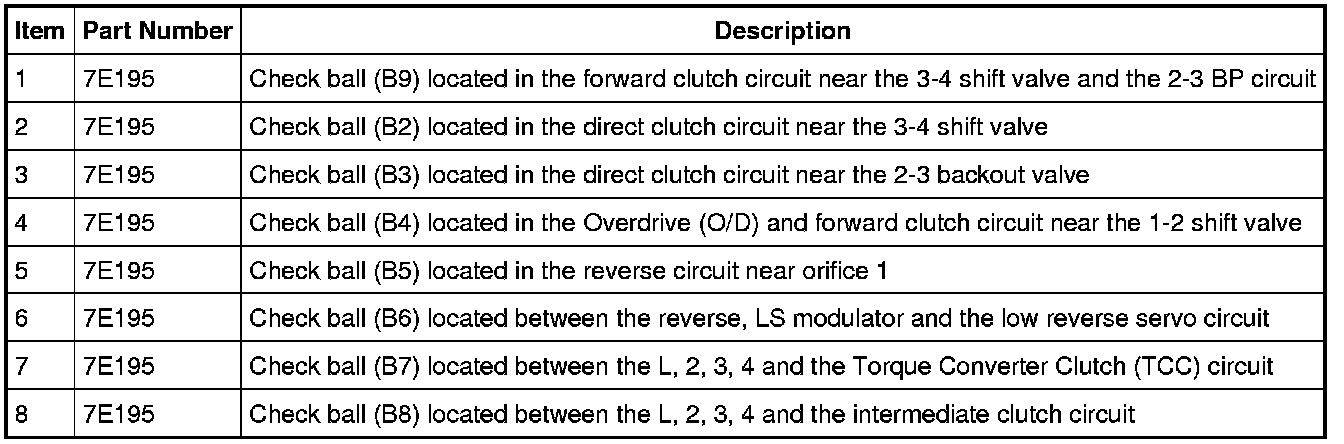

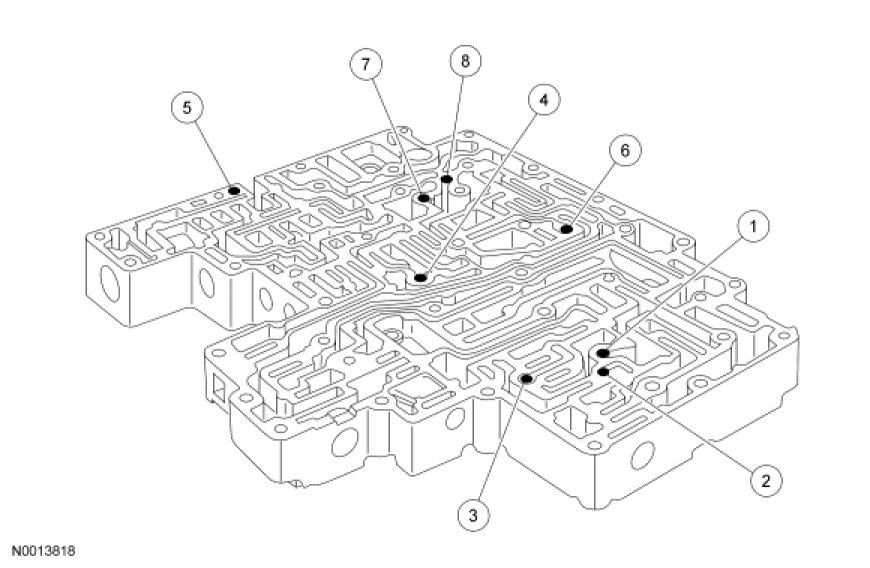

NOTE: Note the location of the 8 coasting booster valve shuttle balls.
