Connector Locations

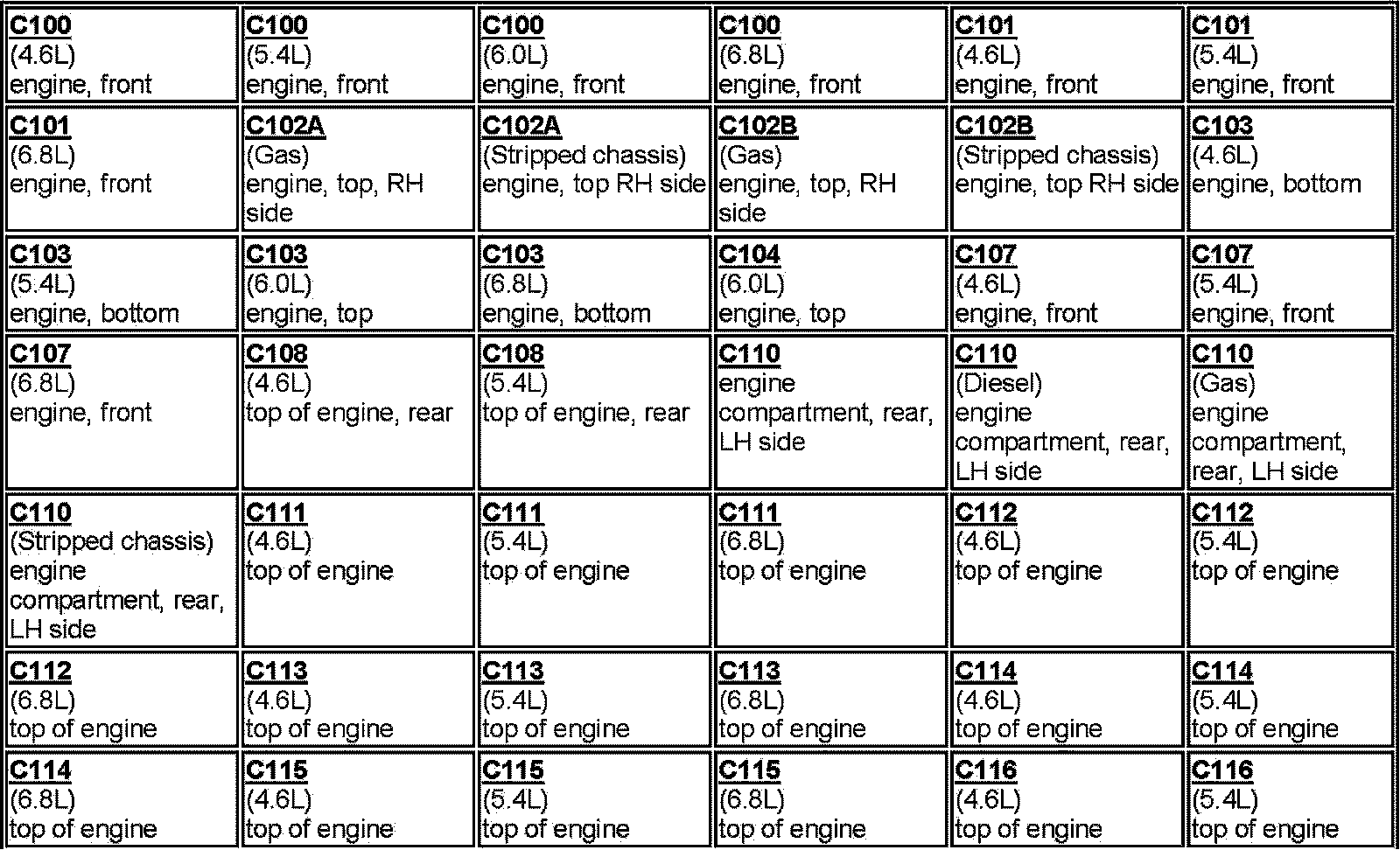

C100-C116:

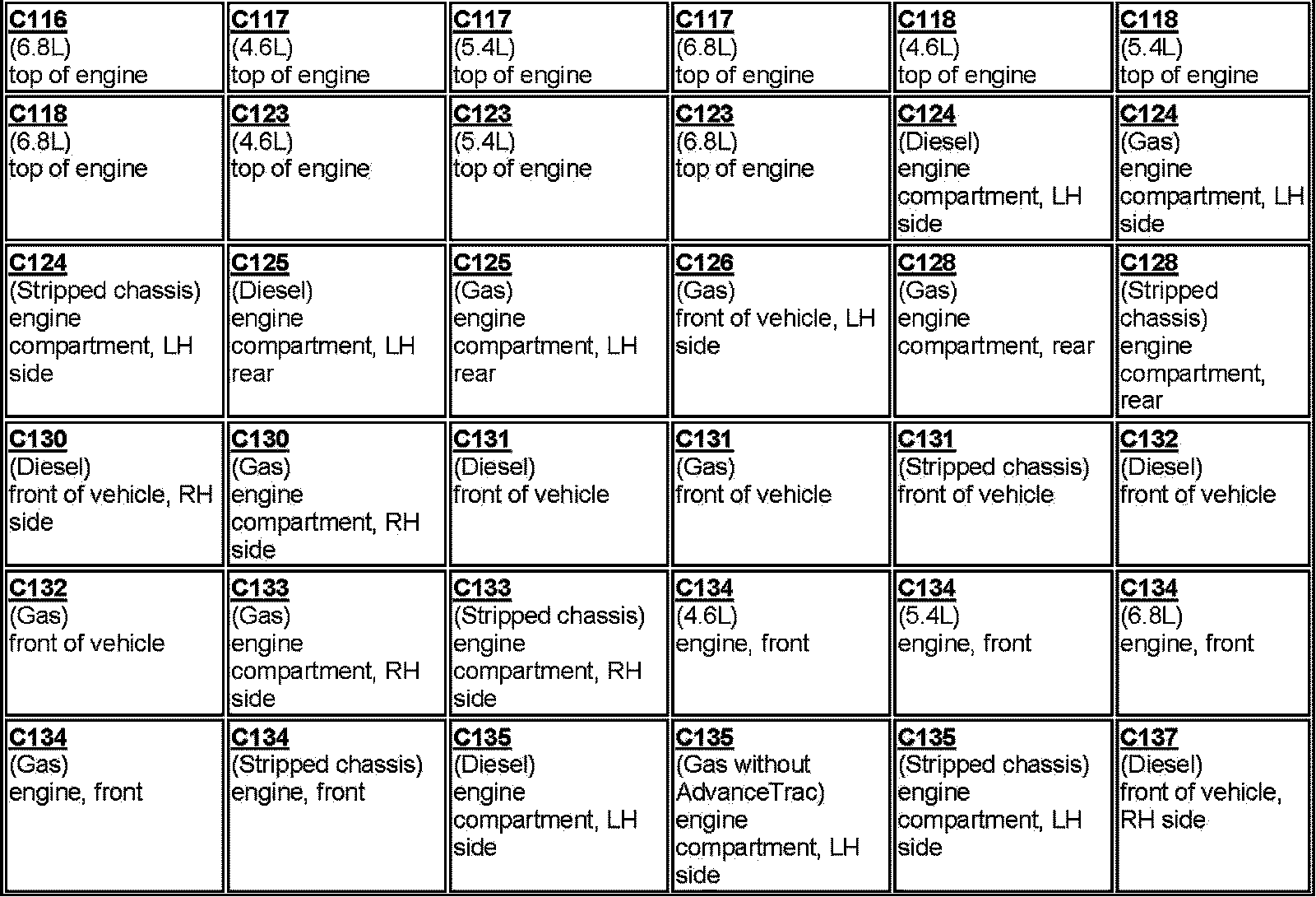

C116-C137:

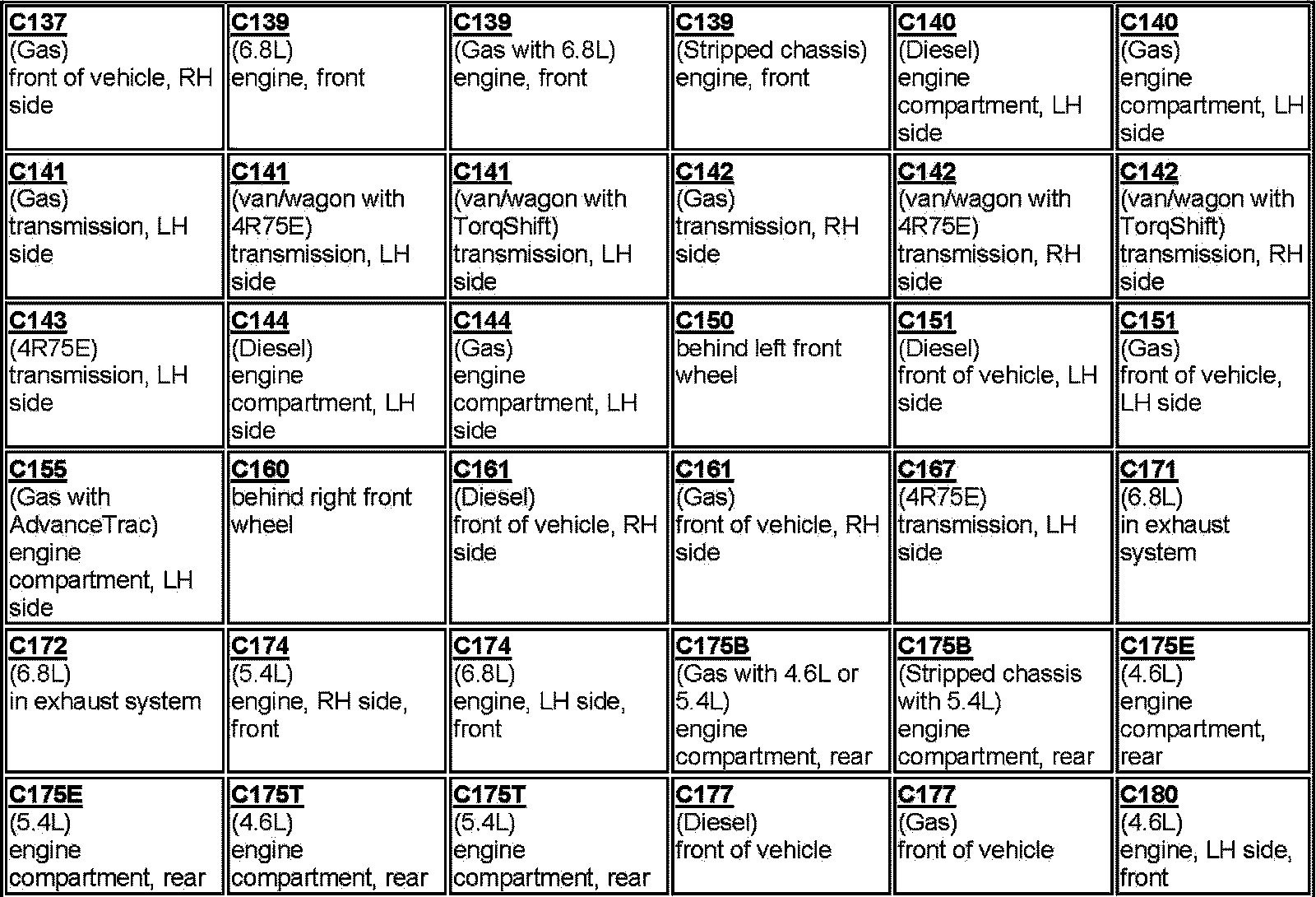

C137-C180:

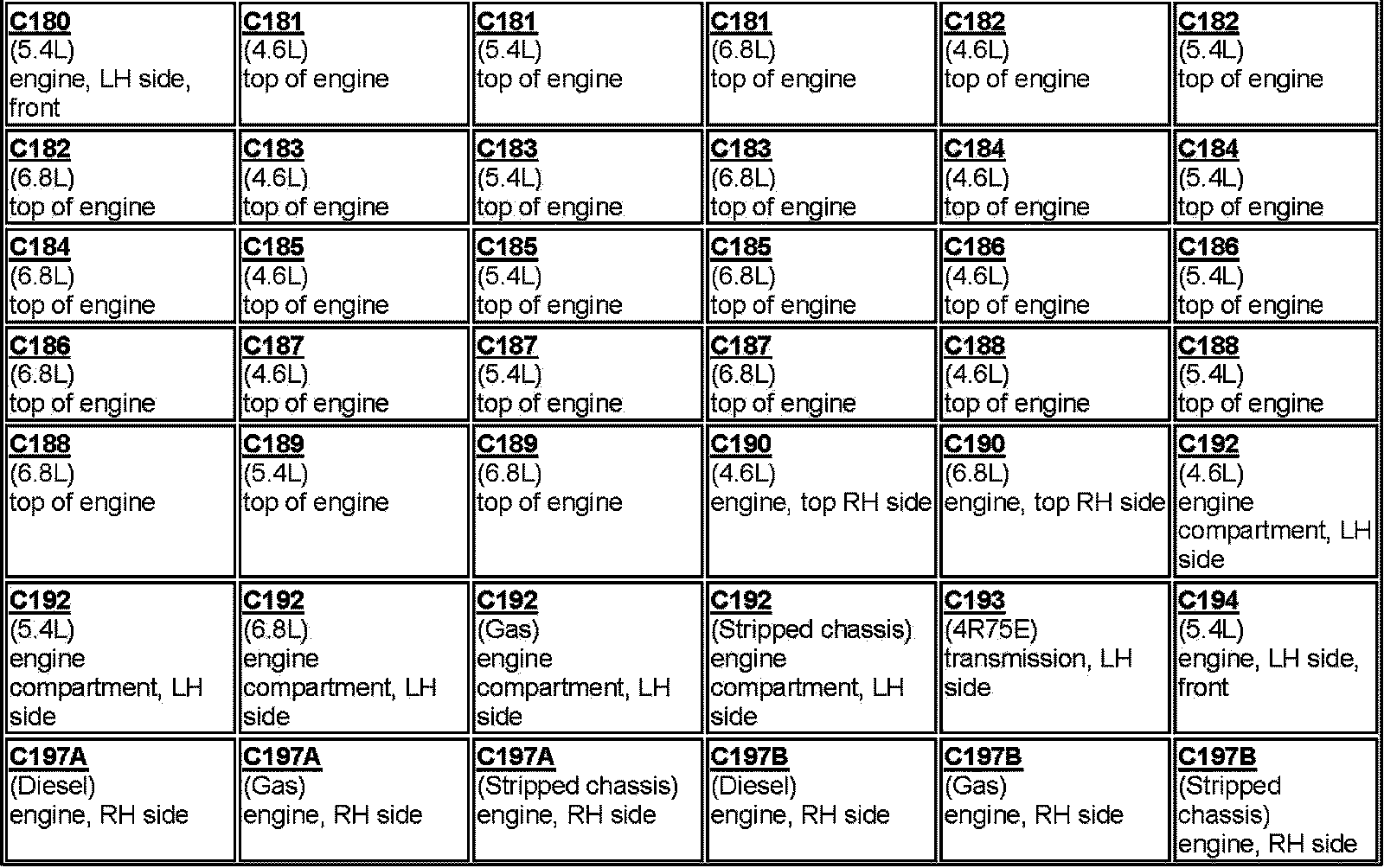

C180-C197B:

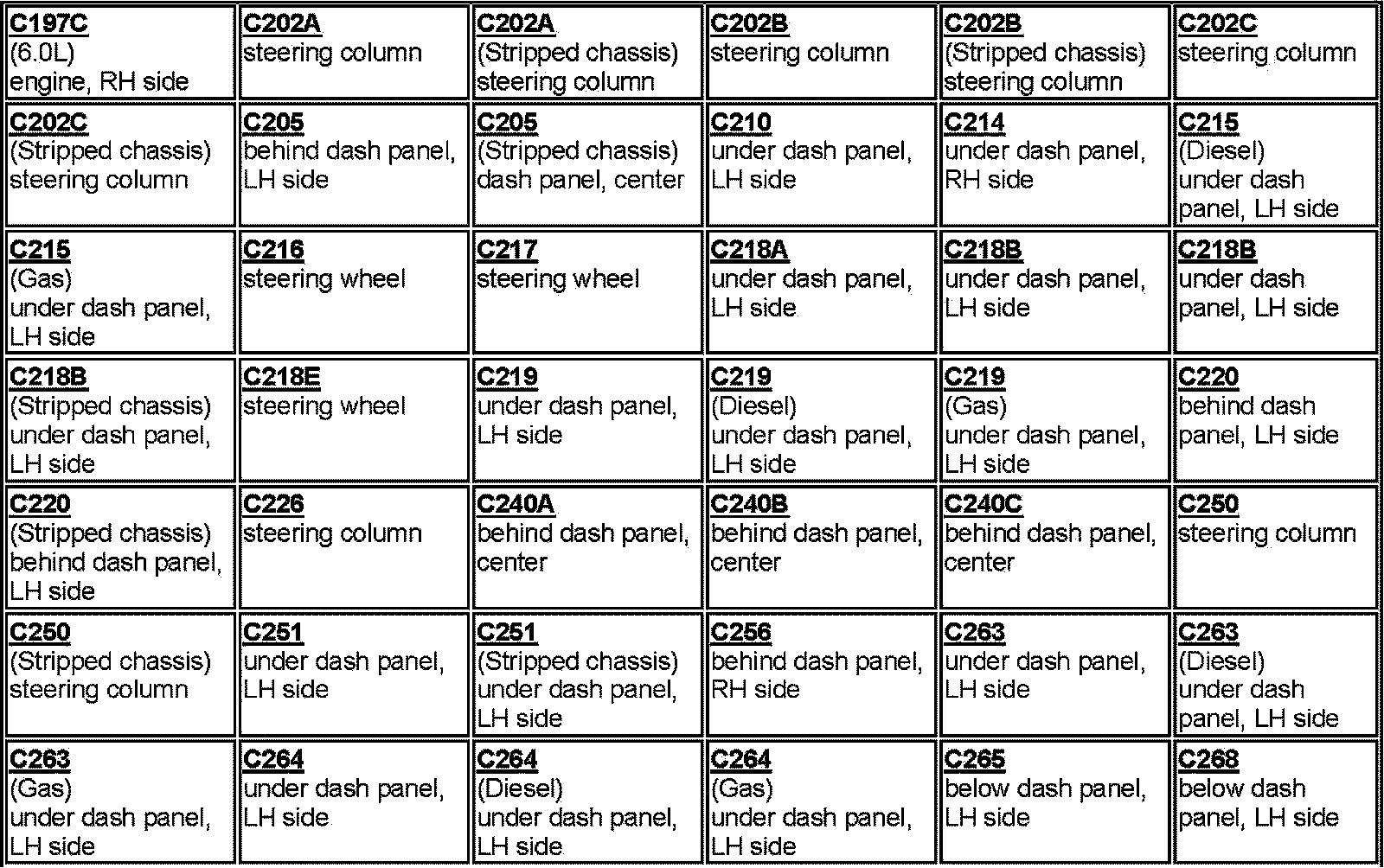

C197C-C268:

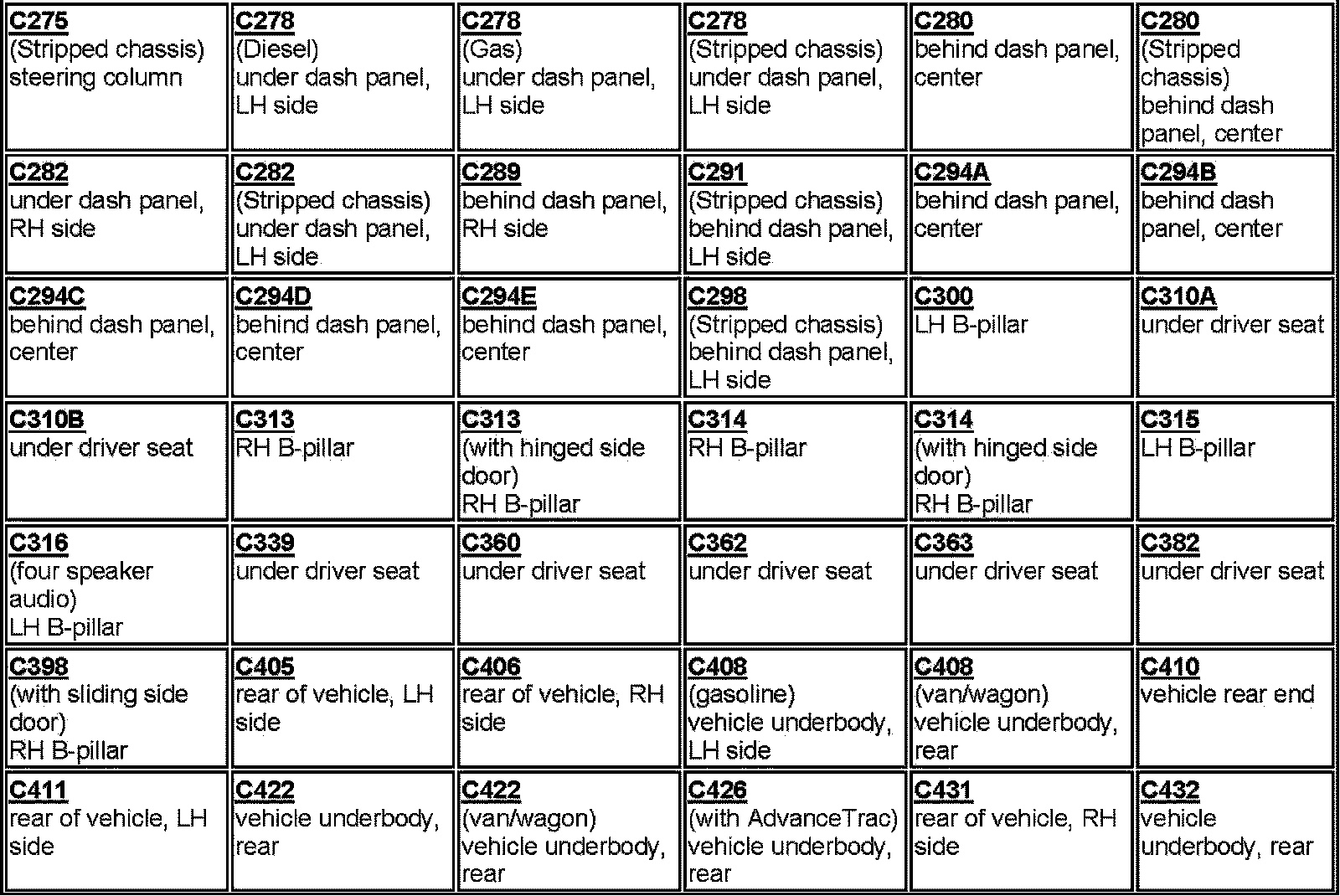

C275-C432:

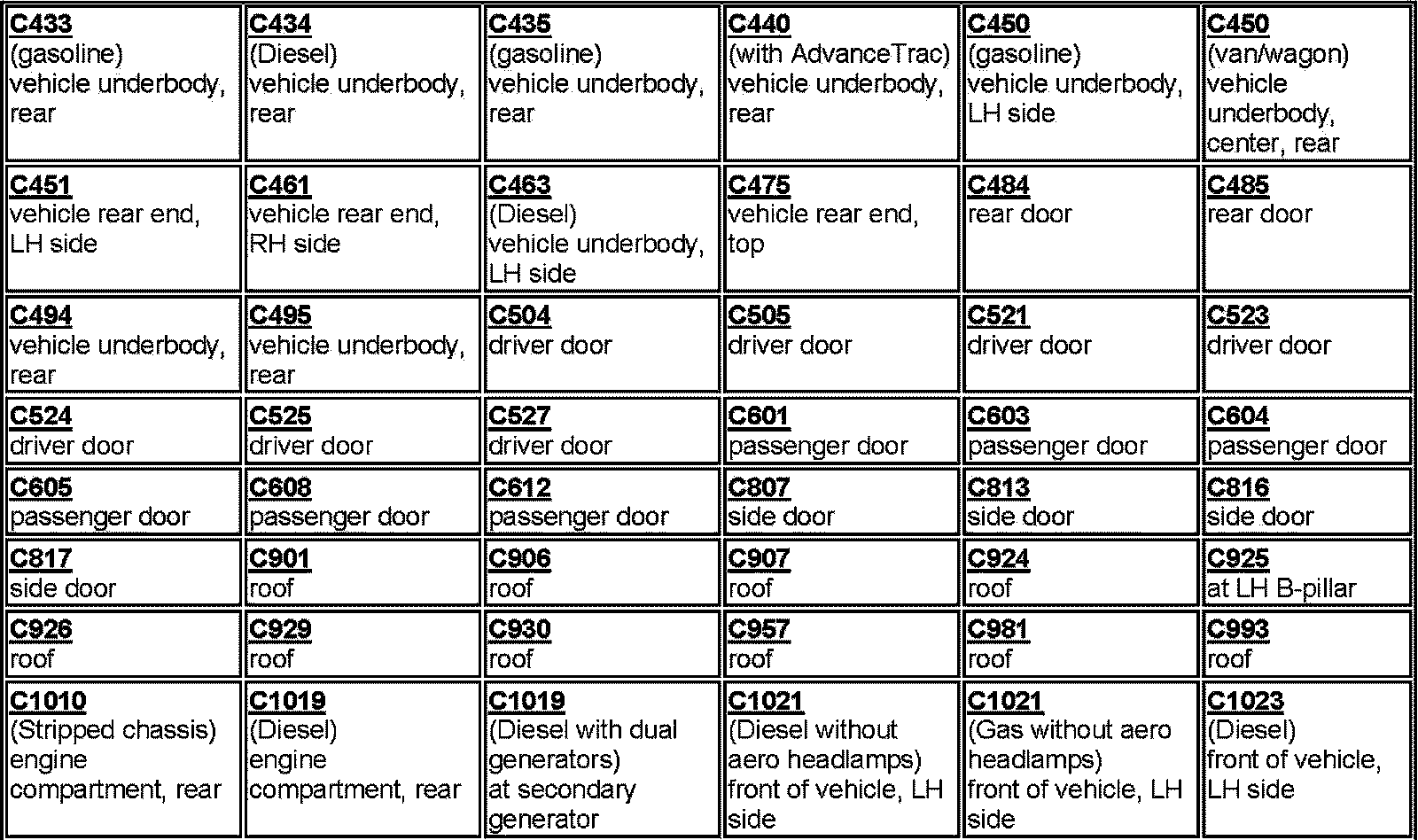

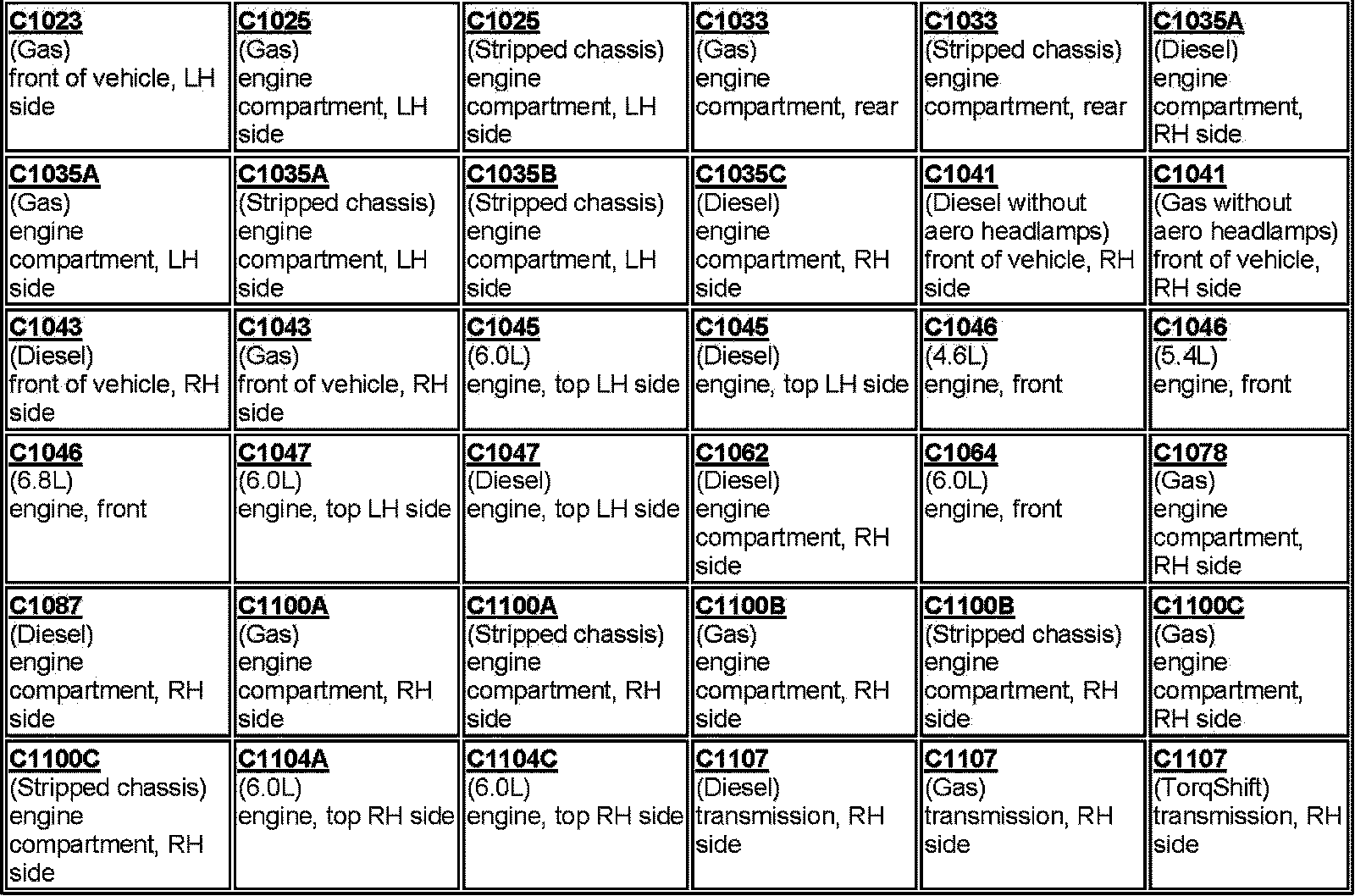

C433-C1023:





C1023-C1107:

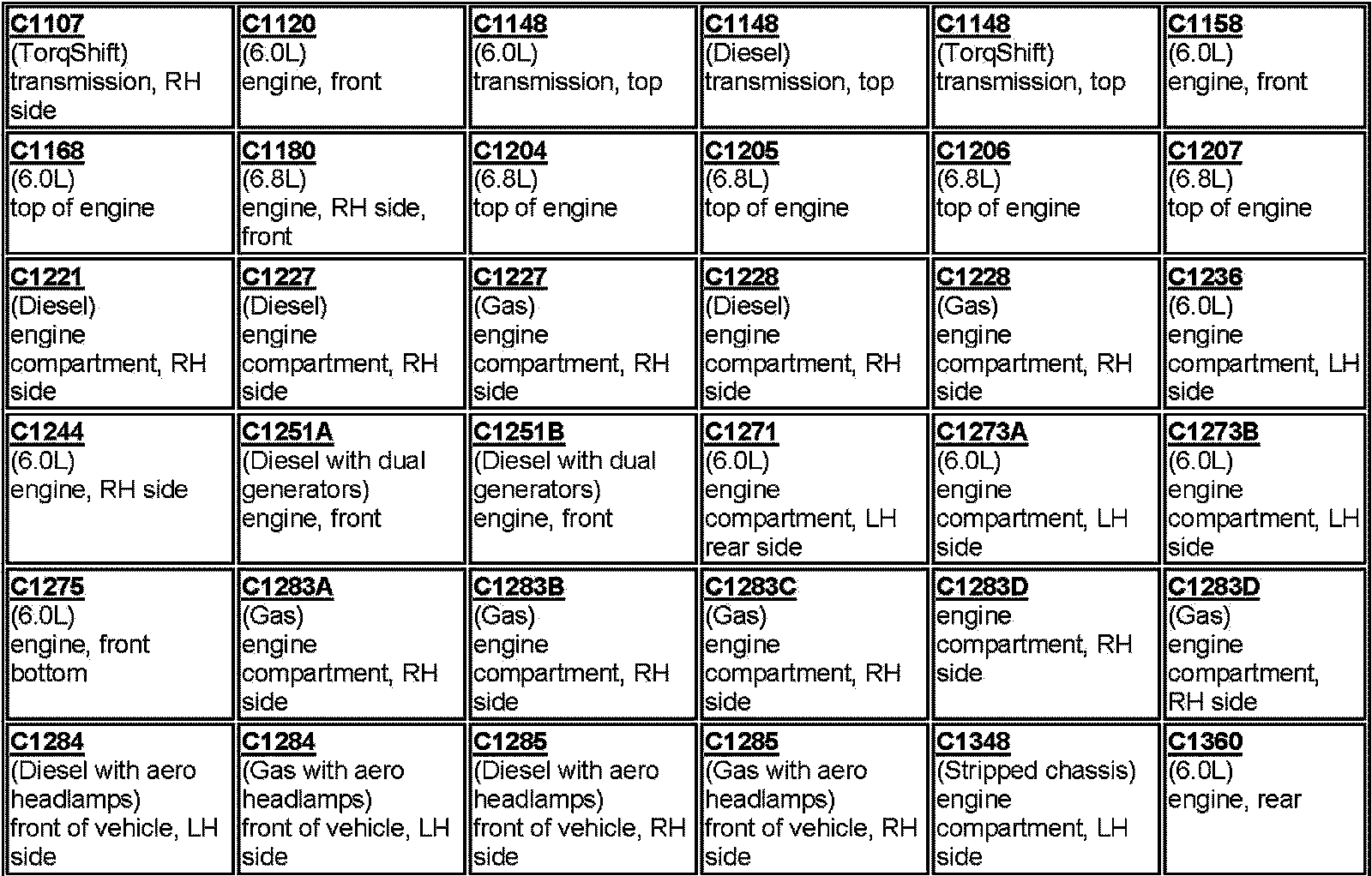

C1107-C1360:

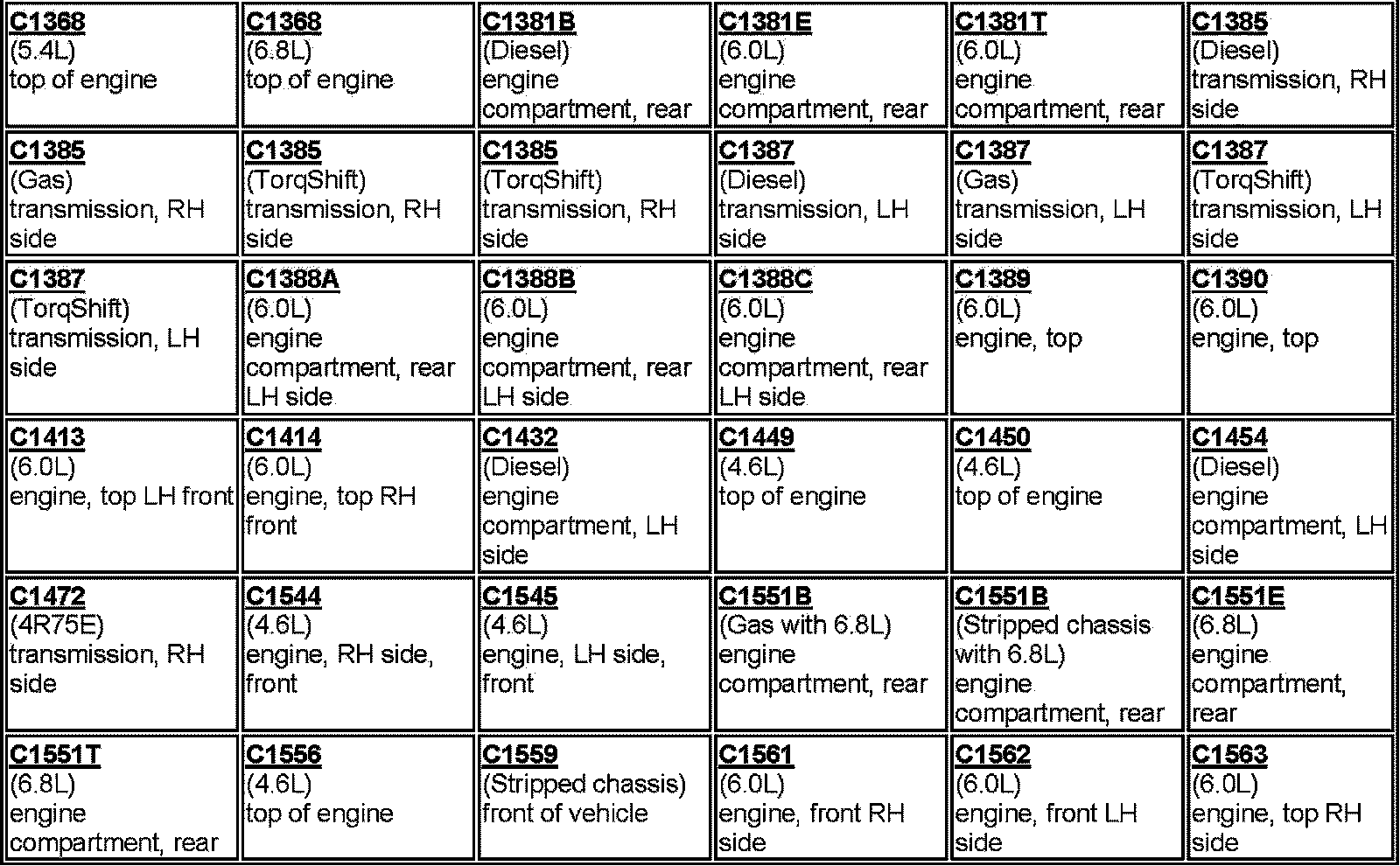

C1368-C1563:

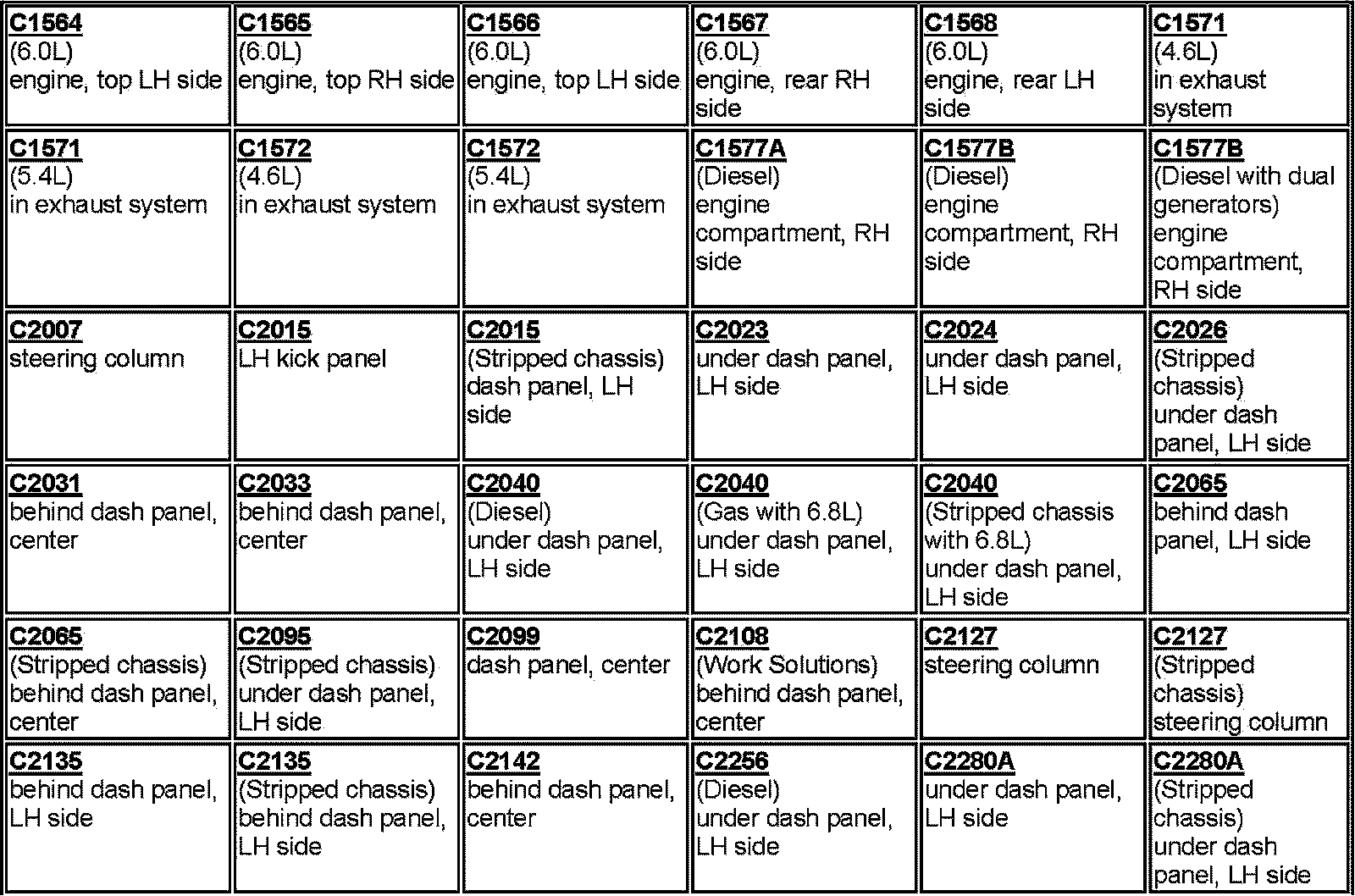

C1564-C2280A:

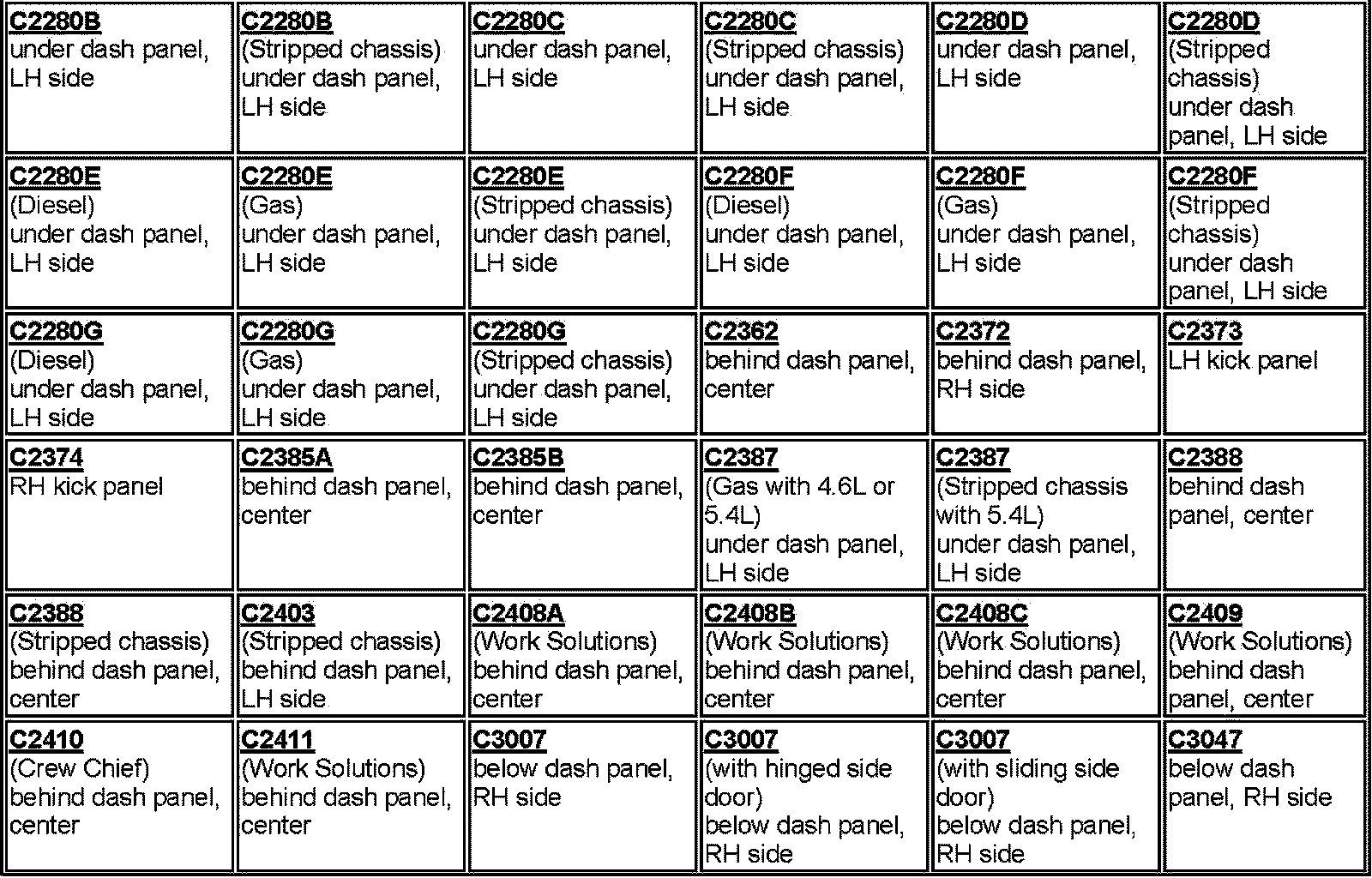

C2280B-C3047:

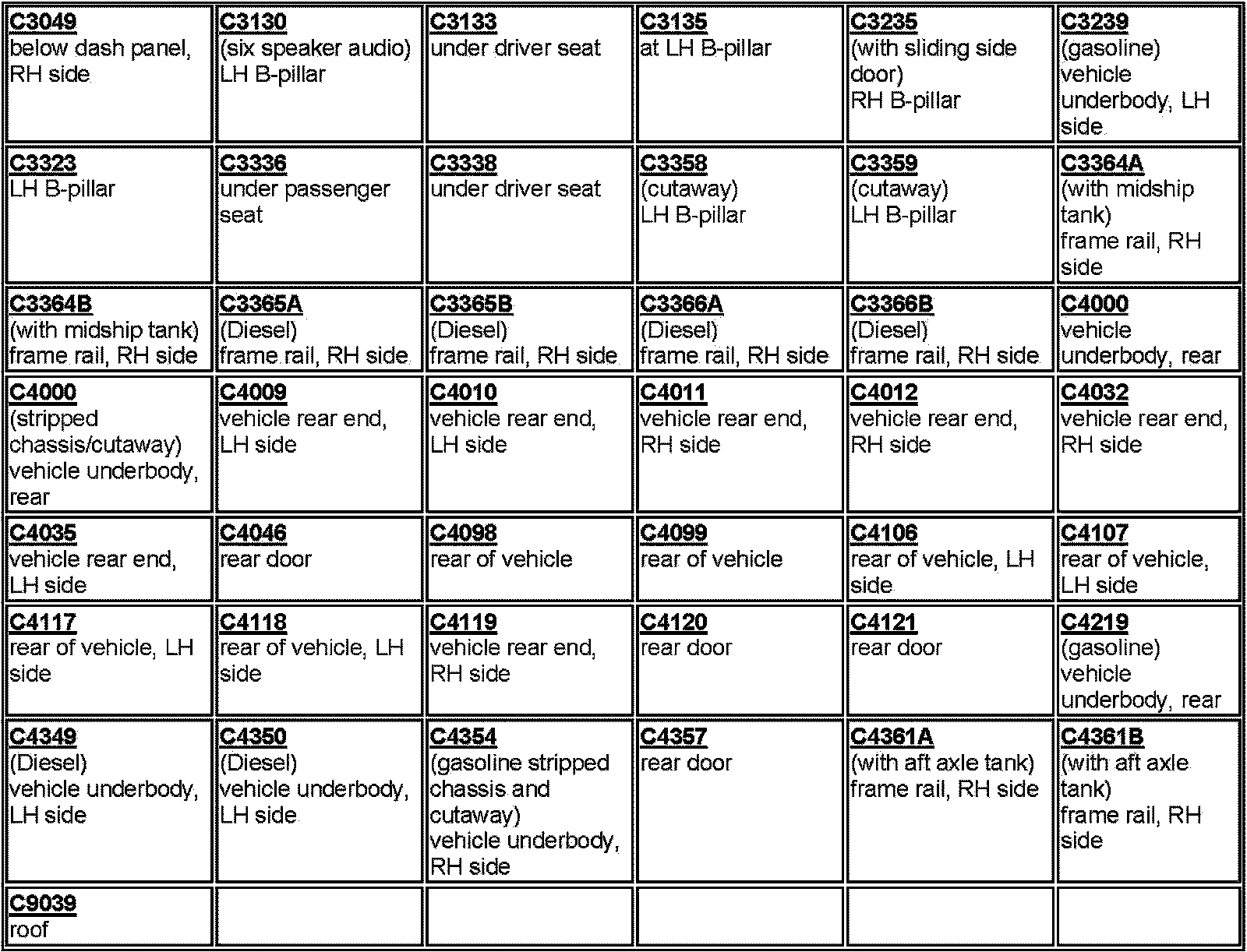

C3049-C9039:
