Intake Manifold

Note: The thermostat housing bolts are tightened in sequence with the intake manifold bolts.

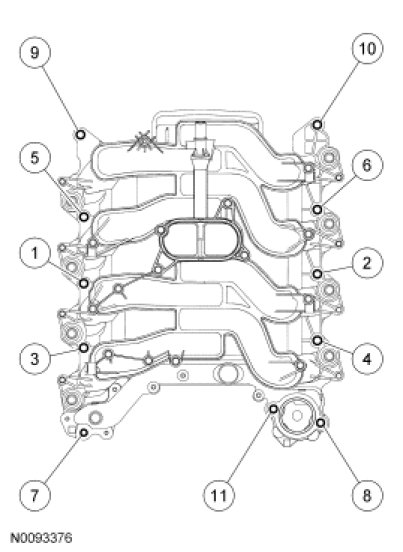

Tighten the 11 bolts in 2 stages in the sequence shown.
Stage 1: Tighten to 2 Nm (18 lb-in).
Stage 2: Tighten to 25 Nm (18 lb-in).
