Fuel Level Sensor: Service and Repair

Fuel Tank and Filler Pipe - Exploded View

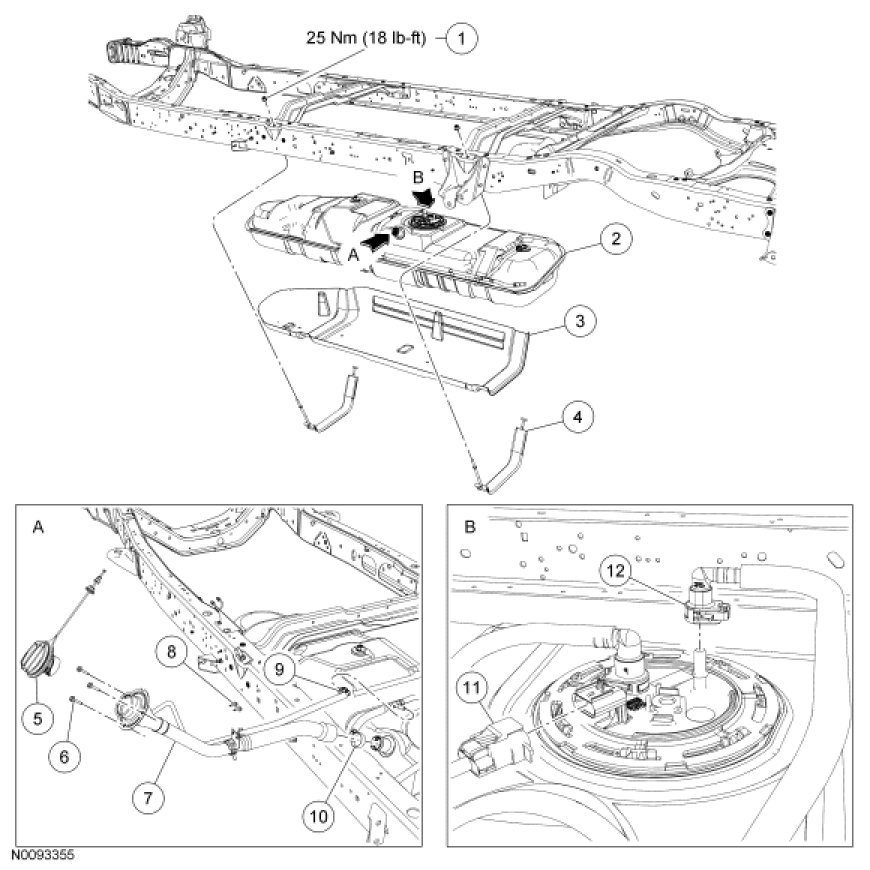

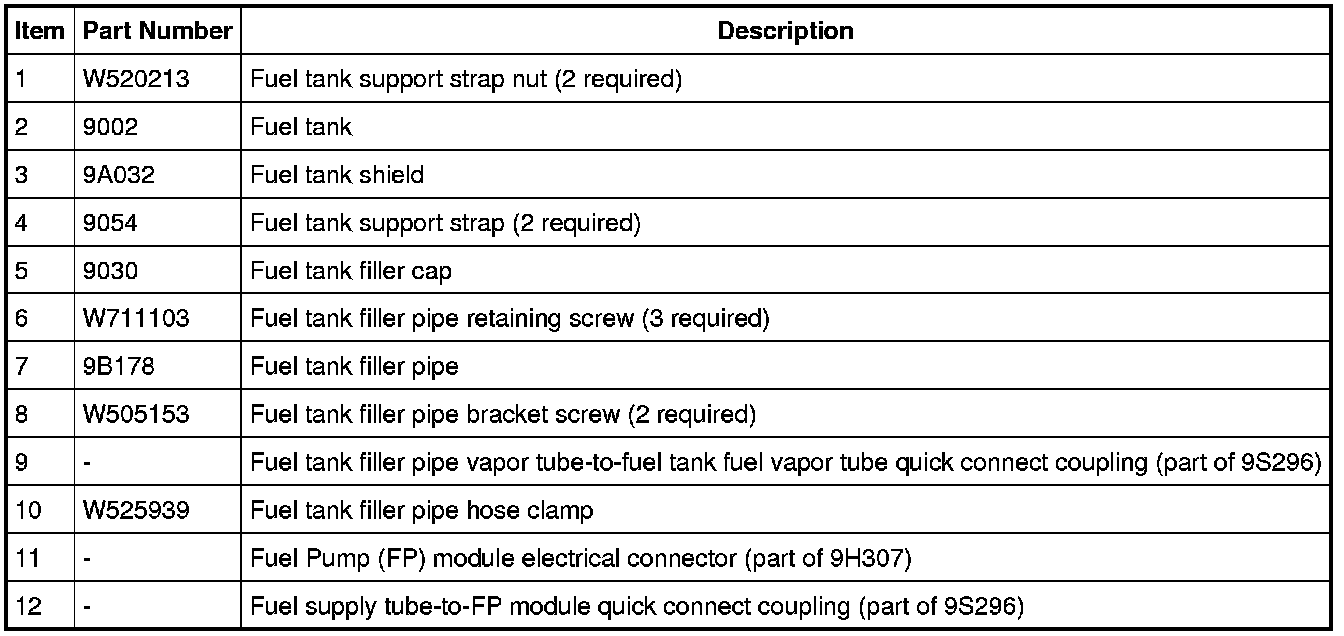

Aft-of-Axle Tank

NOTE: Vehicle body removed from art for clarity.

NOTE: The 151L (40 gal) aft-of-axle fuel tank shown, 208L (55 gal) aft-of-axle fuel tank similar.

NOTE: Gas shown, diesel similar.

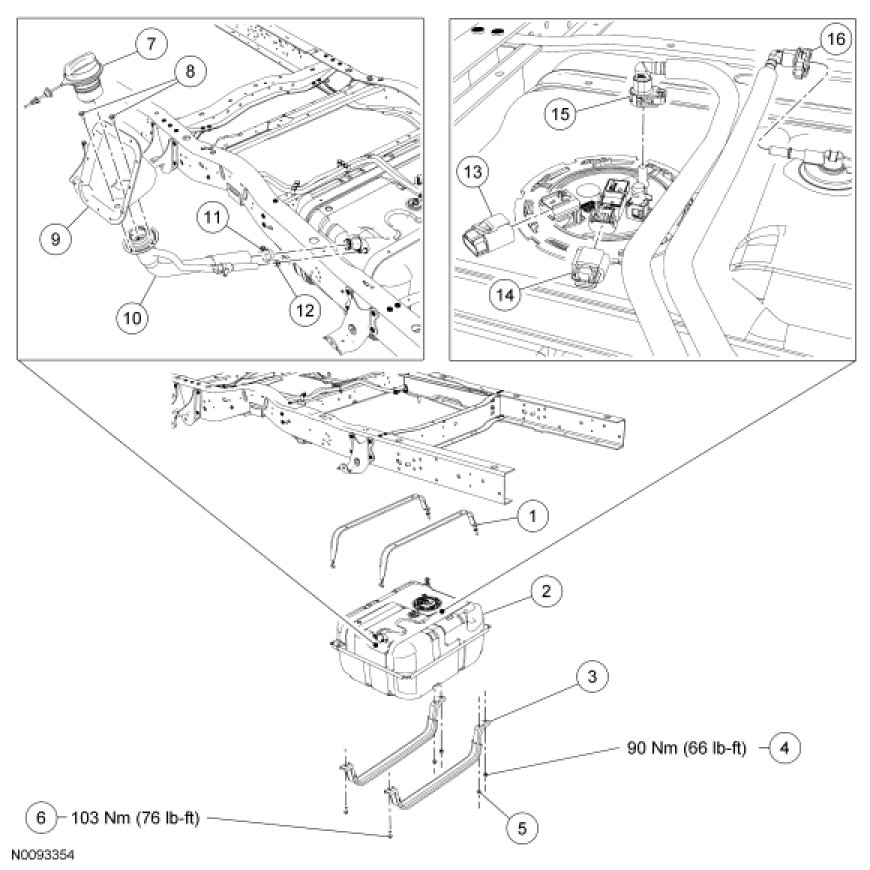

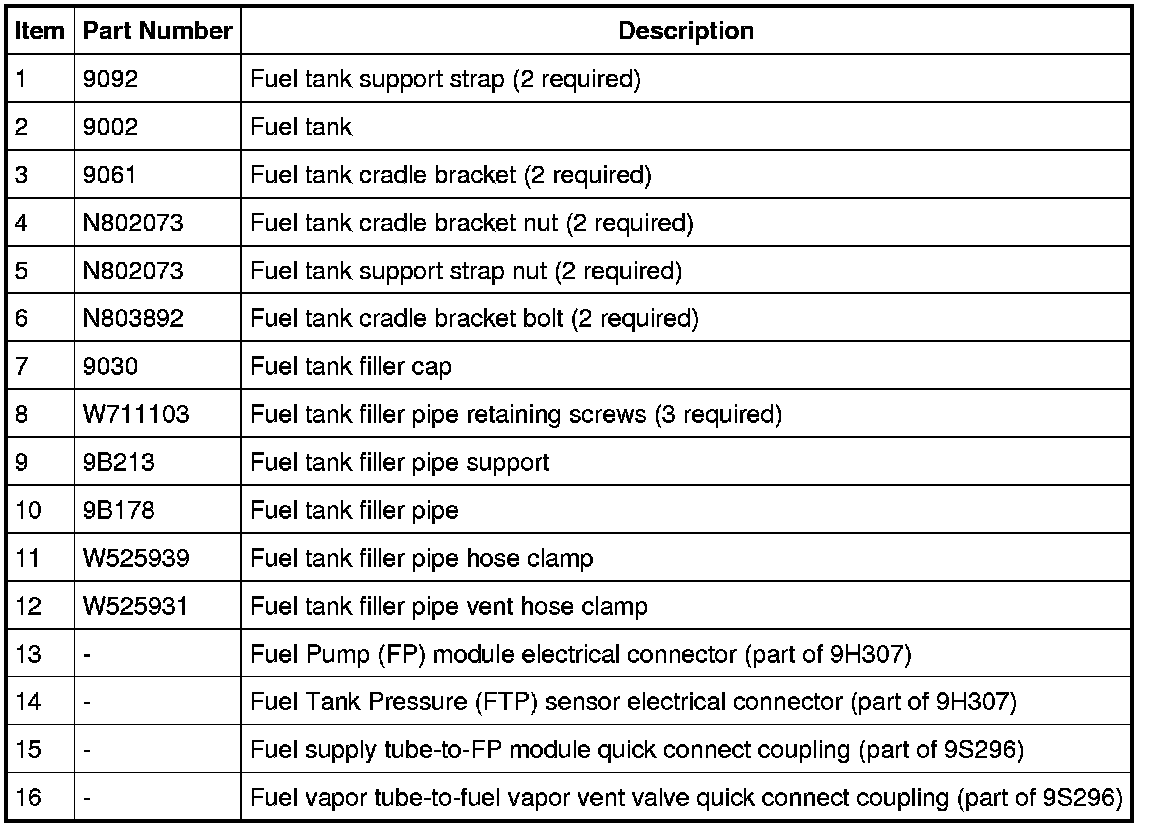

Midship Fuel Tank

NOTE: Vehicle body removed from art for clarity.

NOTE: Gas shown, diesel similar.










1. For additional information, refer to the procedures.
