Audio Control Module (ACM)

Audio Control Module (ACM)









Removal and Installation

NOTE: It is not necessary to remove the Audio Control Module (ACM) to retrieve the part number. For additional information, refer to Audio Control Module (ACM) Self-Diagnostic Mode Audio Control Module (ACM) Self-Diagnostic Mode.

1. NOTE: Module configuration is required when a new ACM is being installed.

Upload the ACM configuration information to the scan tool.

2. Remove the instrument panel center finish panel.

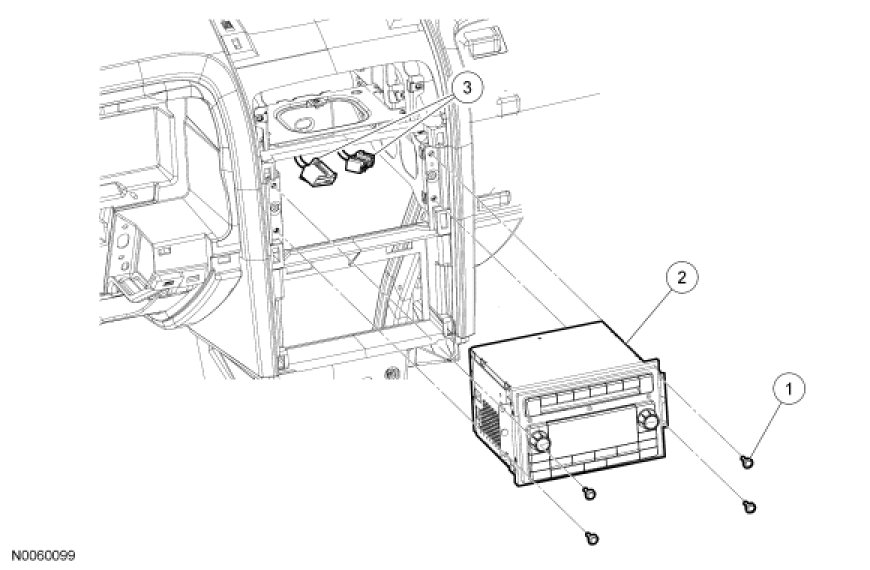

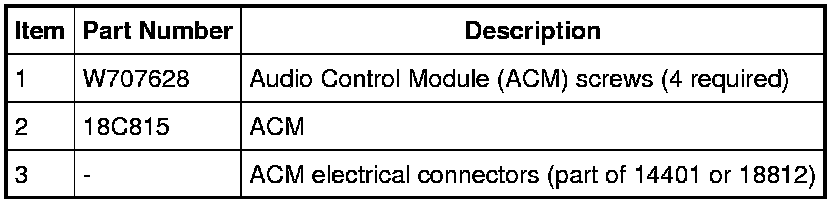

3. Remove the 4 screws and the ACM.
- Disconnect the electrical connectors and the antenna cable.

4. To install, reverse the removal procedure.
- Download the configuration information to the ACM.
