ABS Module DTC Chart
Anti-Lock Control
DTC Charts

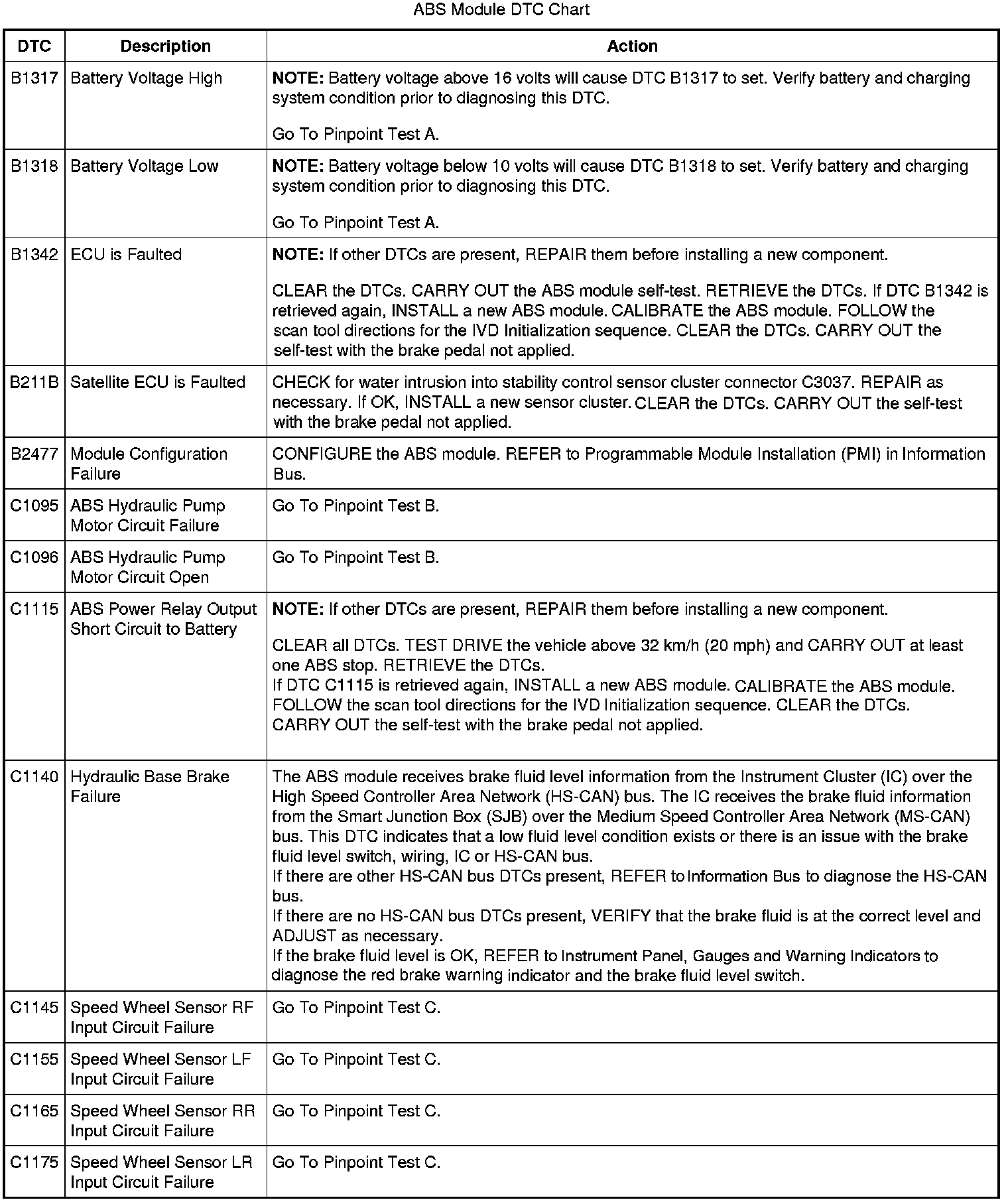

B211B-B2477 / C1095-C1175:

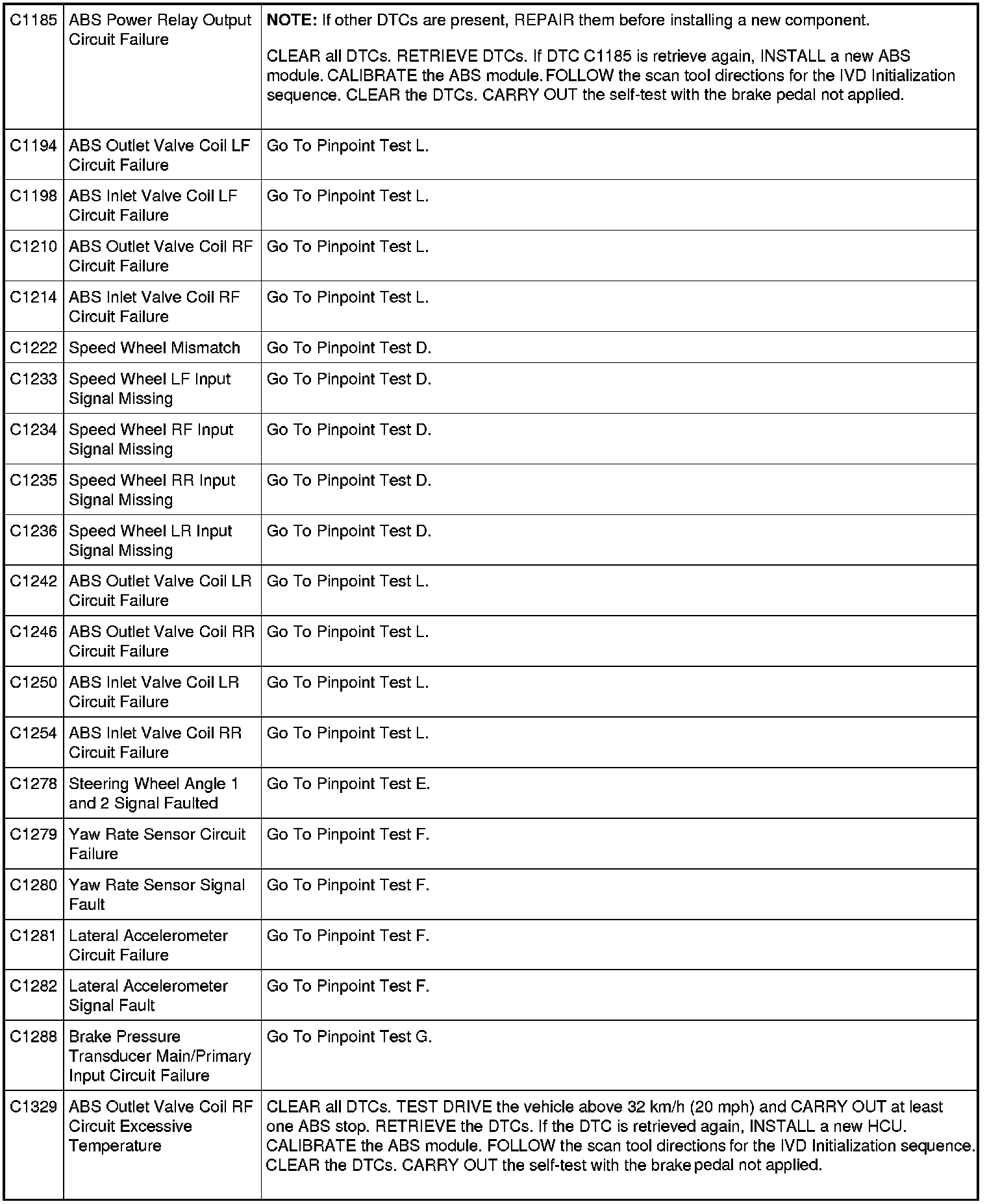

C1185-C1329:

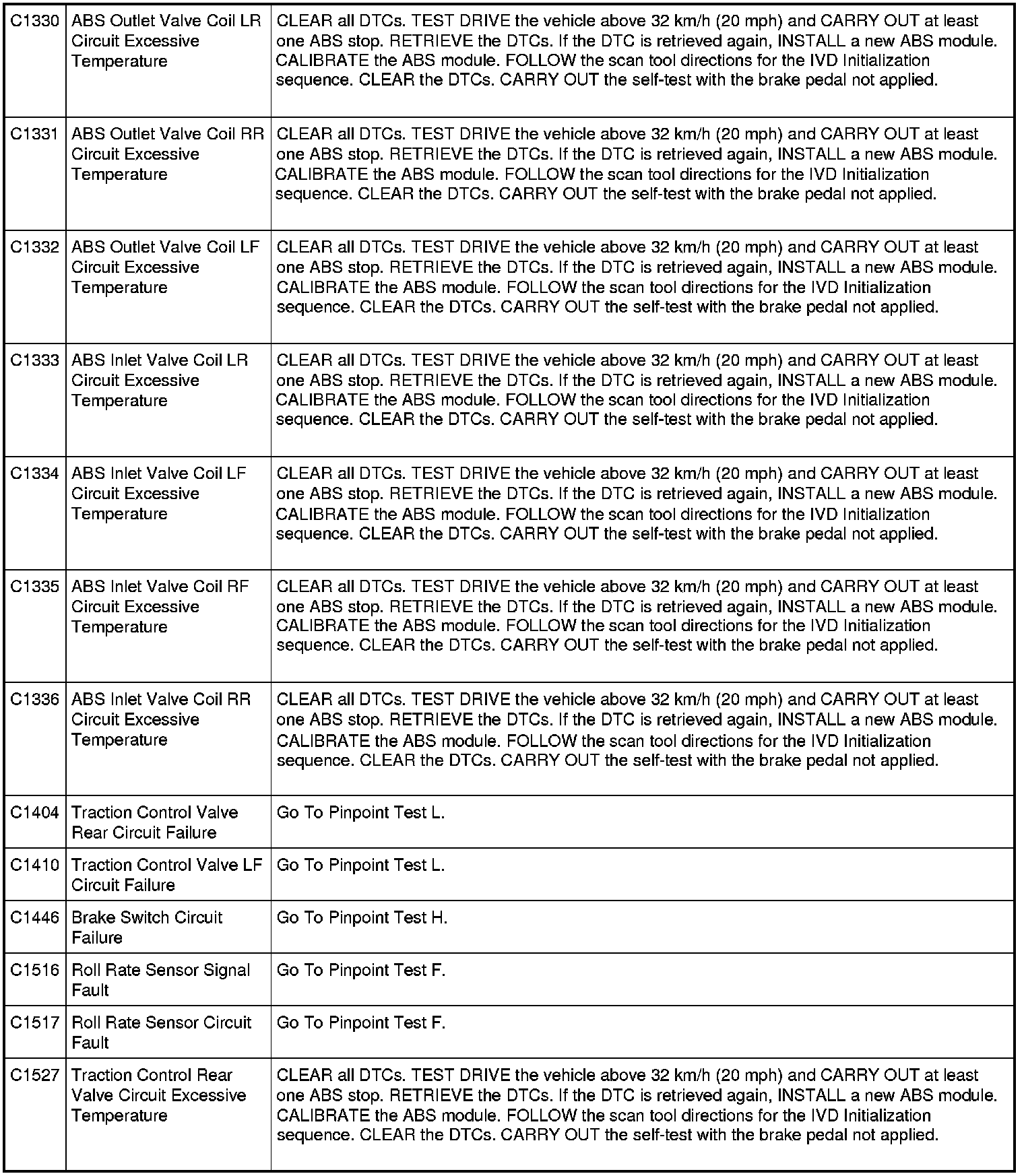

C1330-C1527:

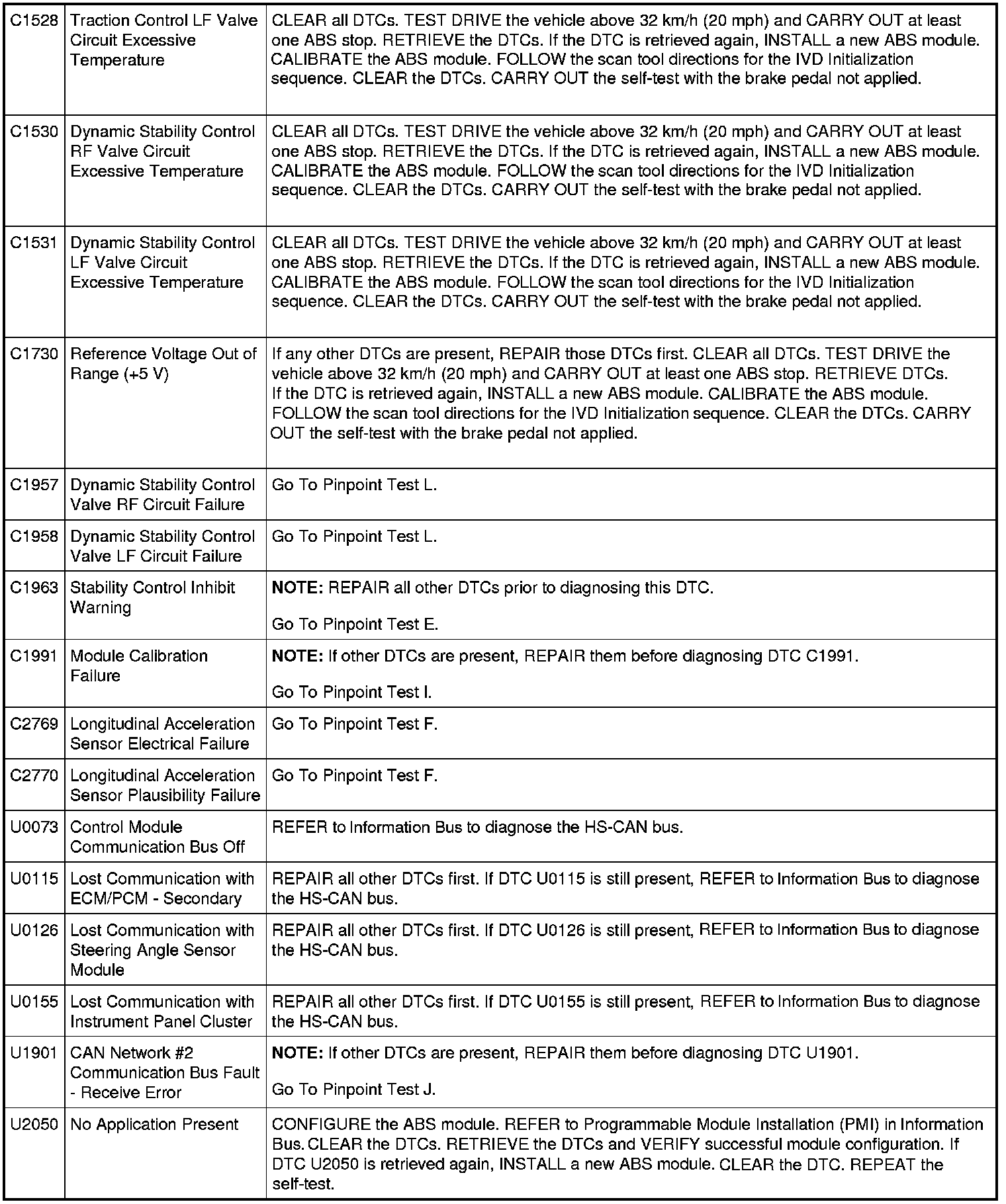

C1528-C2770 / U0073-U2050:

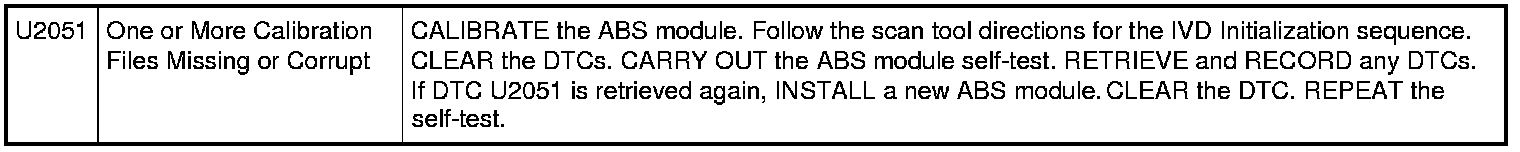

U2051:
