Connecting Rod Twist




Connecting Rod Twist





NOTE: Refer to the Engine system level for the specification.

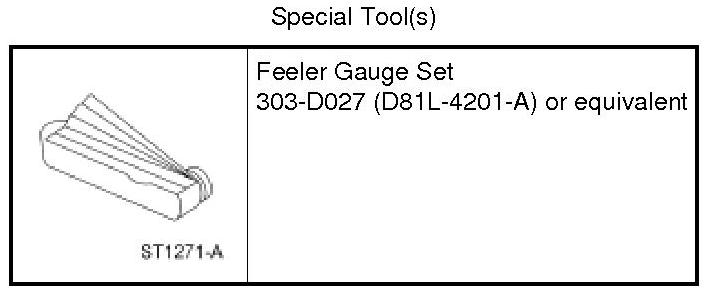

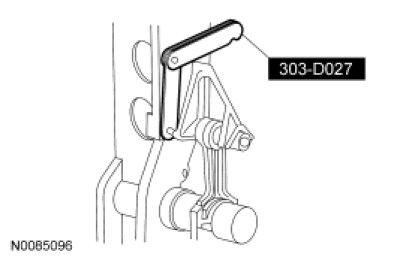

1. Using the Feeler Gauge Set, measure the connecting rod twist on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the measurement is within specification.
