HVAC Module - Dual Automatic Temperature Control (DATC) DTC Chart
Climate Control System
DTC Charts

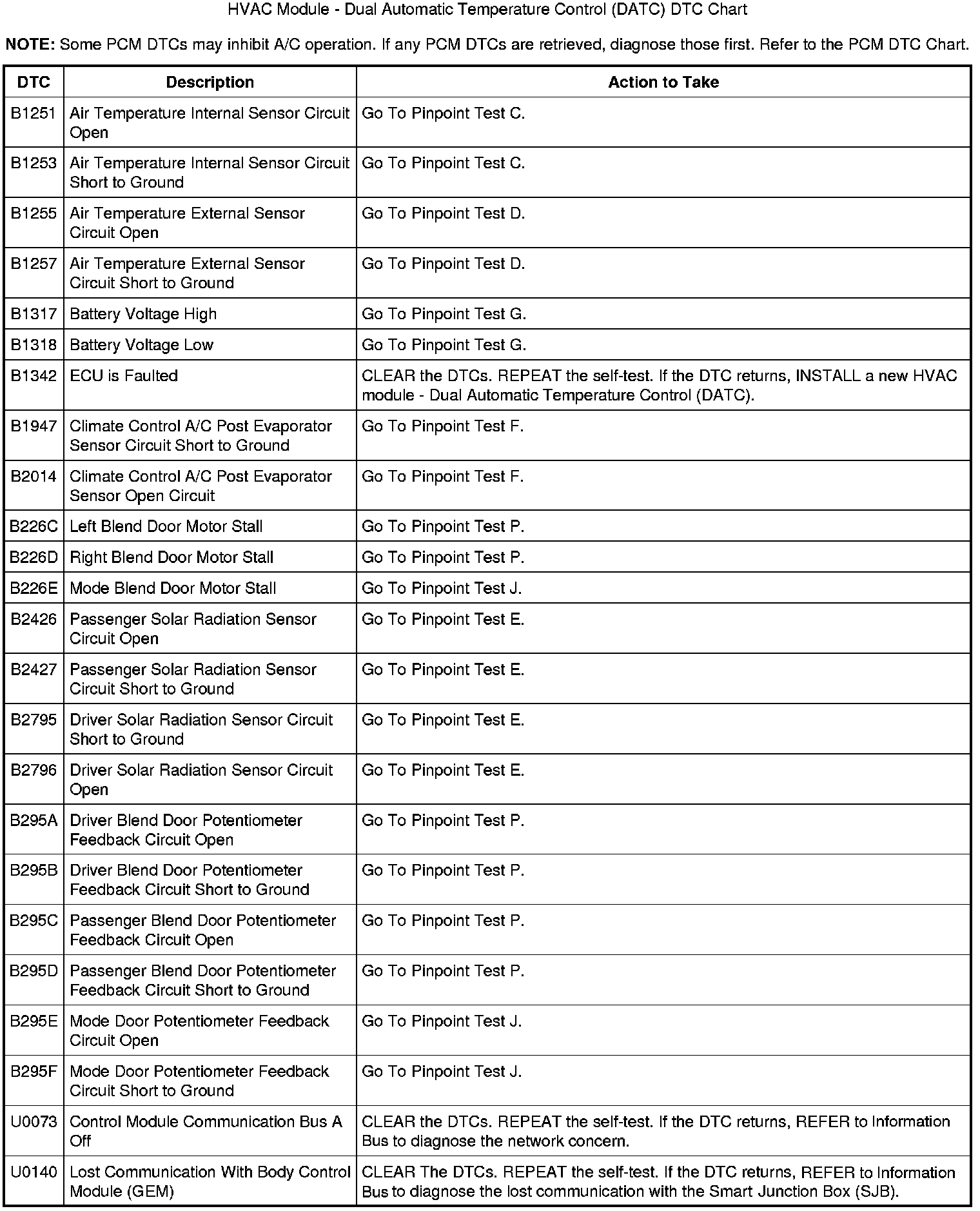

B226C-B2796 / U0073-U0140:

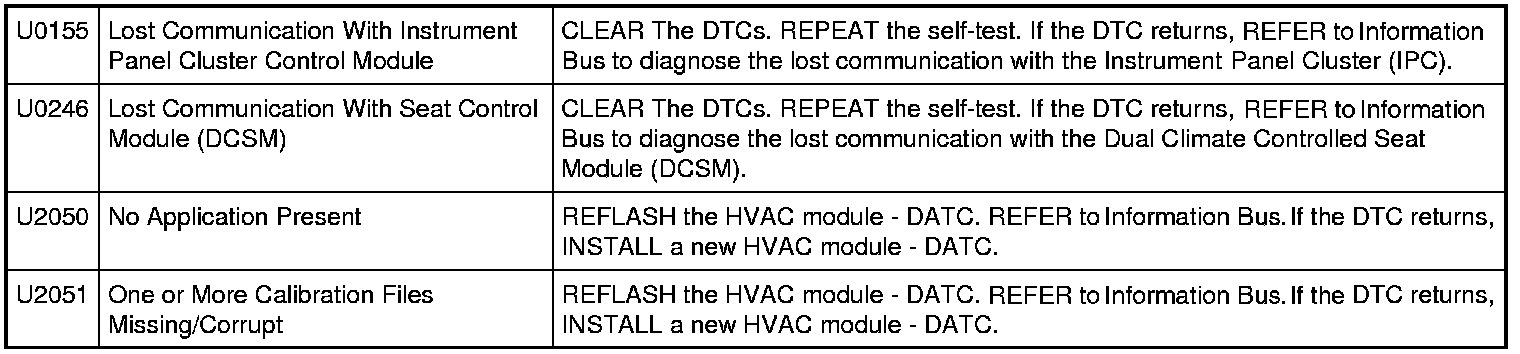

U0155-U2051:
