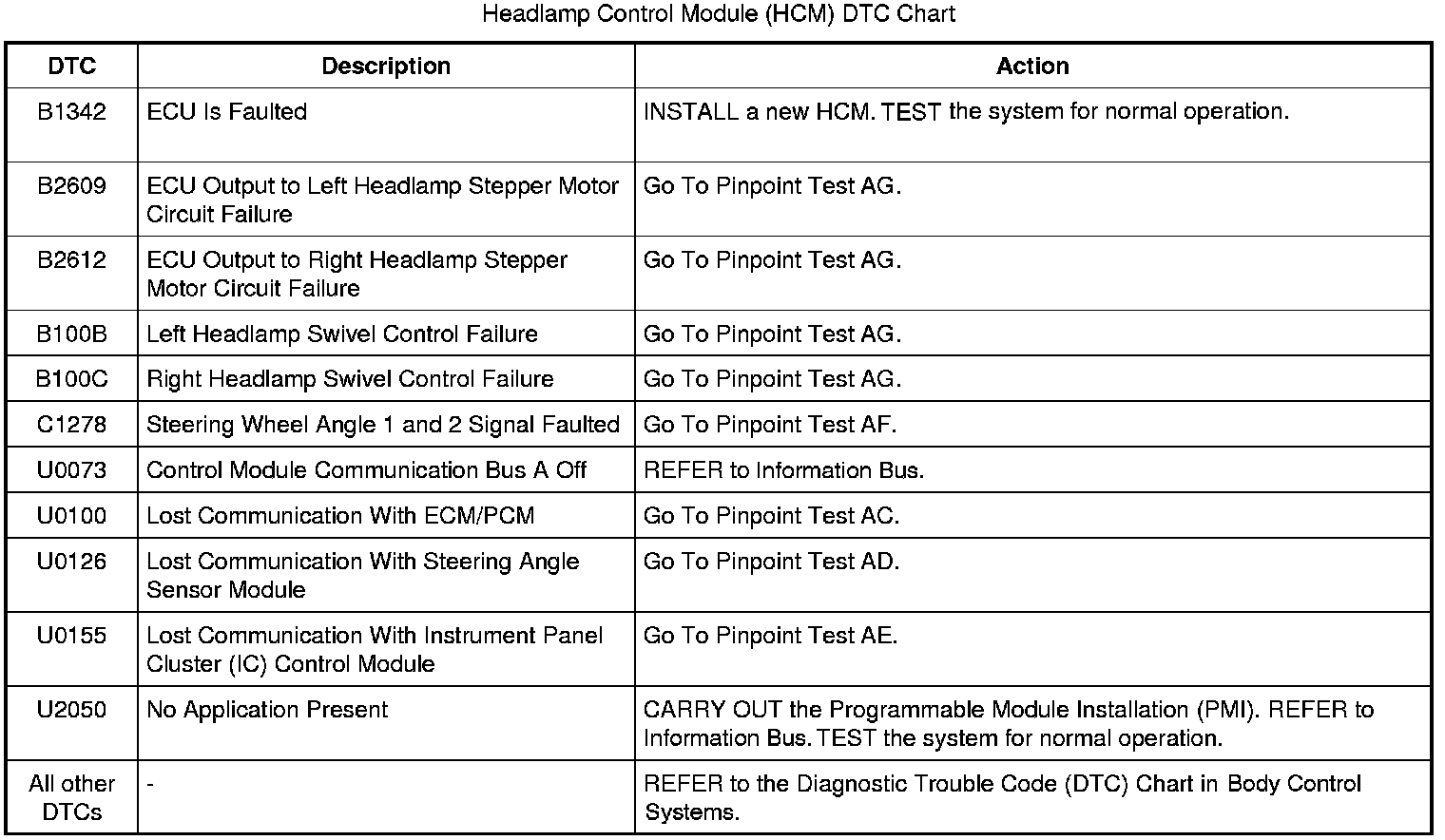

Headlamp Control Module (HCM) DTC Chart
Diagnostic Trouble Code (DTC) Chart
B100B-B2612 / C1278 / U0073-U2050:
