Symptom Related Diagnostic Procedures




Communications Network




Symptom Chart

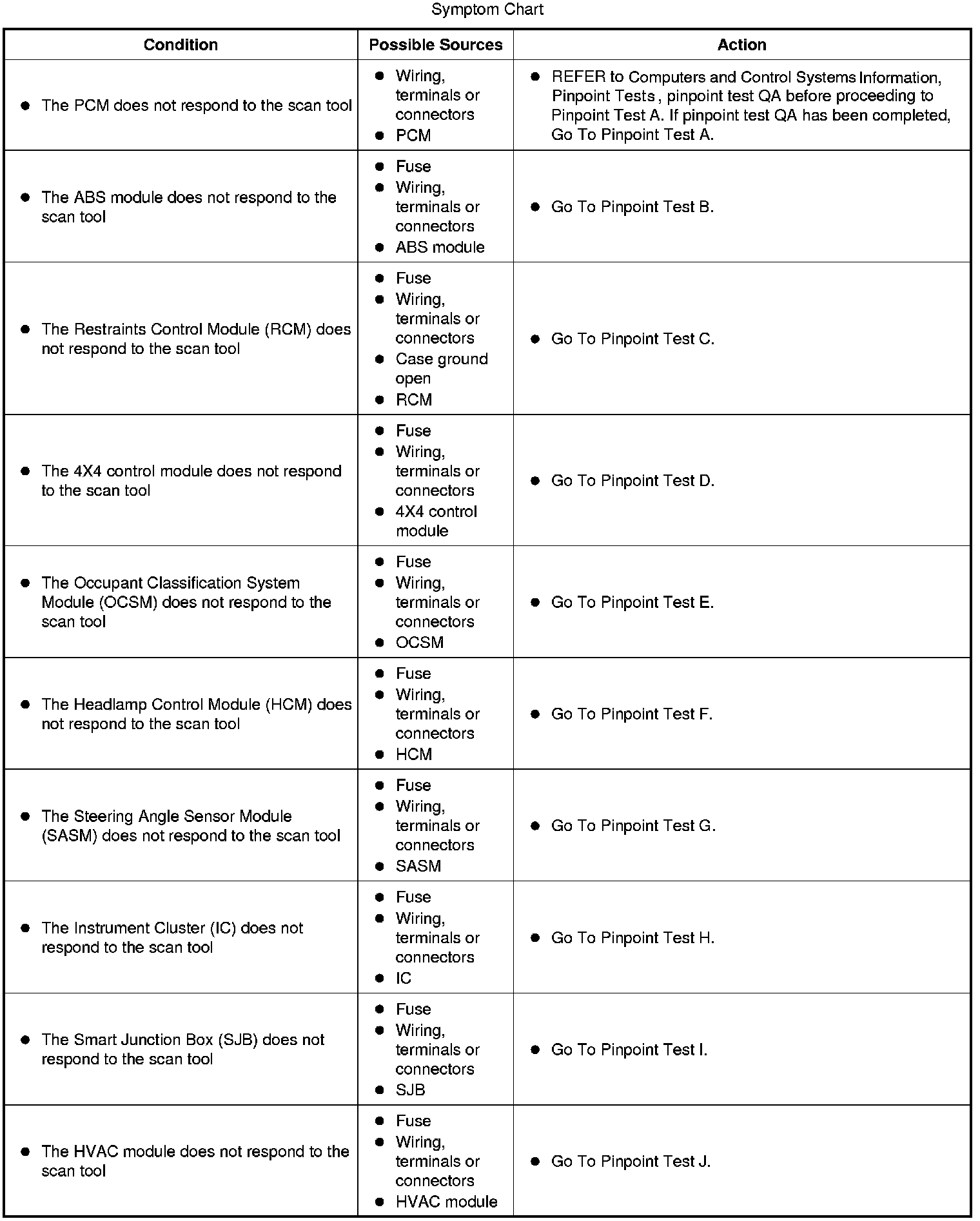

Symptom Chart (Part 1):

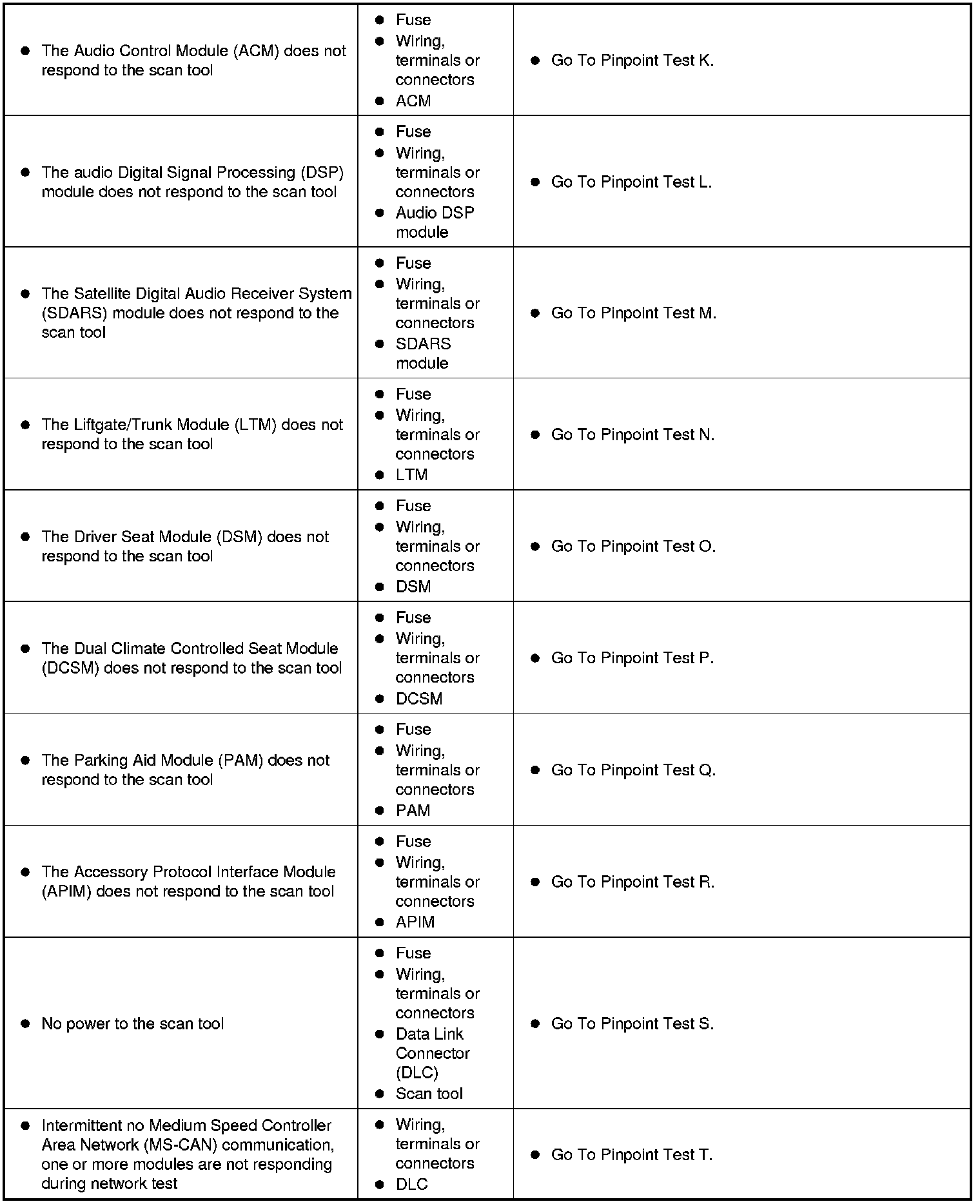

Symptom Chart (Part 2):

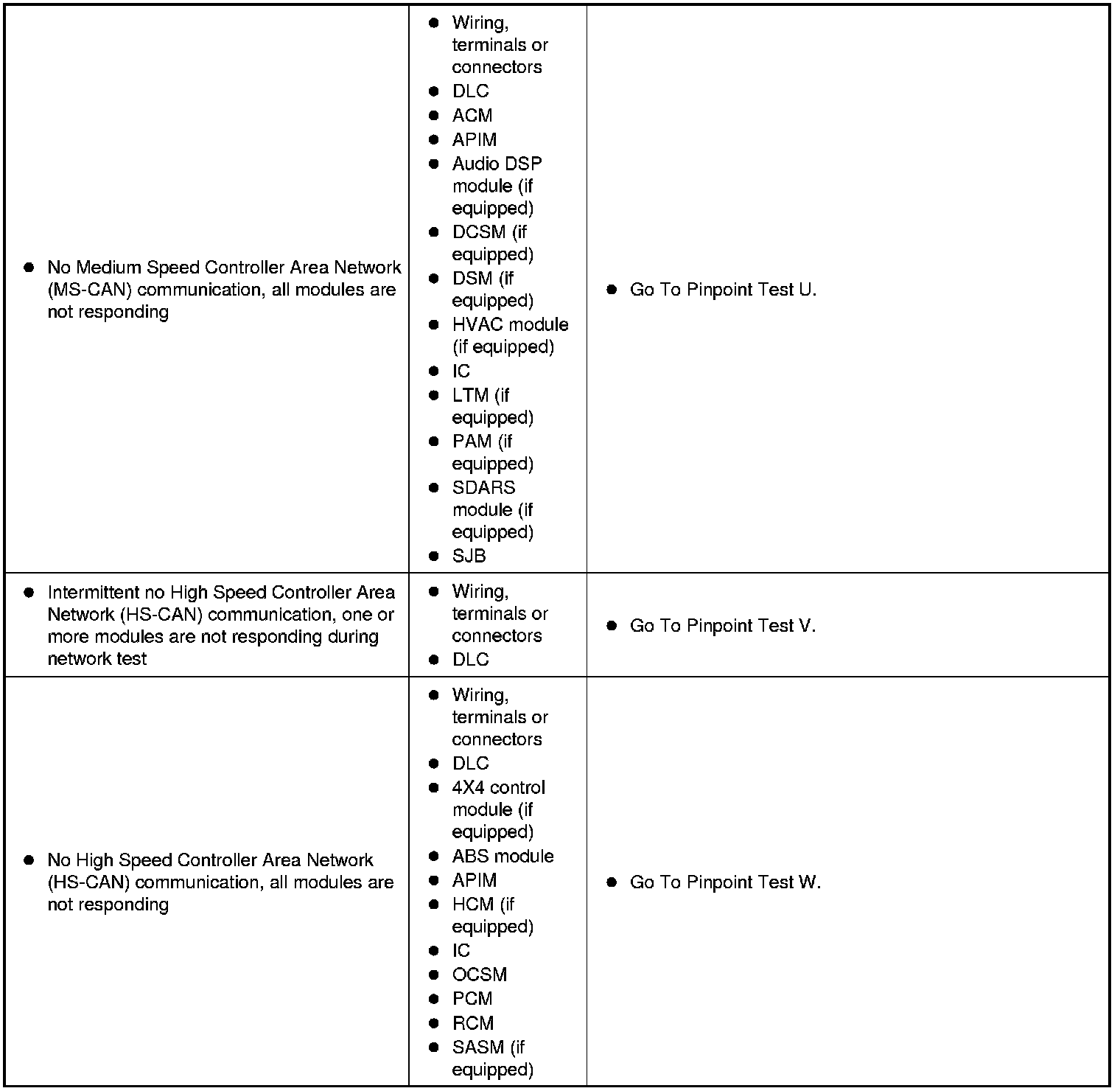

Symptom Chart (Part 3):
