DT - Power Steering Pressure (PSP) Sensor
PINPOINT TEST DT: POWER STEERING PRESSURE (PSP) SENSOR

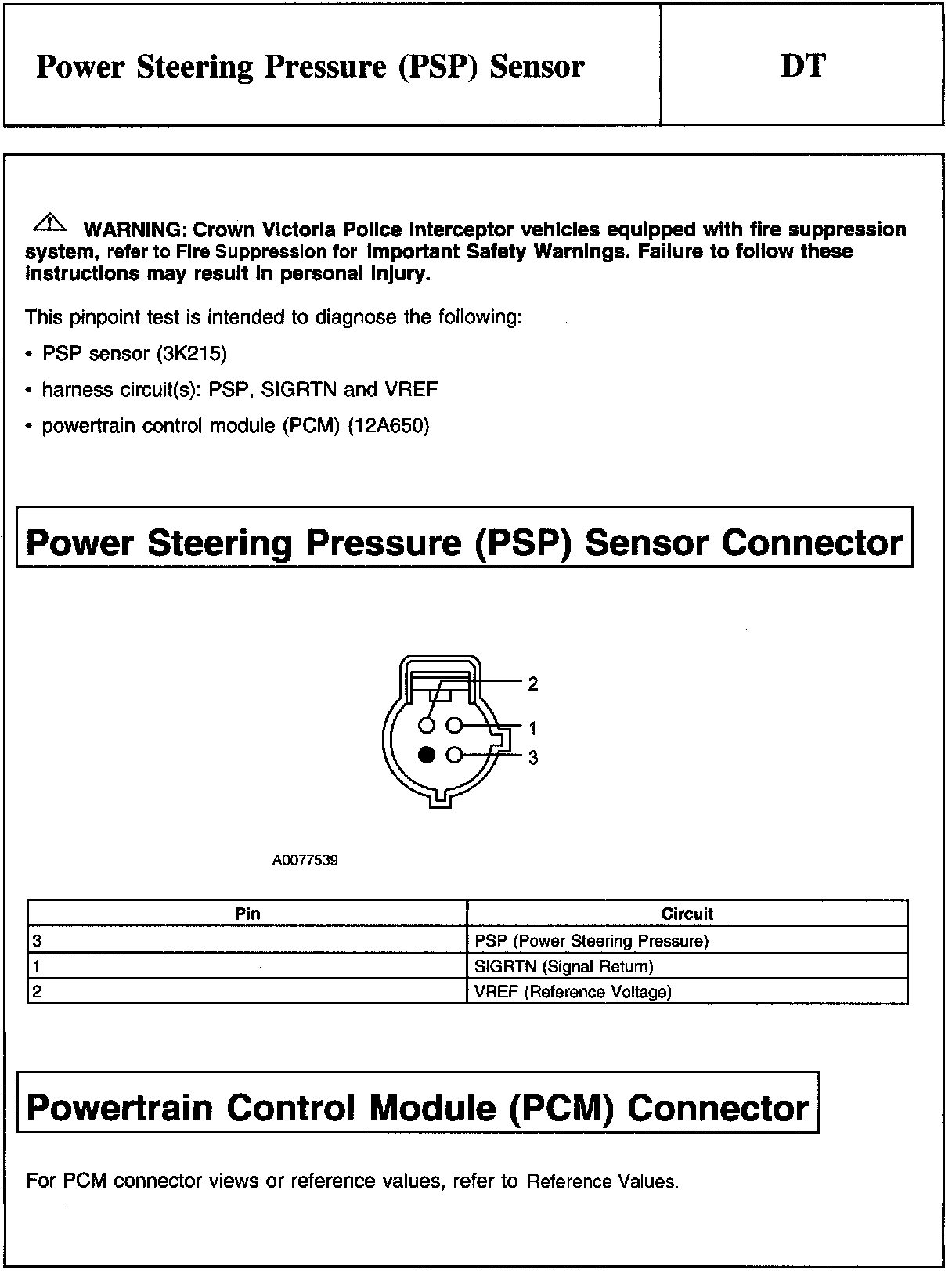

WARNING, Power Steering Pressure Sensor And Powertrain Control Module Connector:

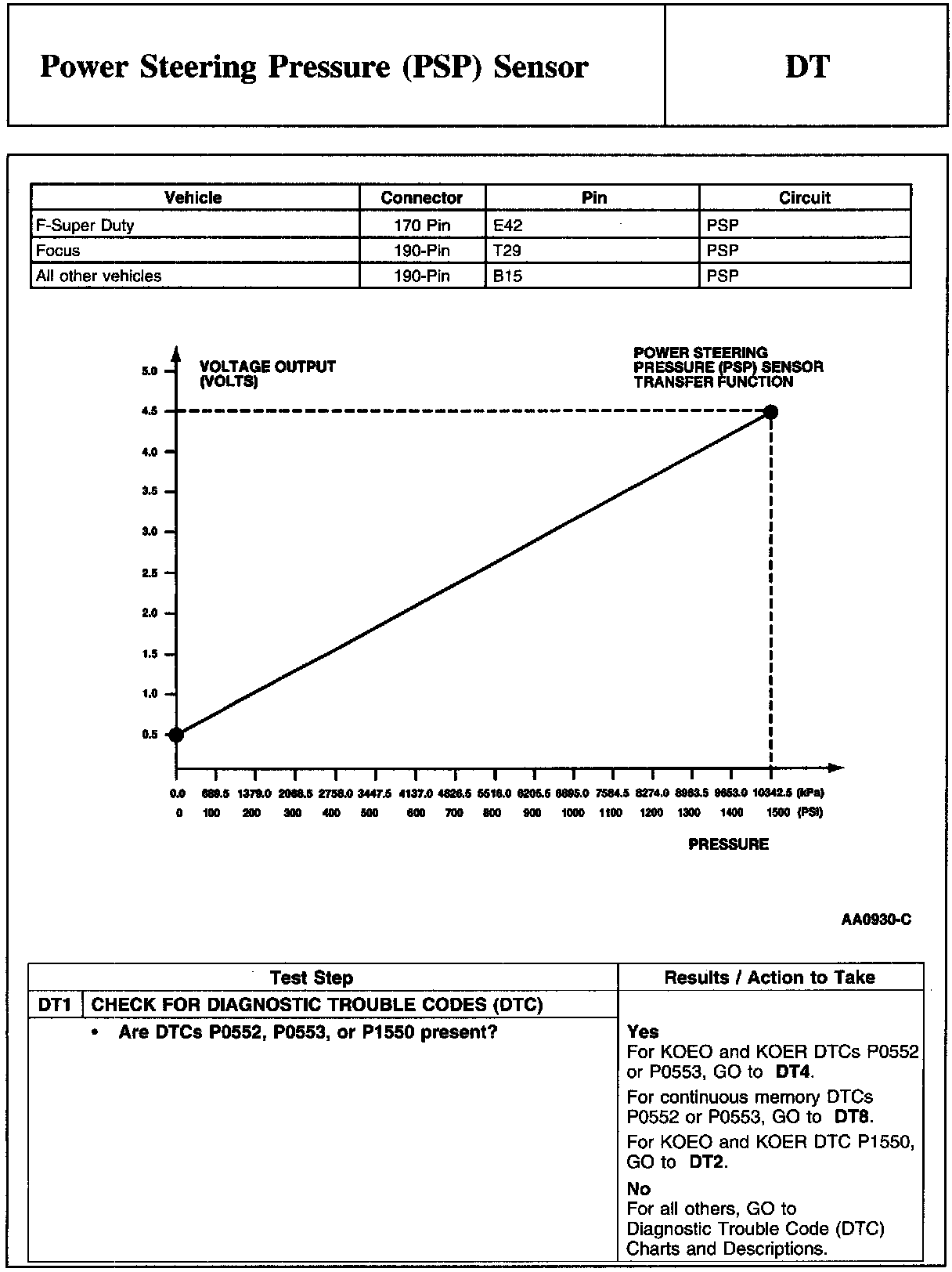

DT1:

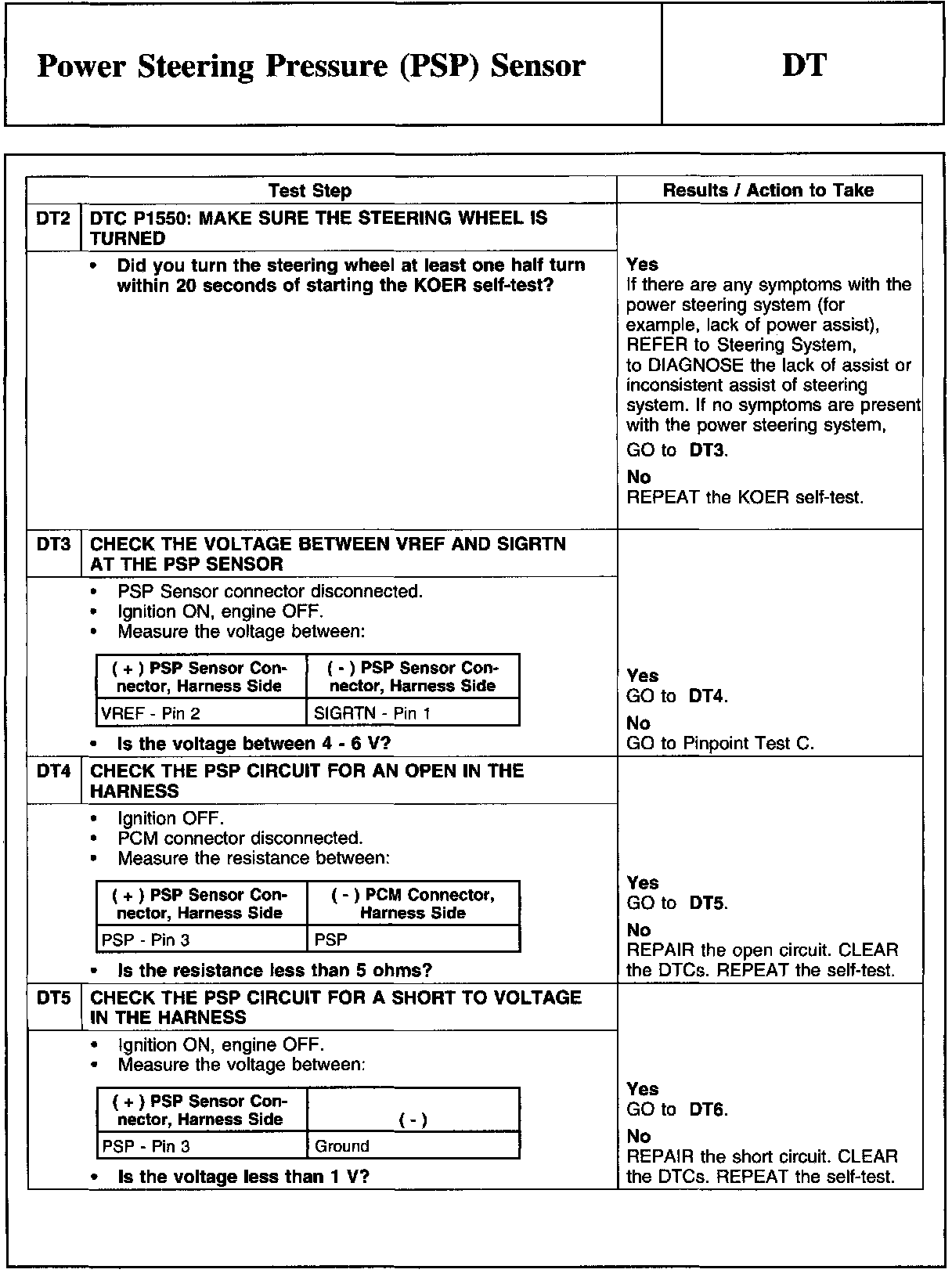

DT2-DT5:

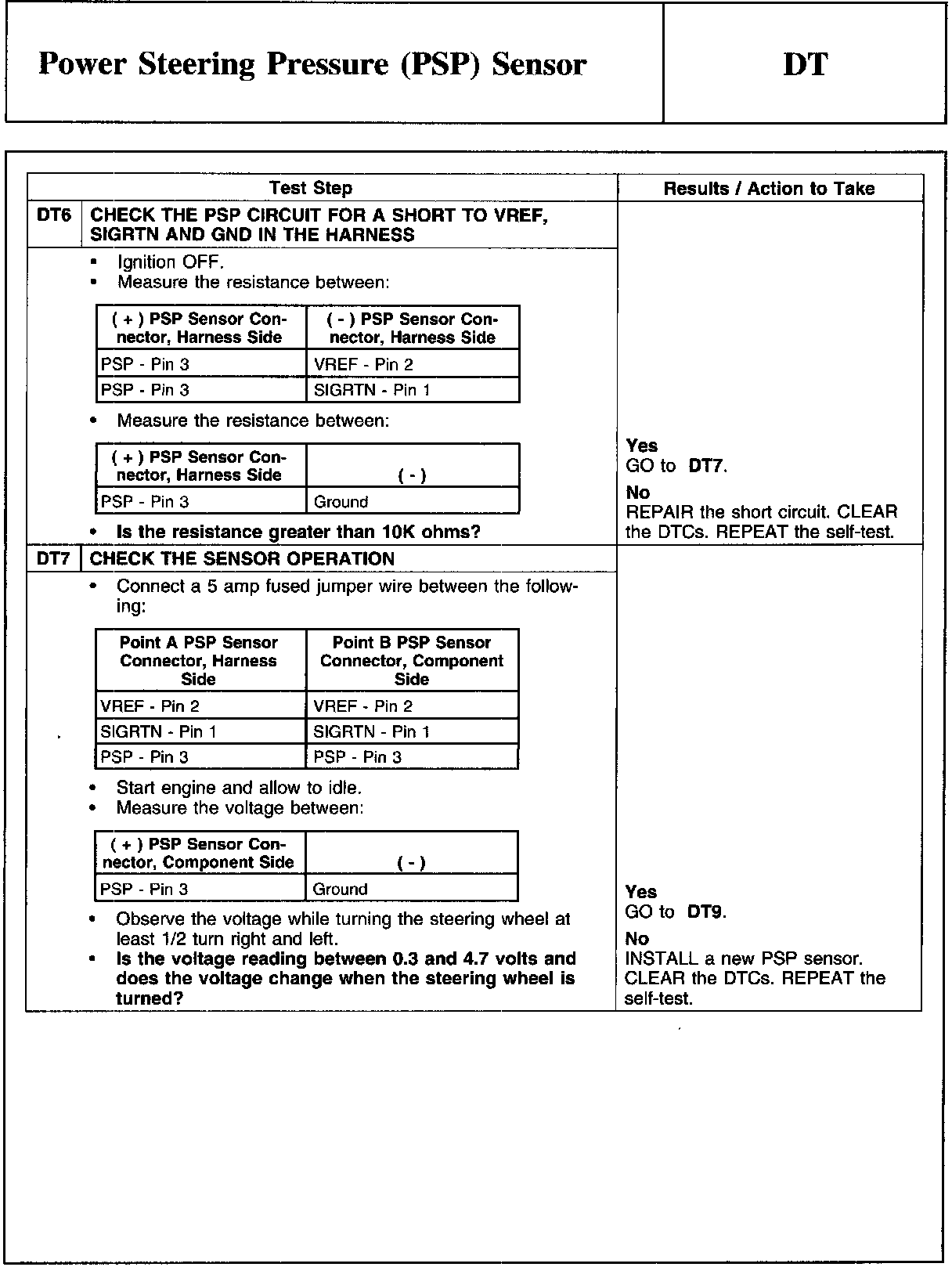

DT6-DT7:

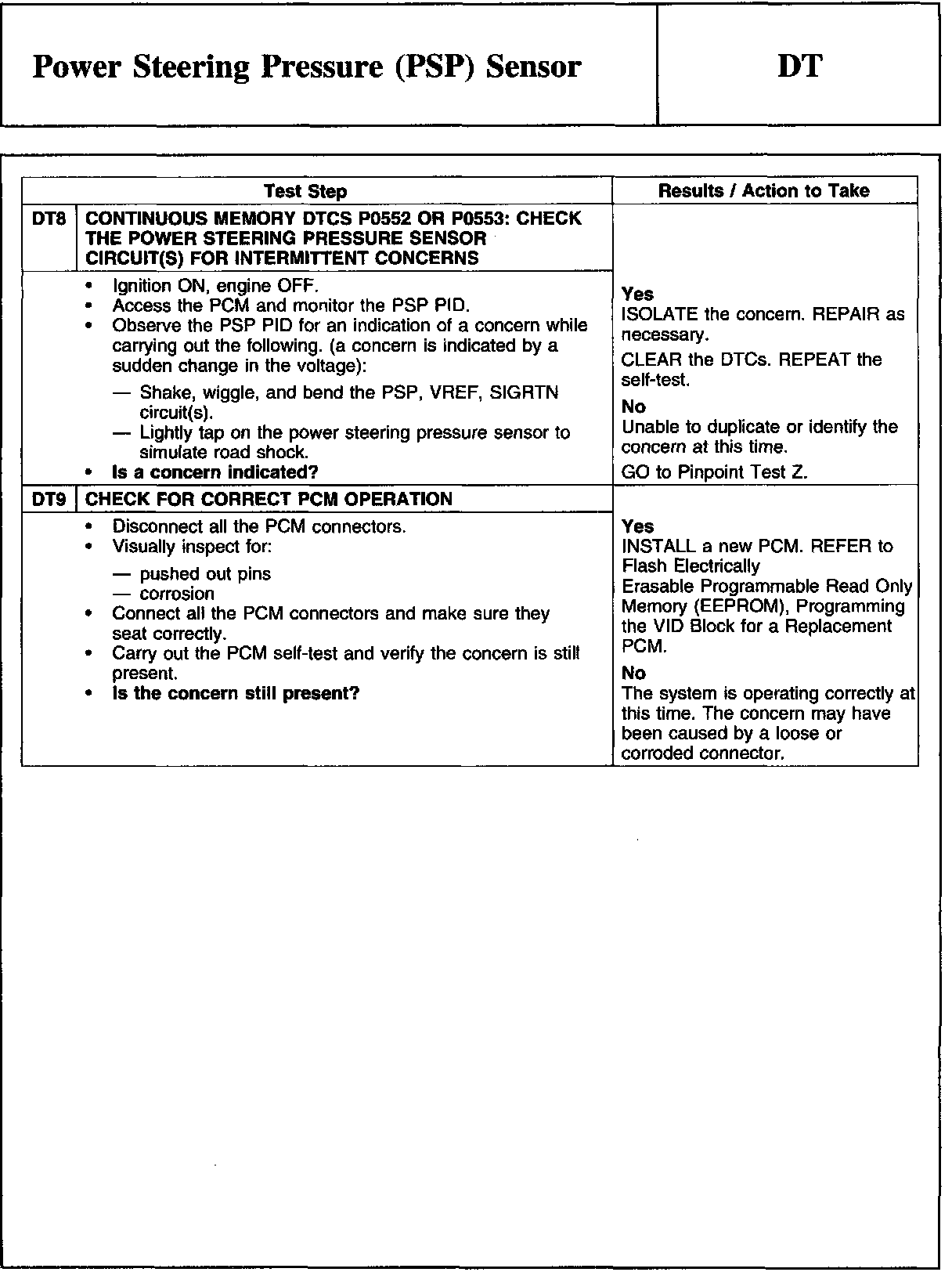

DT8-DT9:
