DY - Engine Oil Temperature (EOT) Sensor

PINPOINT TEST DY: ENGINE OIL TEMPERATURE (EOT) SENSOR

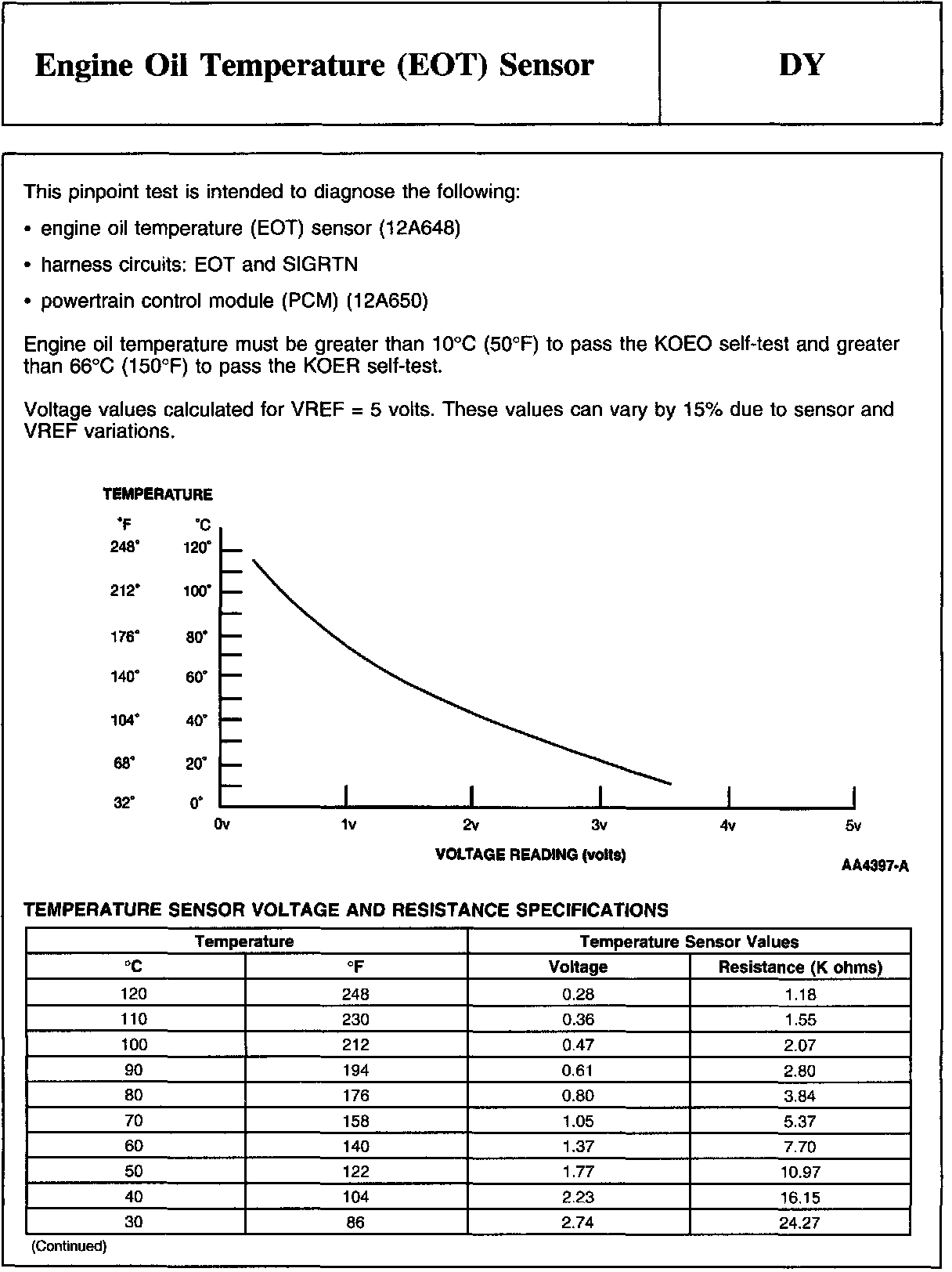

Temperature Sensor Voltage And Resistance Graph And Specifications:

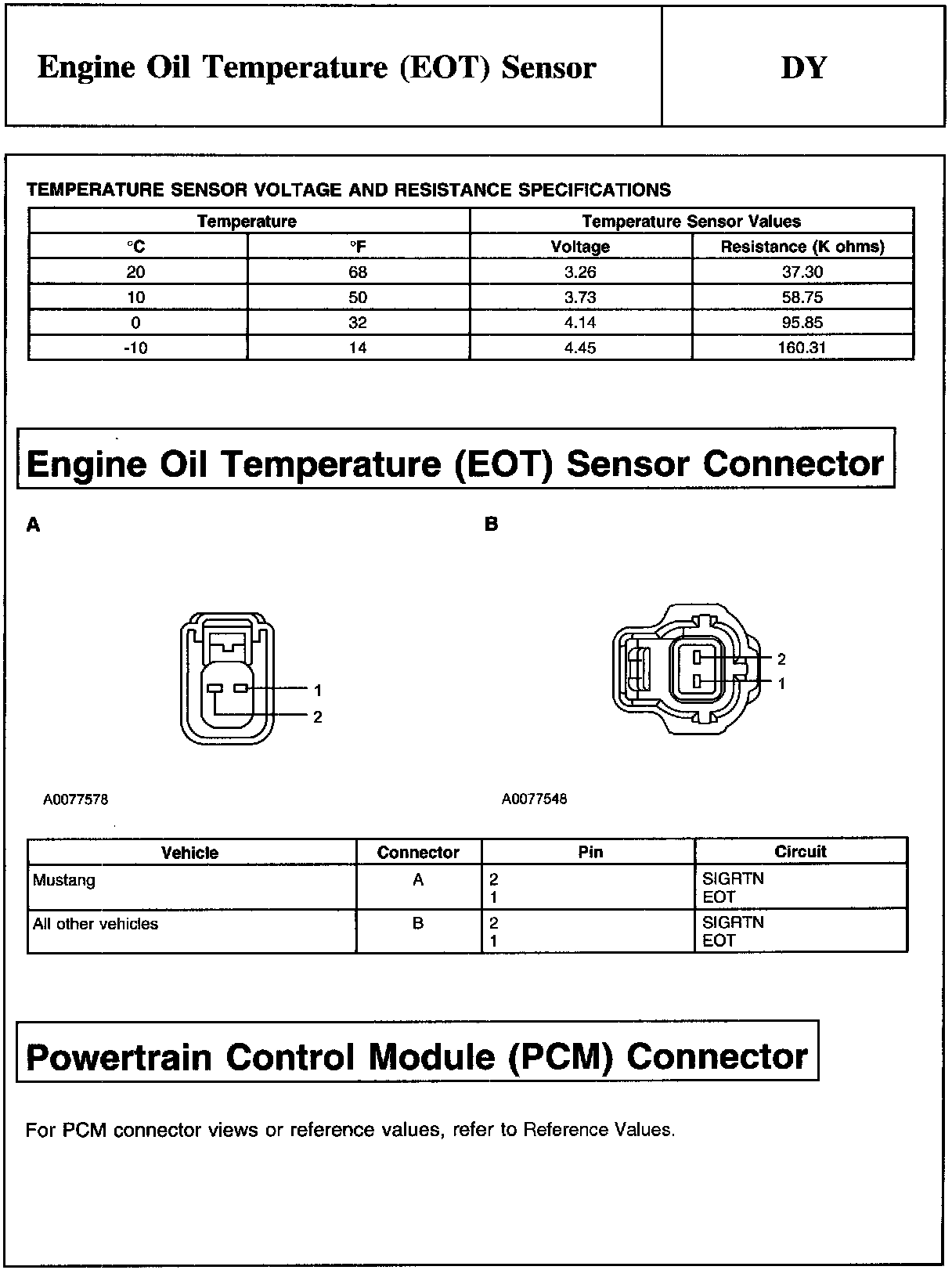

Engine Oil Temperature Sensor And Powertrain Control Module Connector:

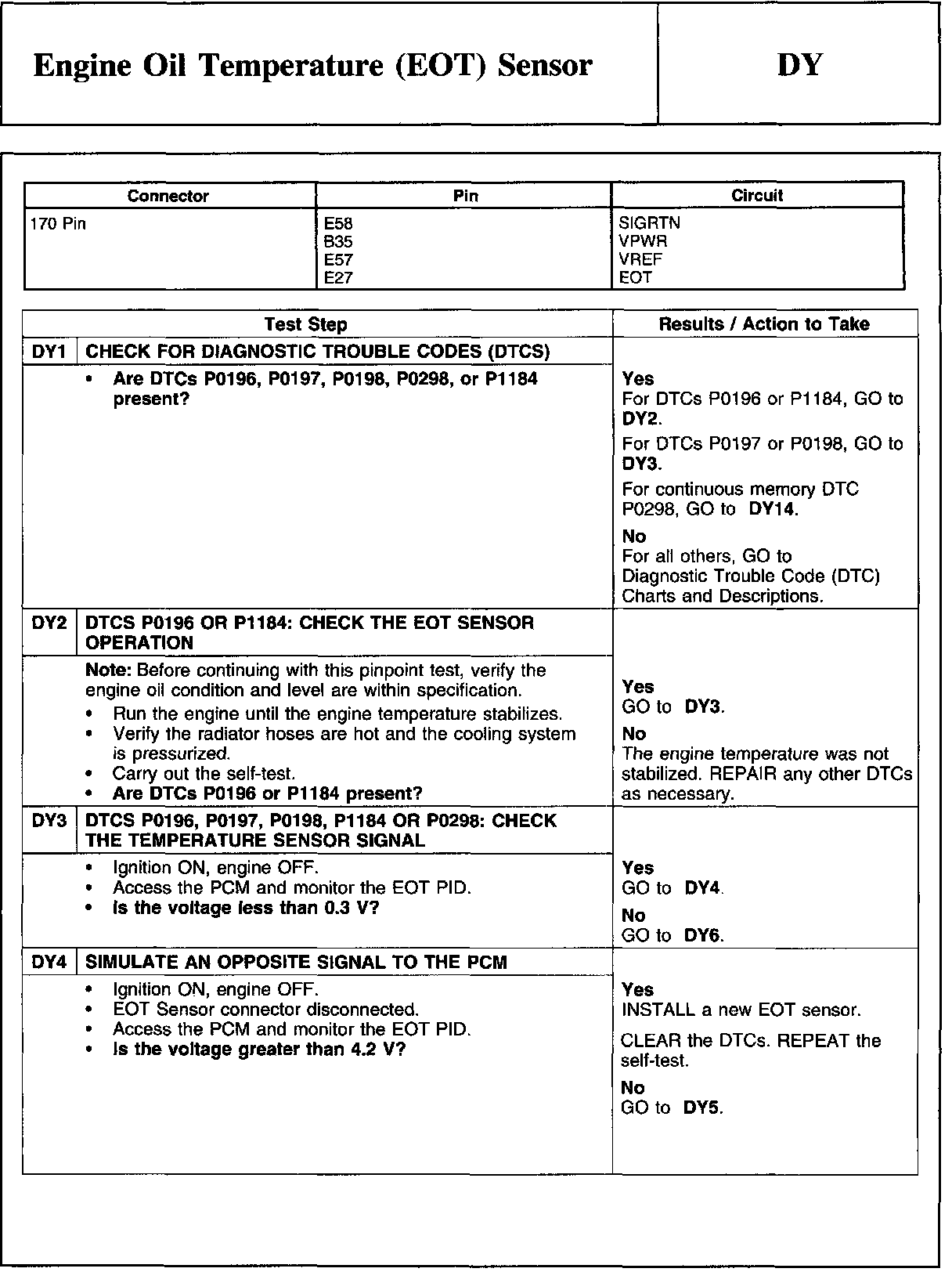

DY1-DY4:

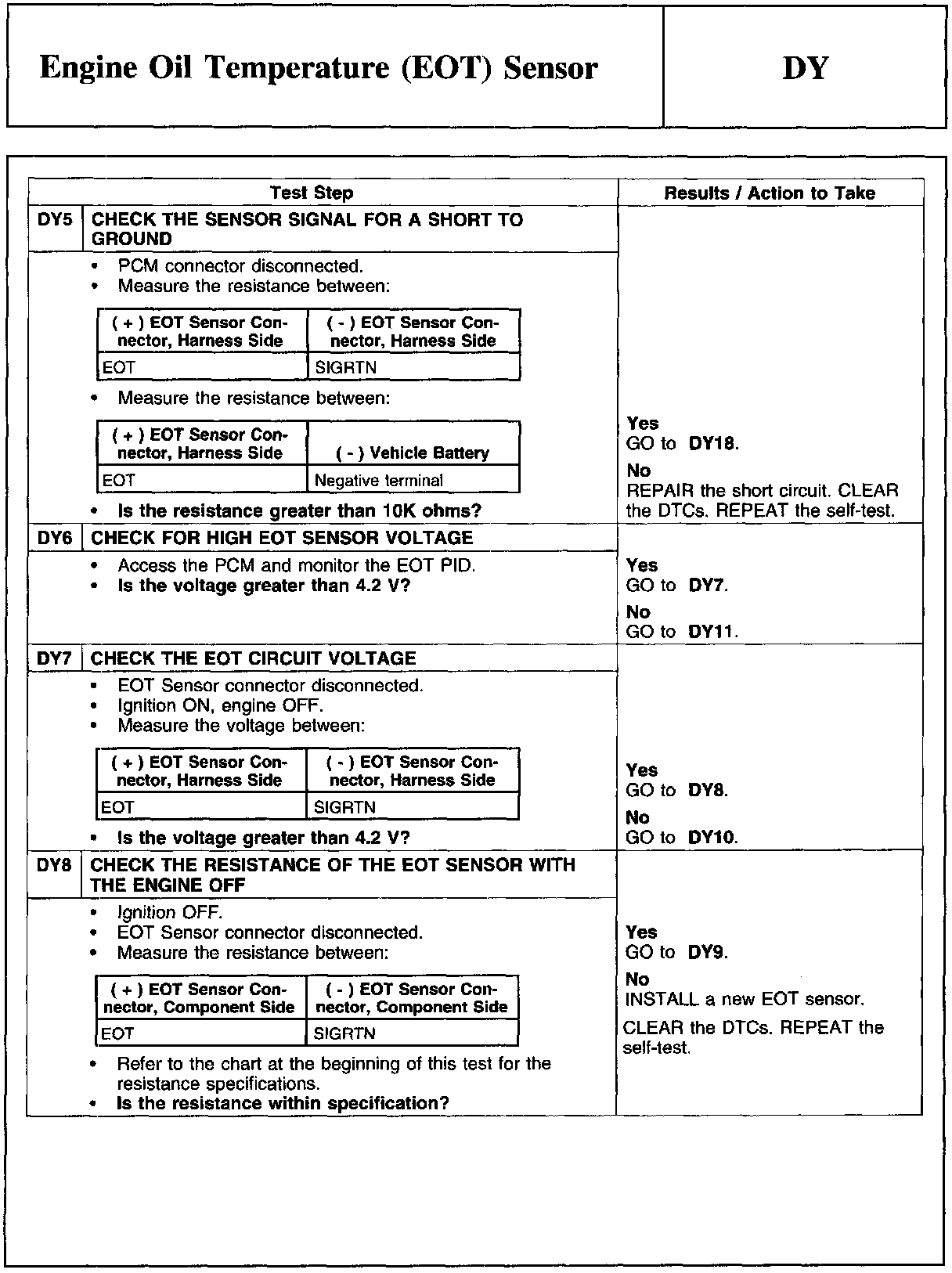

DY5-DY8:

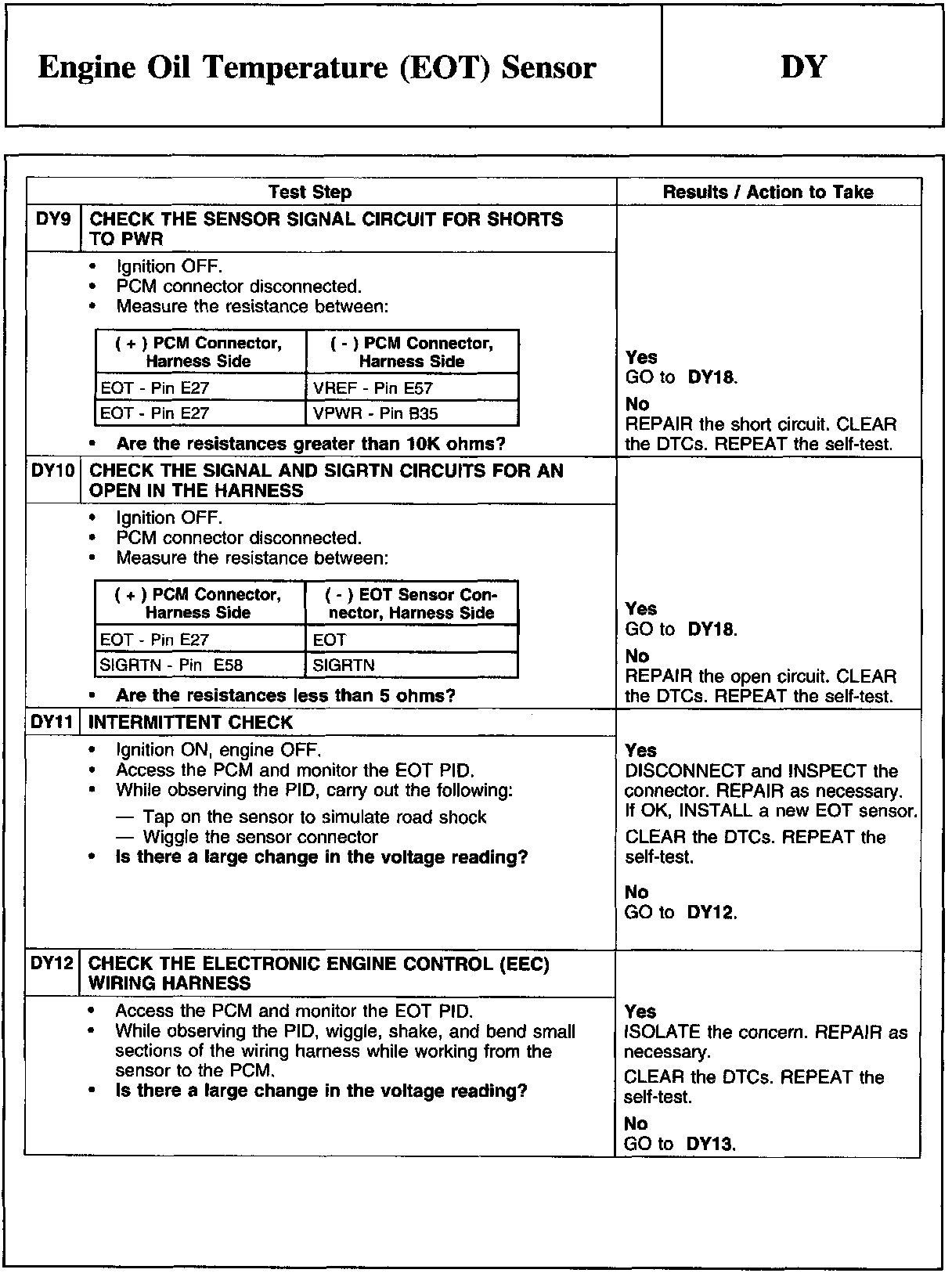

DY9-DY12:

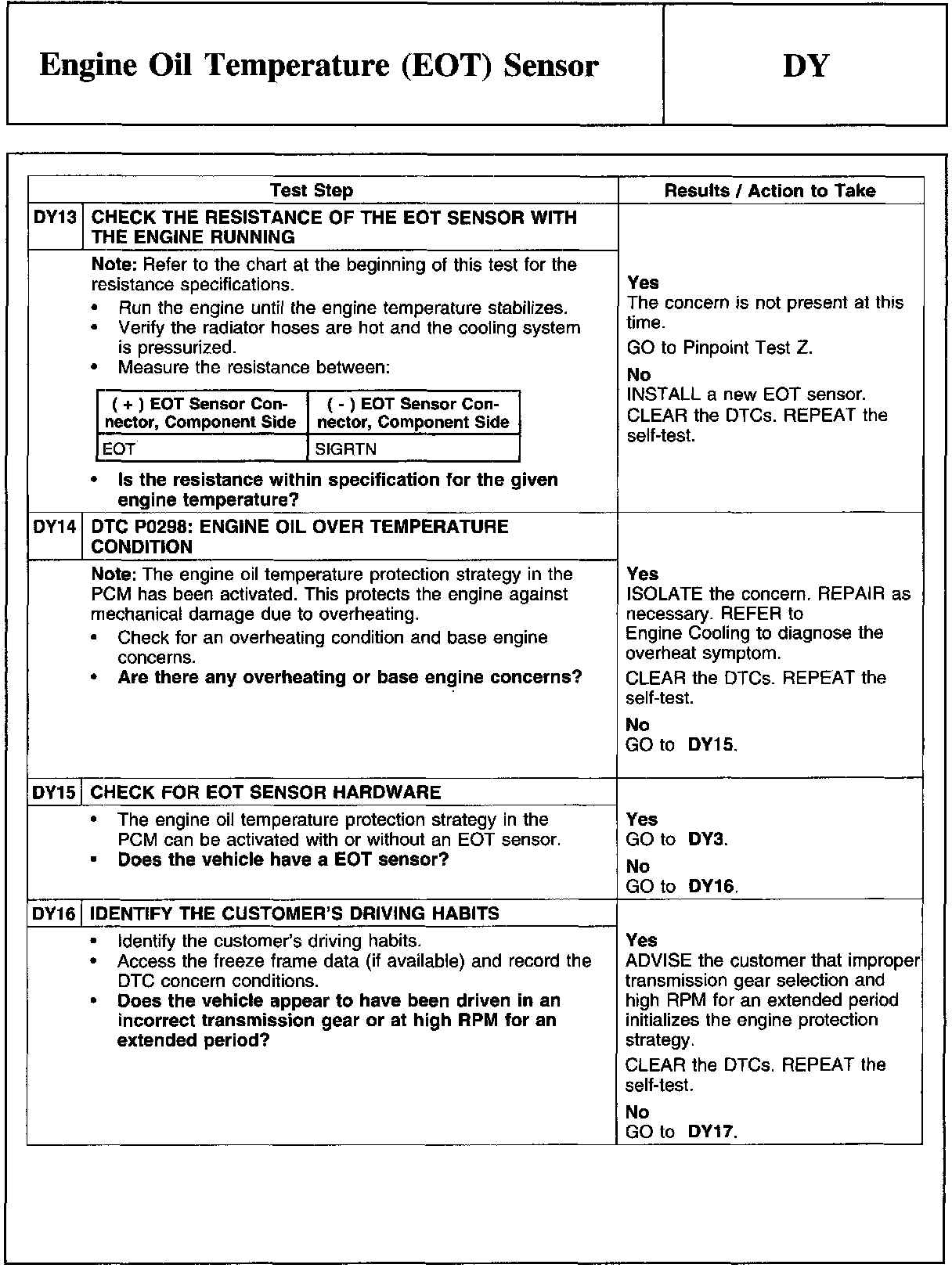

DY13-DY16:

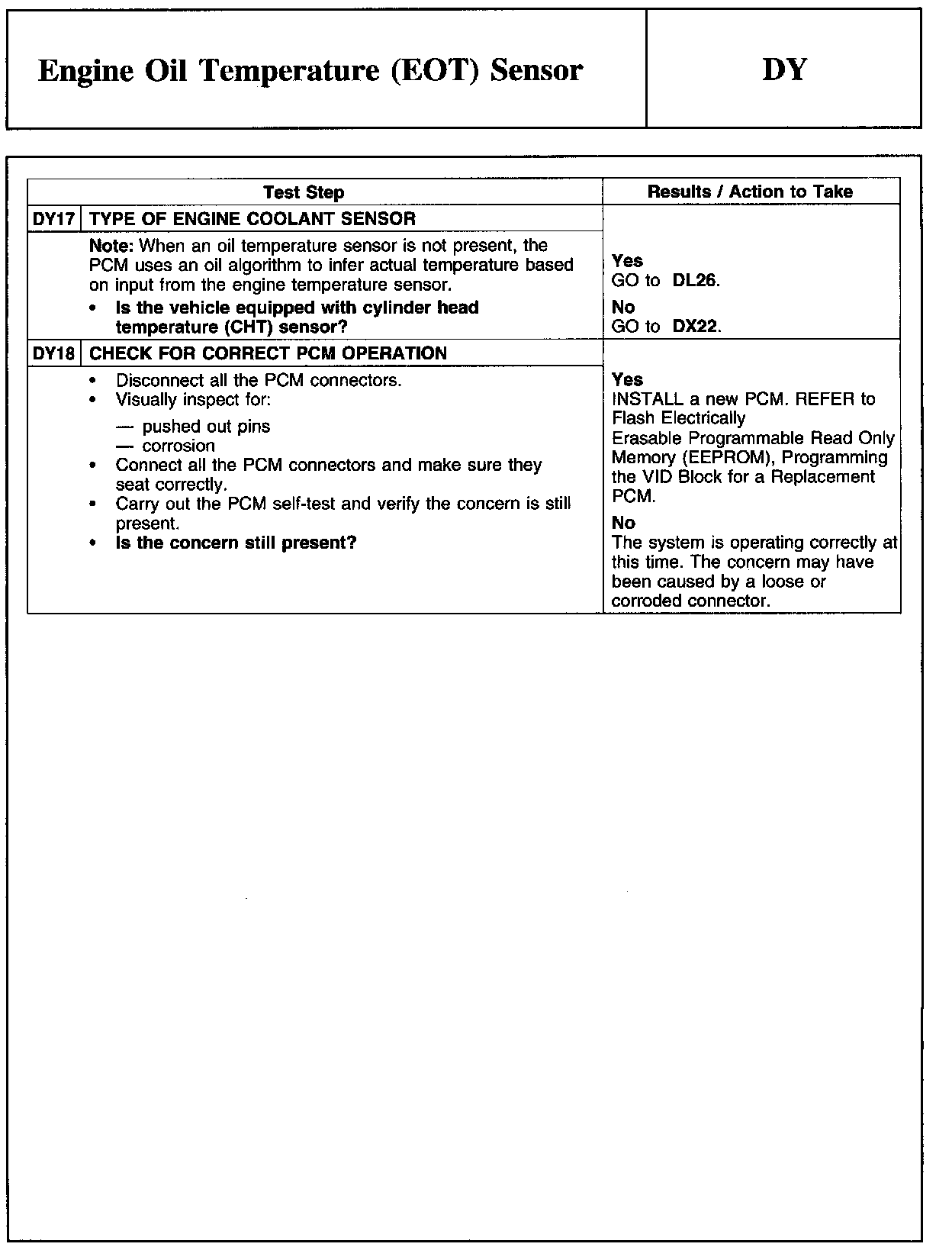

DY17-DY18:
