NC - Ignition Engine Speed Input Circuit

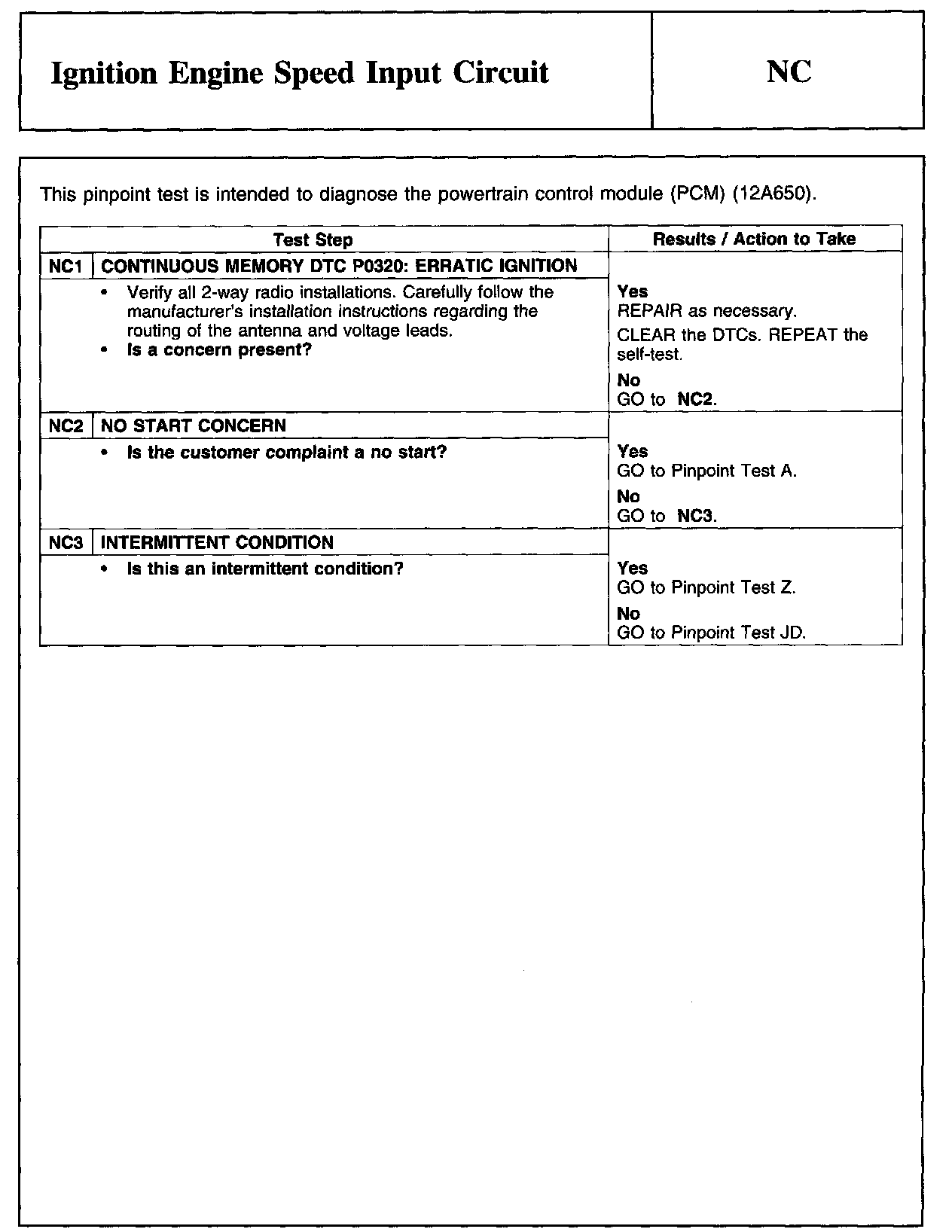

PINPOINT TEST NC: IGNITION ENGINE SPEED INPUT CIRCUIT
NC1-NC3:
