QB - Keep Alive Power (KAPWR)
PINPOINT TEST QB: KEEP ALIVE POWER (KAPWR)

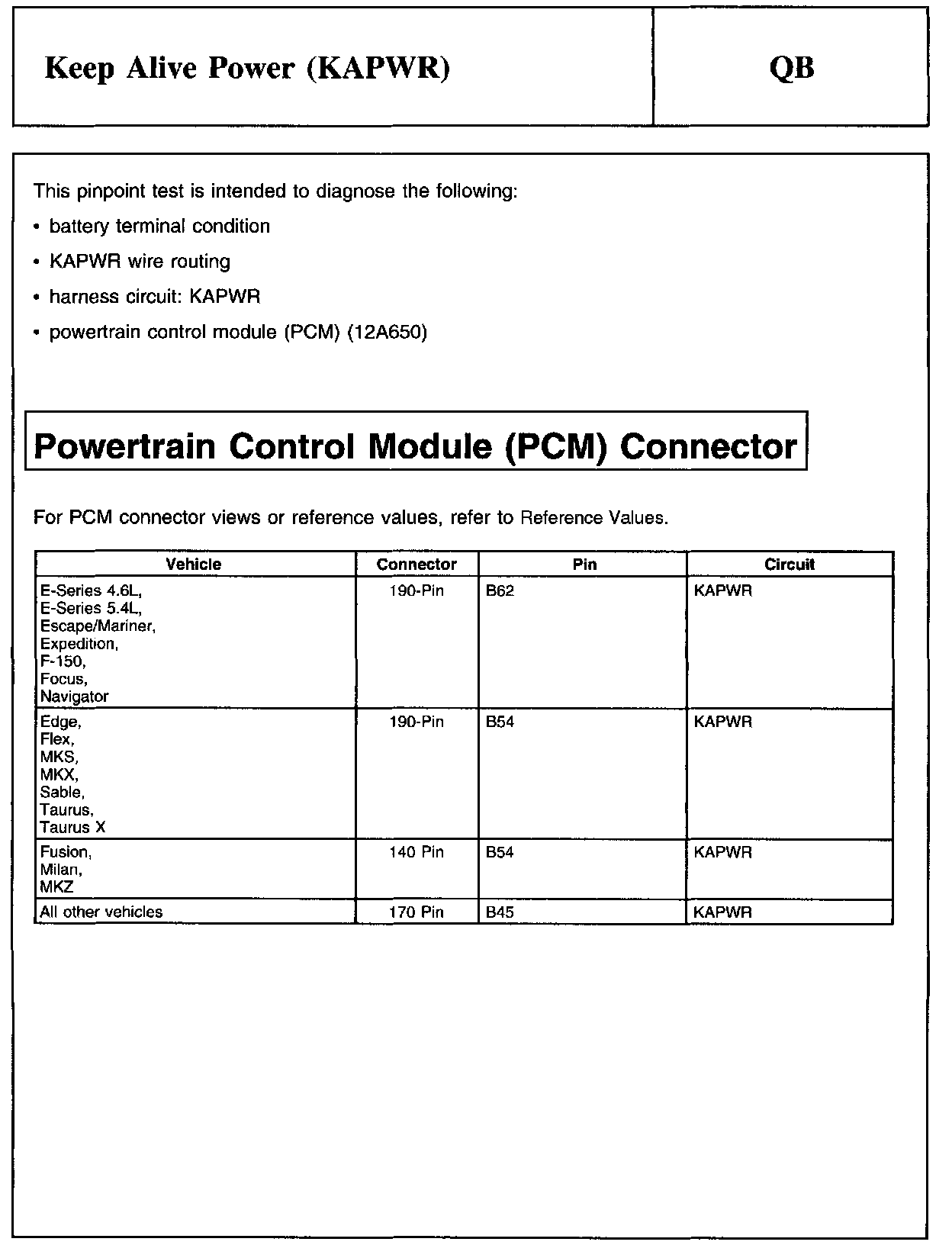

Powertrain Control Module Connector:

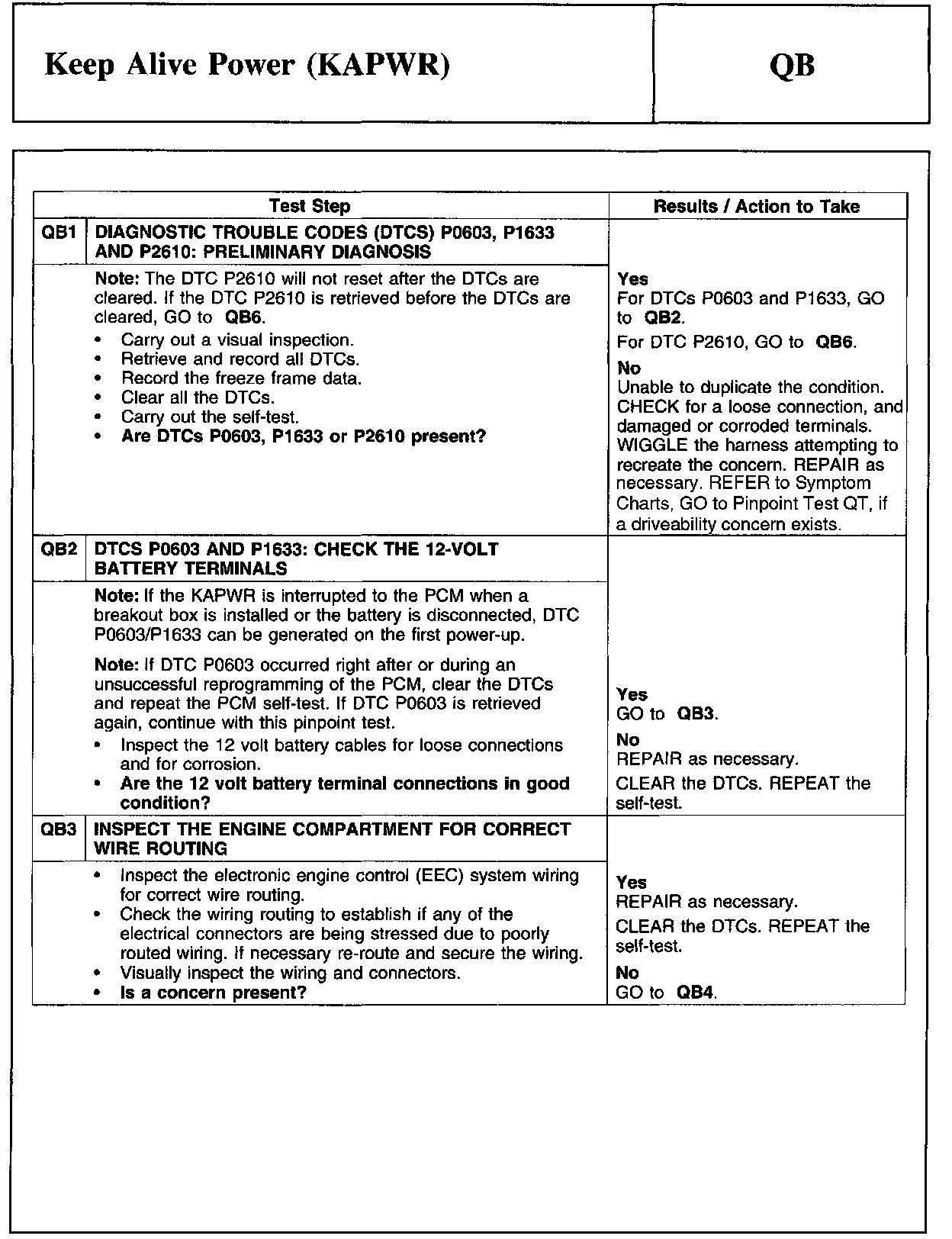

QB1-QB3:

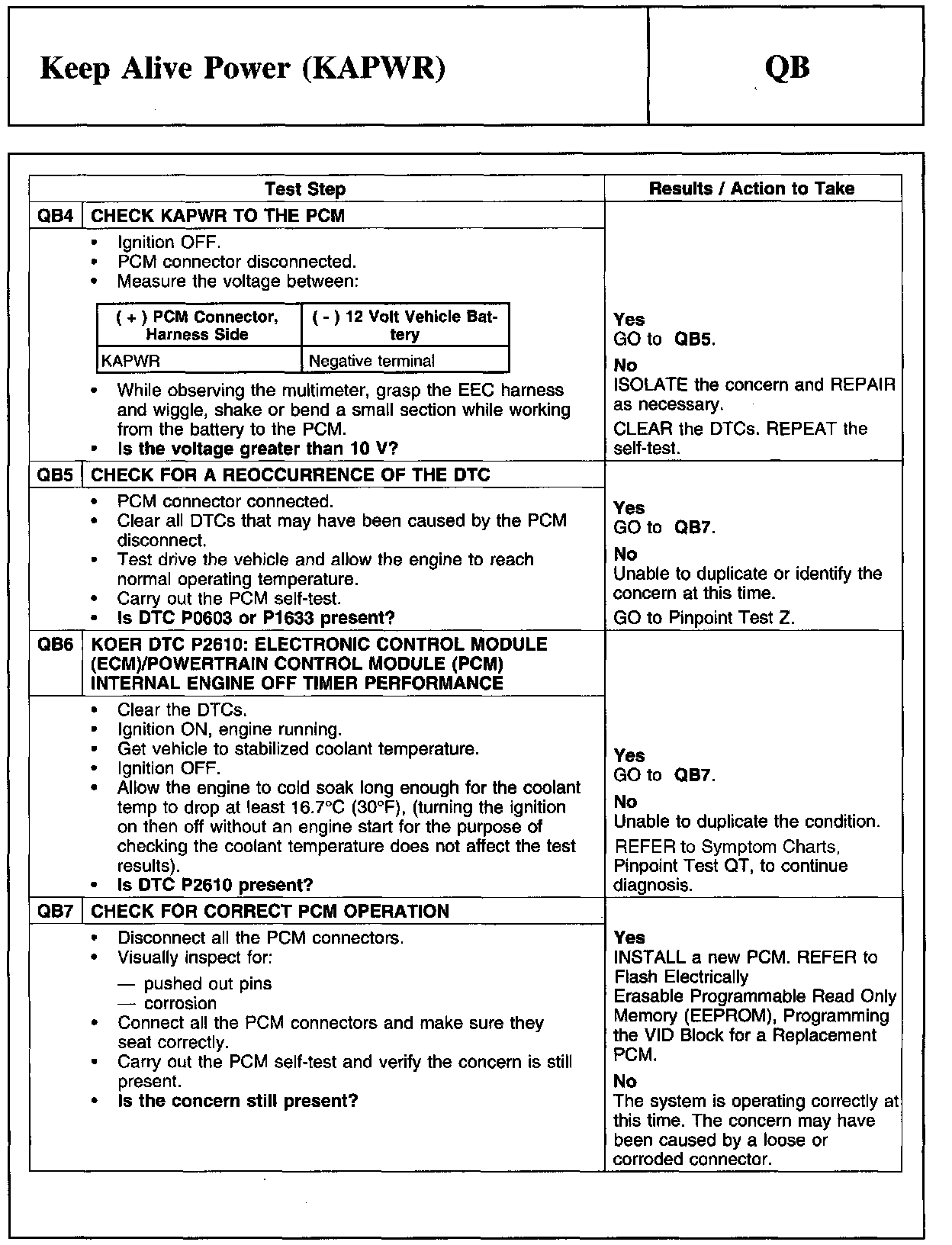

QB4-QB7:
