Transmission Reference Manual

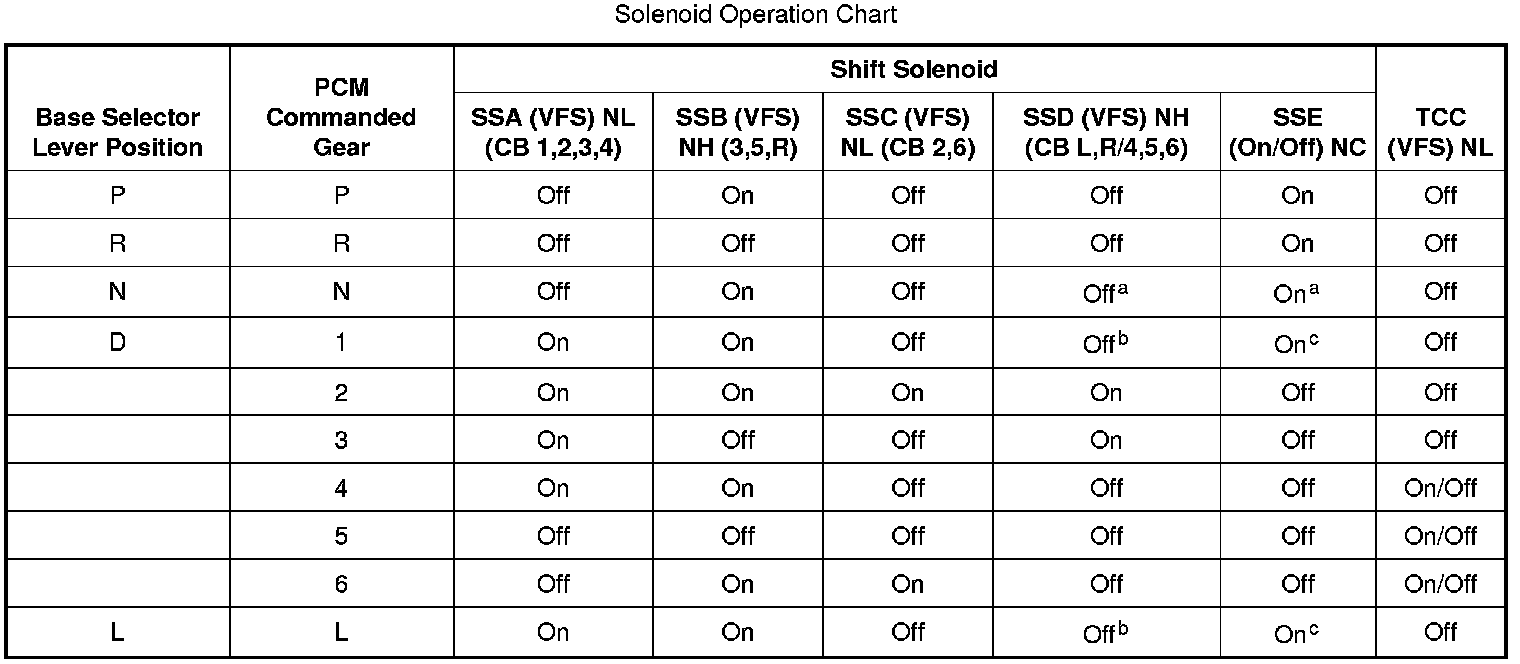

Solenoid Operation Chart:

a Solenoid state will change if vehicle is moving forward with the selector lever in the NEUTRAL position.

b Turns on above 5 km/h (3 mph).

c Turns off above 5 km/h (3 mph).
CB = Clutch brake

NC = Normally closed

NH = Normally high

NL = Normally low

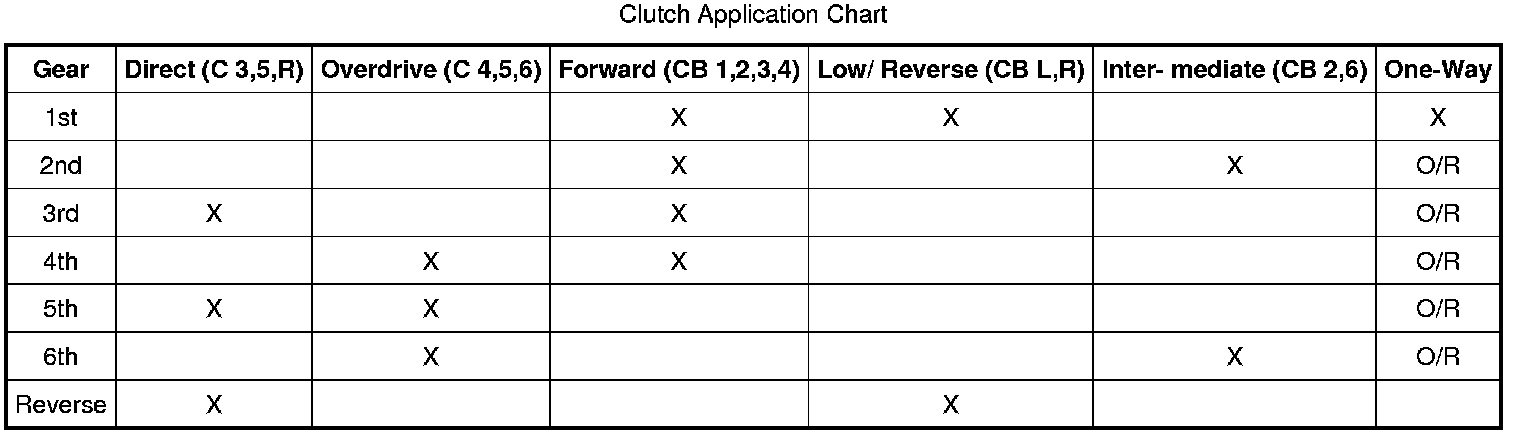

Clutch Application Chart:

CB = Clutch brake

O/R = Overrunning

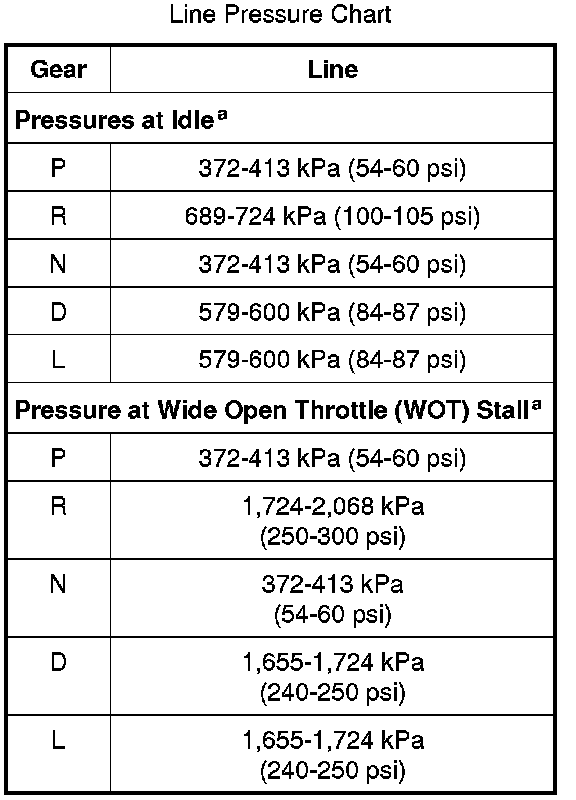

Line Pressure Chart:

a All pressures are approximate.

Stall Speed Chart:

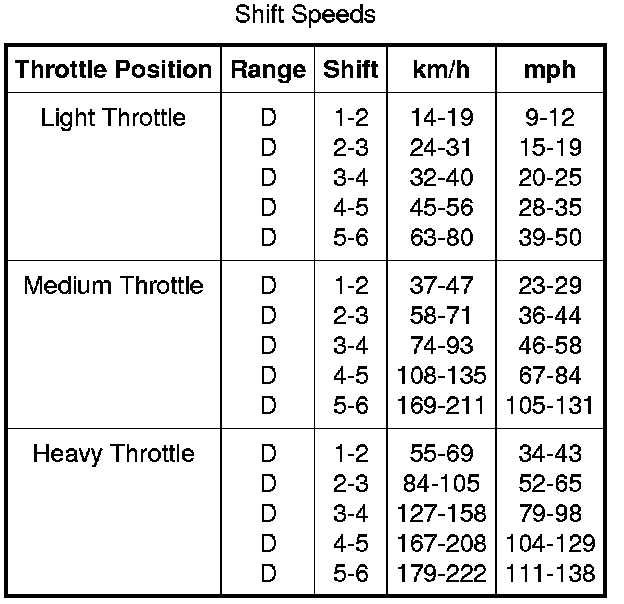

Shift Speeds:

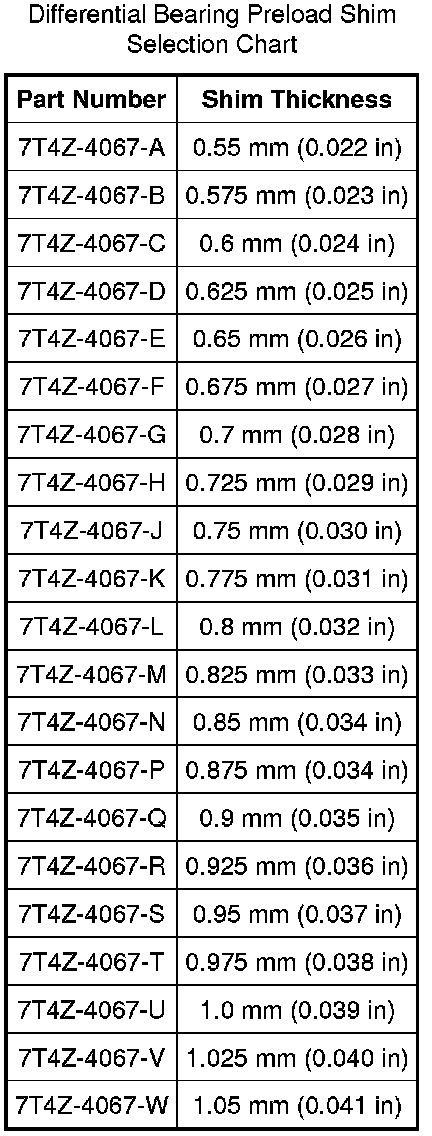

Differential Bearing Preload Shim Selection Chart:

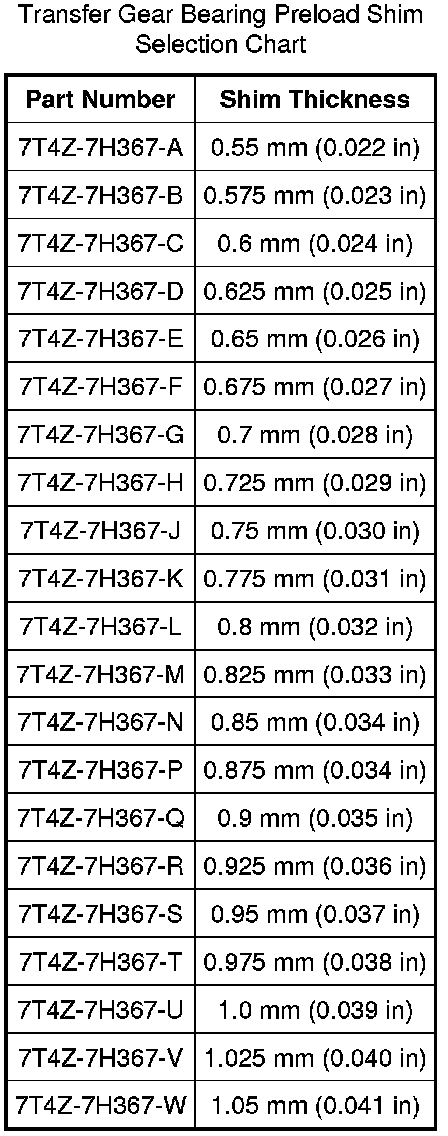

Transfer Gear Bearing Preload Shim Selection Chart:
