Cylinder Head

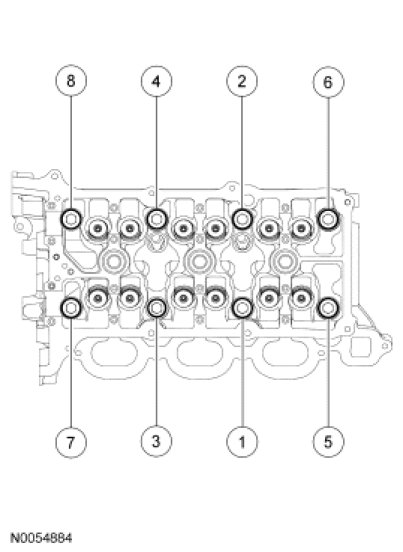

Install a new gasket, the RH cylinder head and 8 new bolts. Tighten in the sequence shown in 5 stages:
Stage 1: Tighten to 20 Nm (177 lb-in).
Stage 2: Tighten to 35 Nm (26 lb-ft).
Stage 3: Tighten 90 degrees.
Stage 4: Tighten 90 degrees.
Stage 5: Tighten 90 degrees.

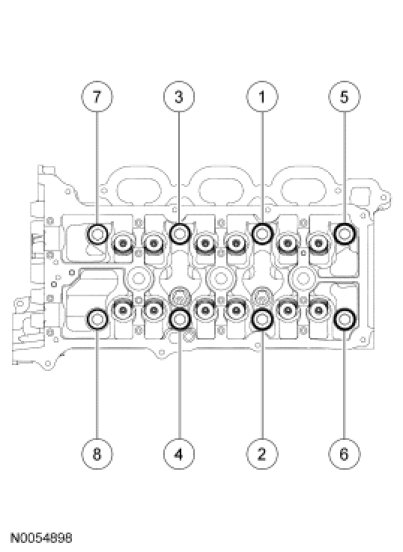

Install a new gasket, the LH cylinder head and 8 new bolts. Tighten in the sequence shown in 5 stages:
Stage 1: Tighten to 20 Nm (177 lb-in).
Stage 2: Tighten to 35 Nm (26 lb-ft).
Stage 3: Tighten 90 degrees.
Stage 4: Tighten 90 degrees.
Stage 5: Tighten 90 degrees.
