Interior Lighting Module: Service and Repair

Ambient Lighting Module

NOTE: Edge shown, MKX similar.

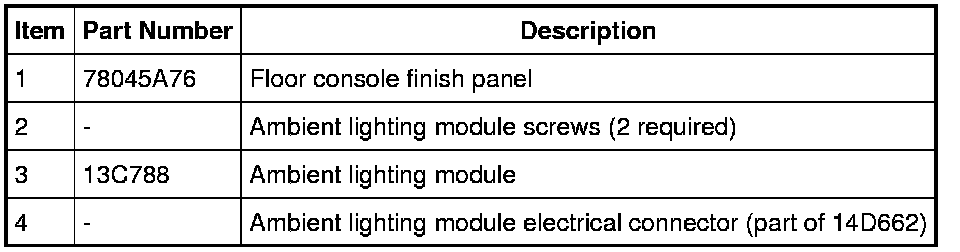

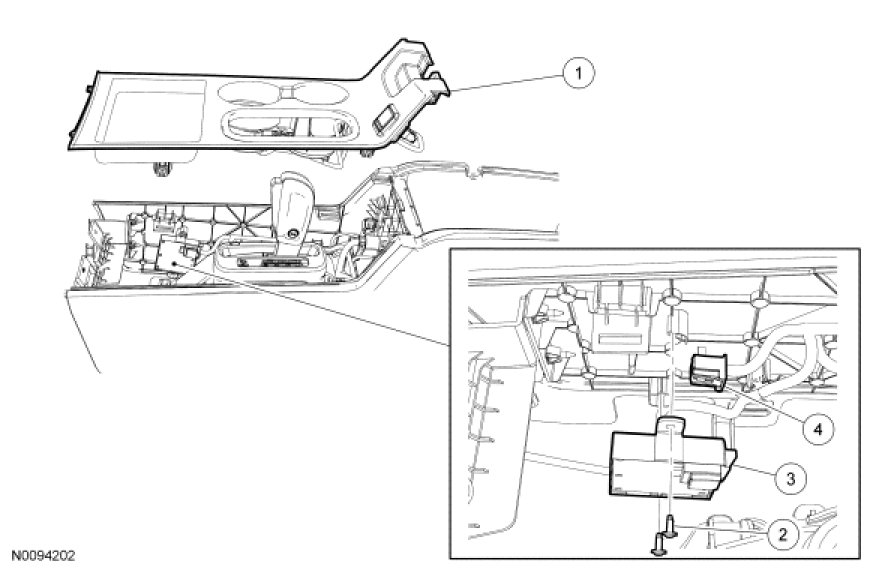

Removal and Installation

1. Open the storage compartment door.

2. Remove the floor console finish panel.
- Pull up on the rear of the floor console finish panel to release the clips.

- Disconnect the electrical connector.

3. Remove the 2 screws and the ambient lighting module.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
