H - Fuel Control

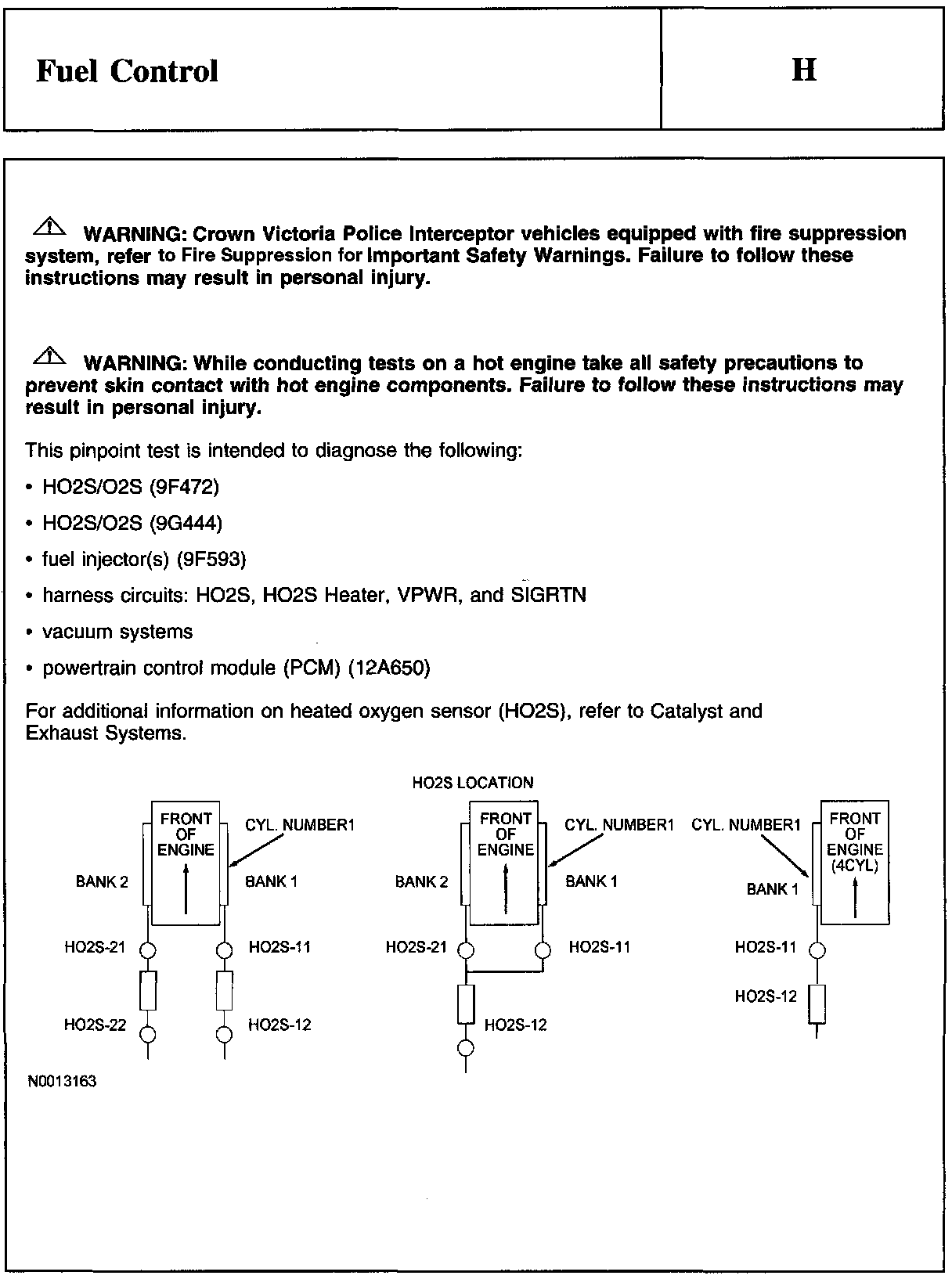

WARNING:

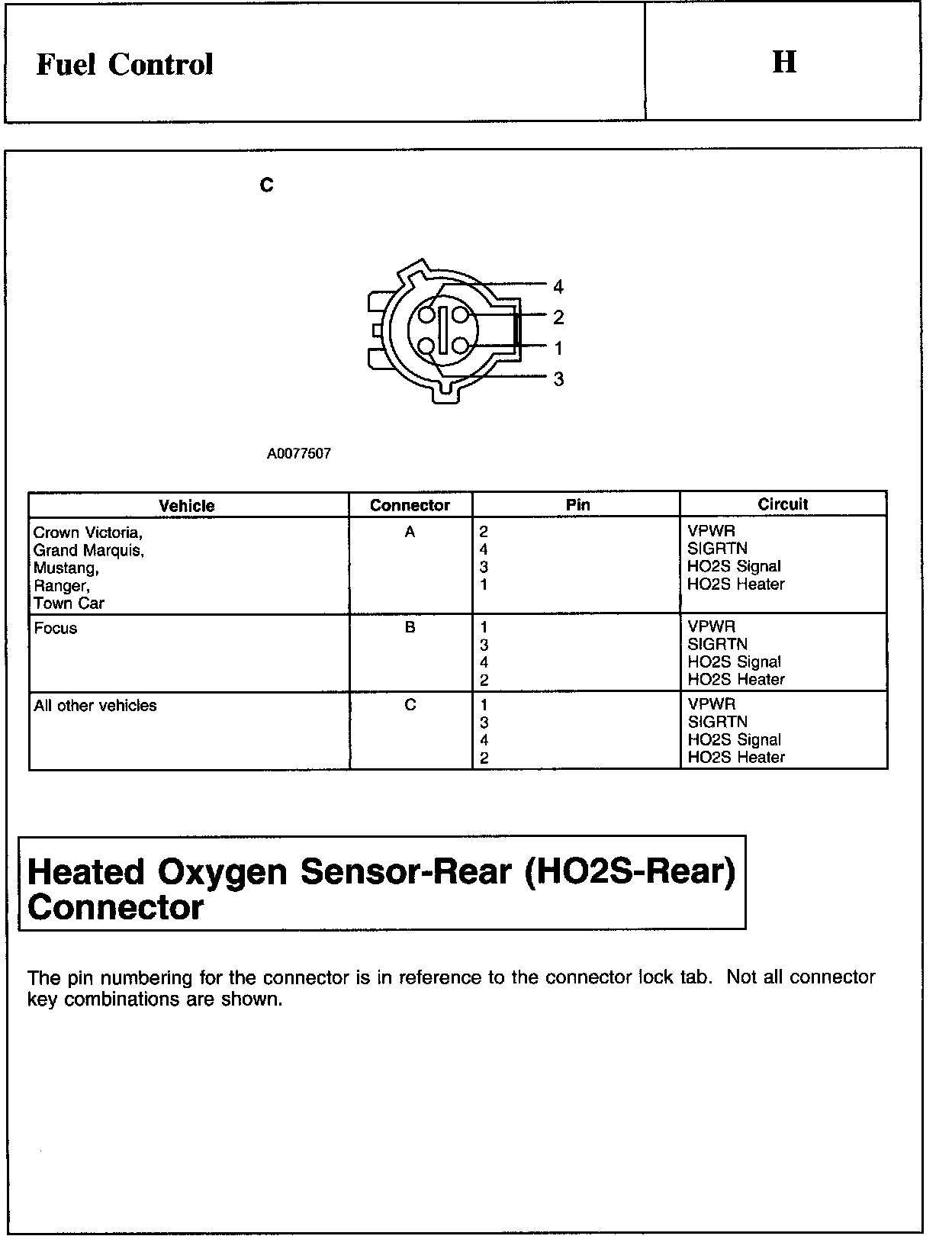

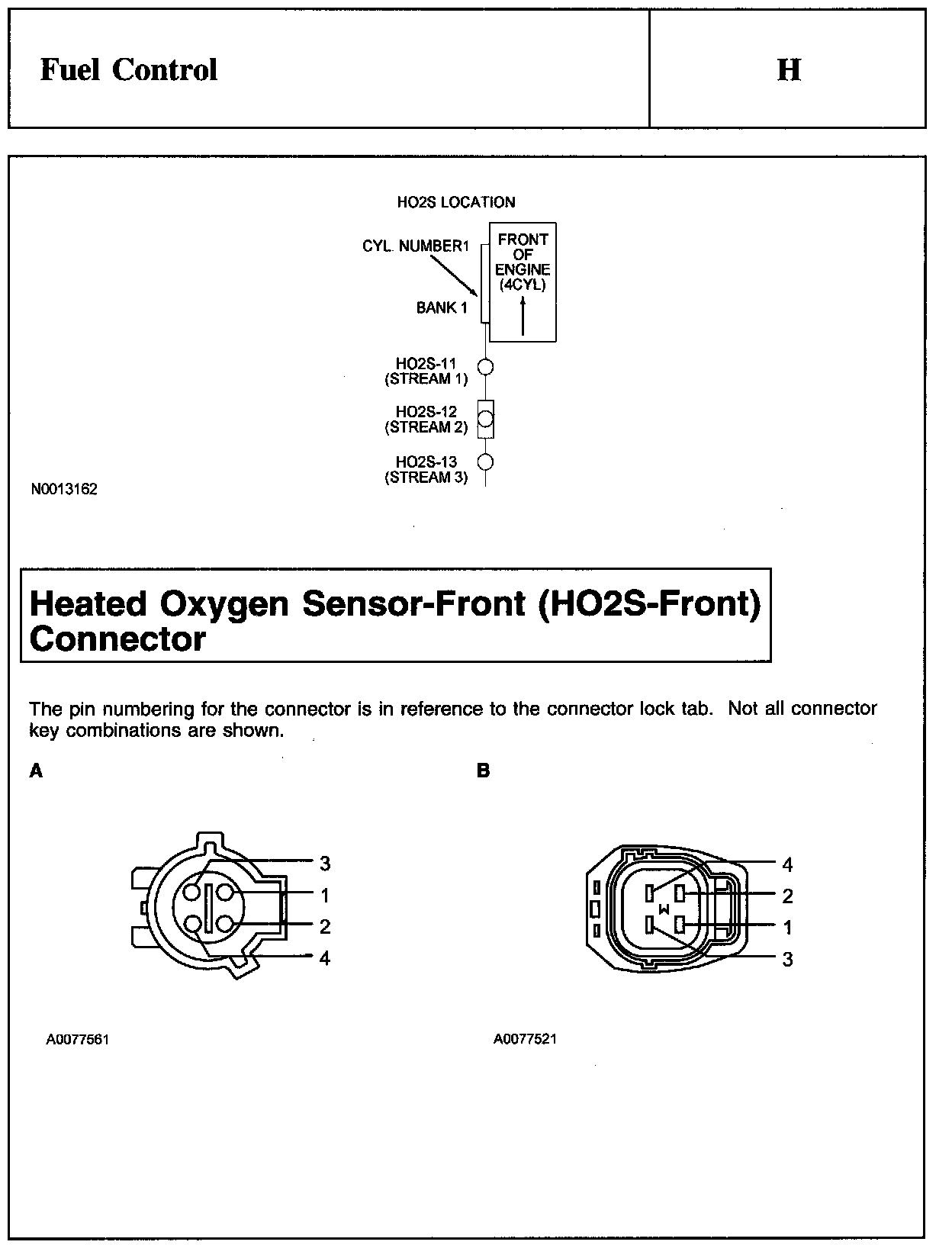

Heated Oxygen Sensor-front Connector:

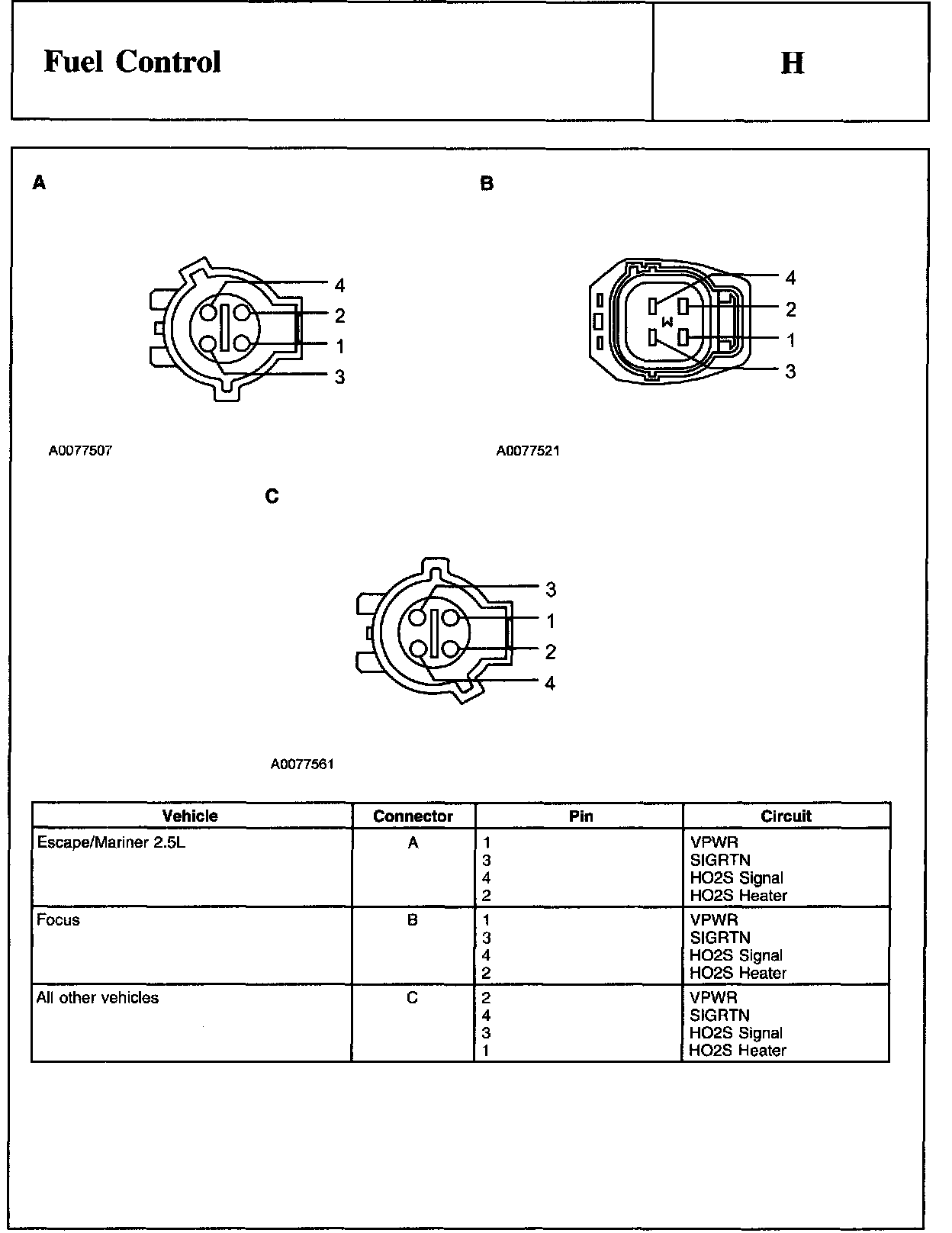

Heated Oxygen Sensor-Rear Connector (Part 1):

Heated Oxygen Sensor-Rear Connector (Part 2):

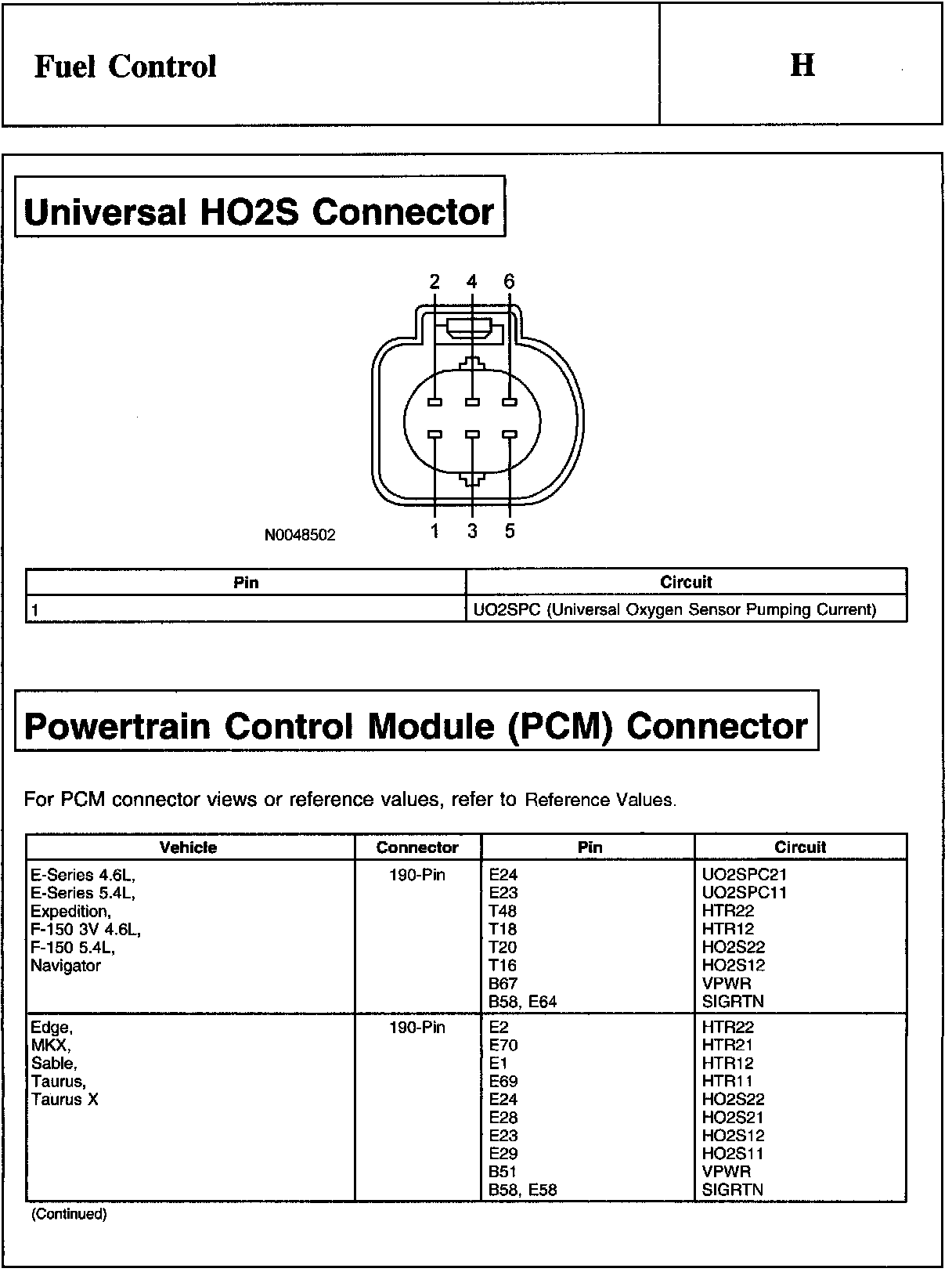

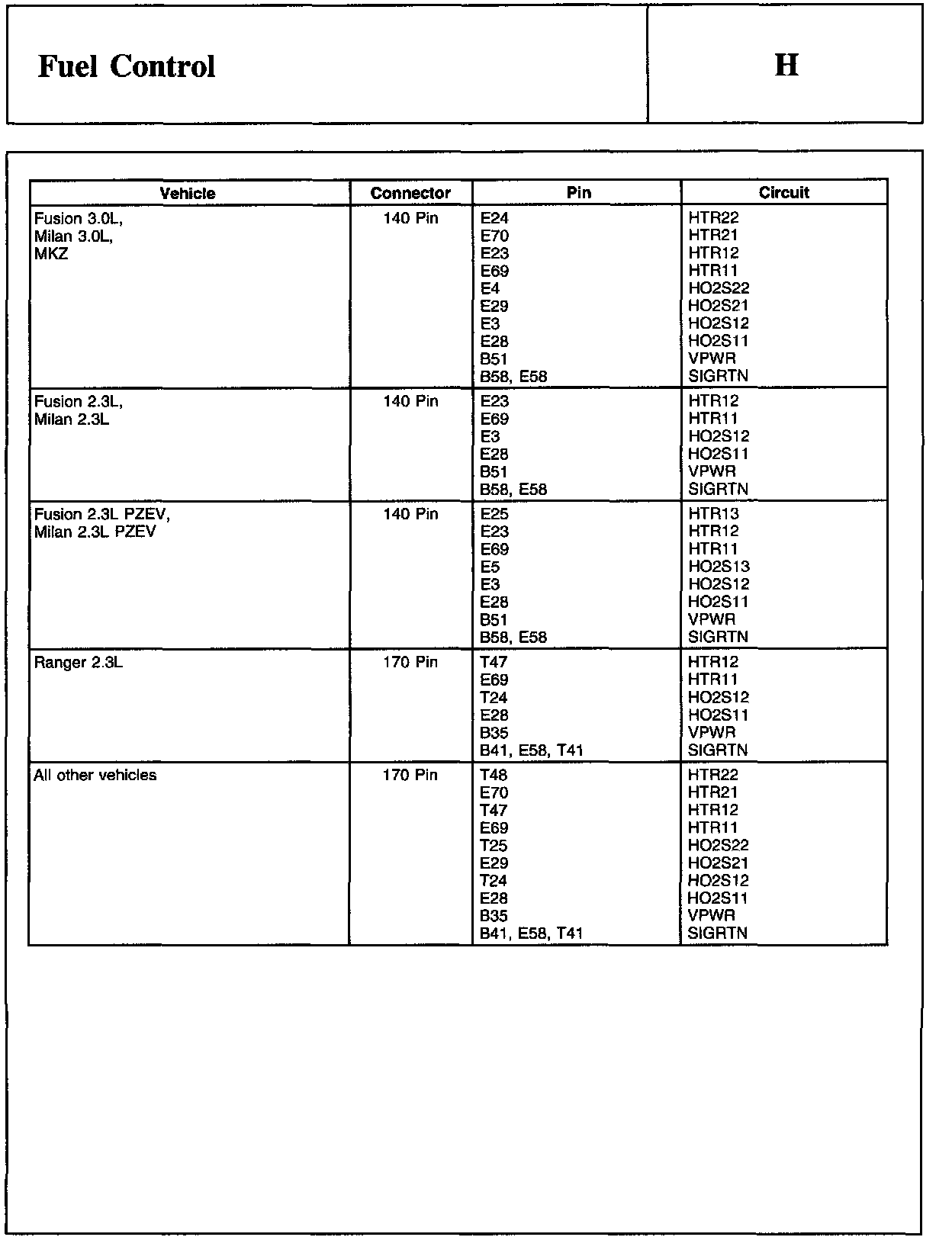

Universal HO2S And Powertrain Control Module Connector:

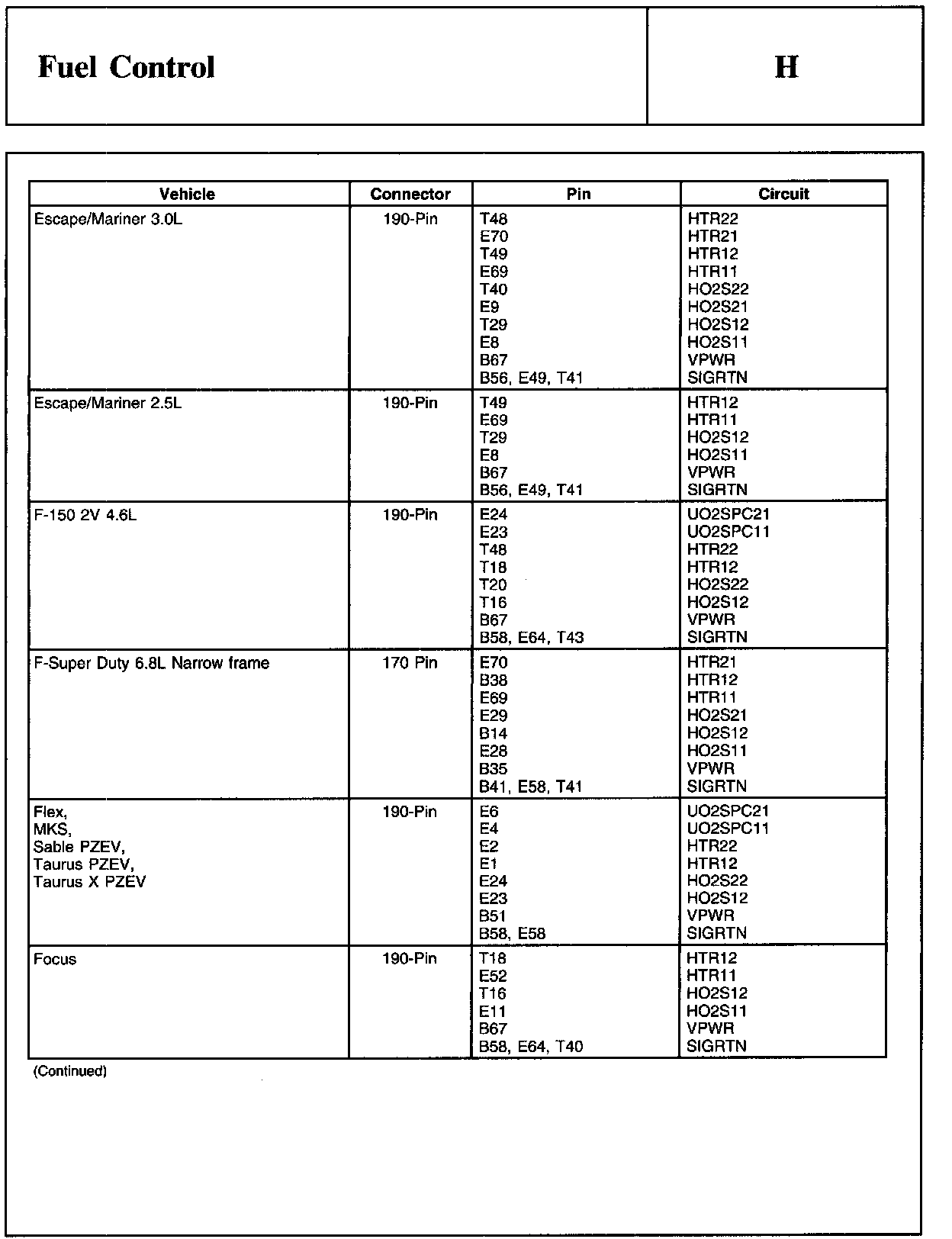

Powertrain Control Module Connector (Continued):

Powertrain Control Module Connector (Continued):

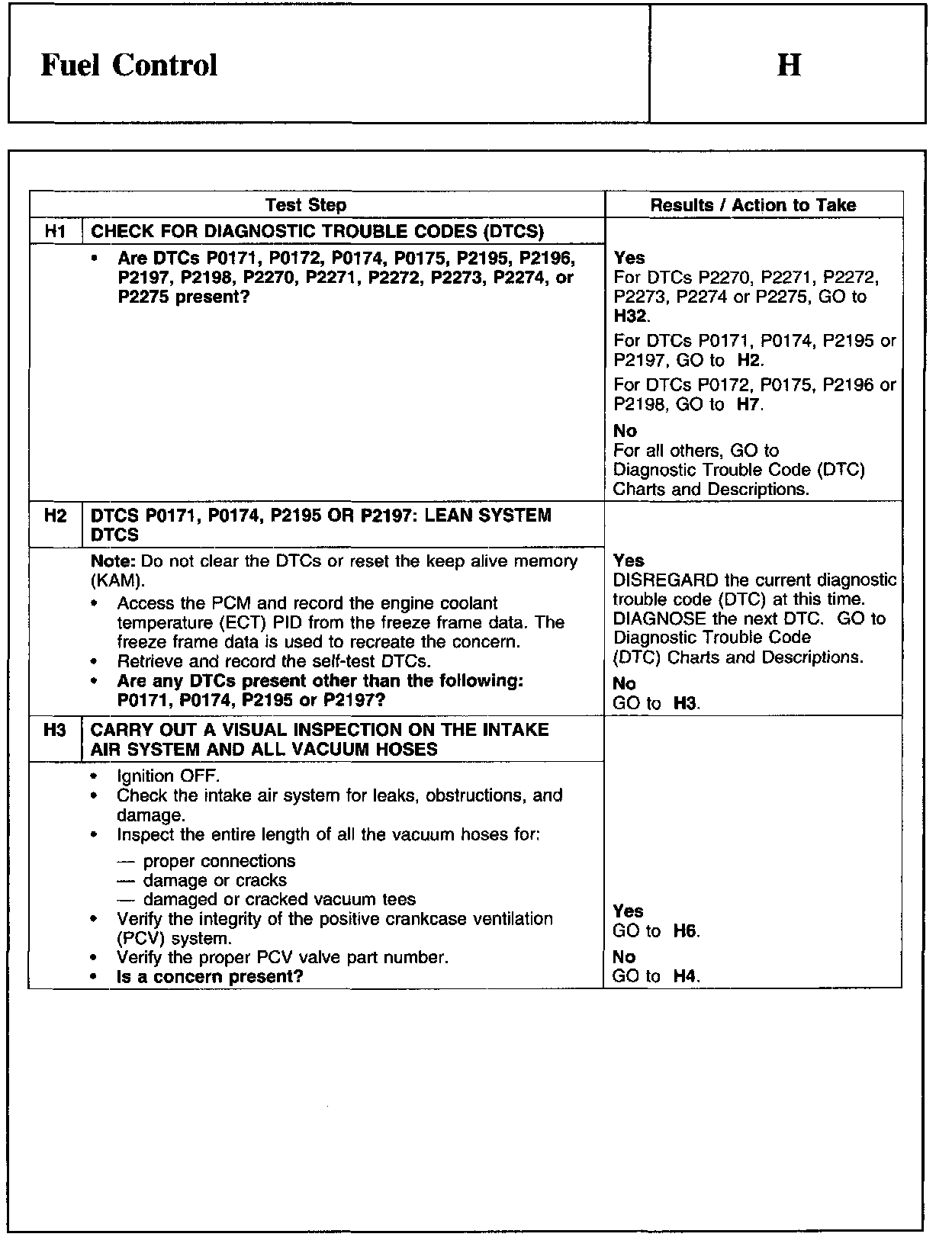

H1-H3:

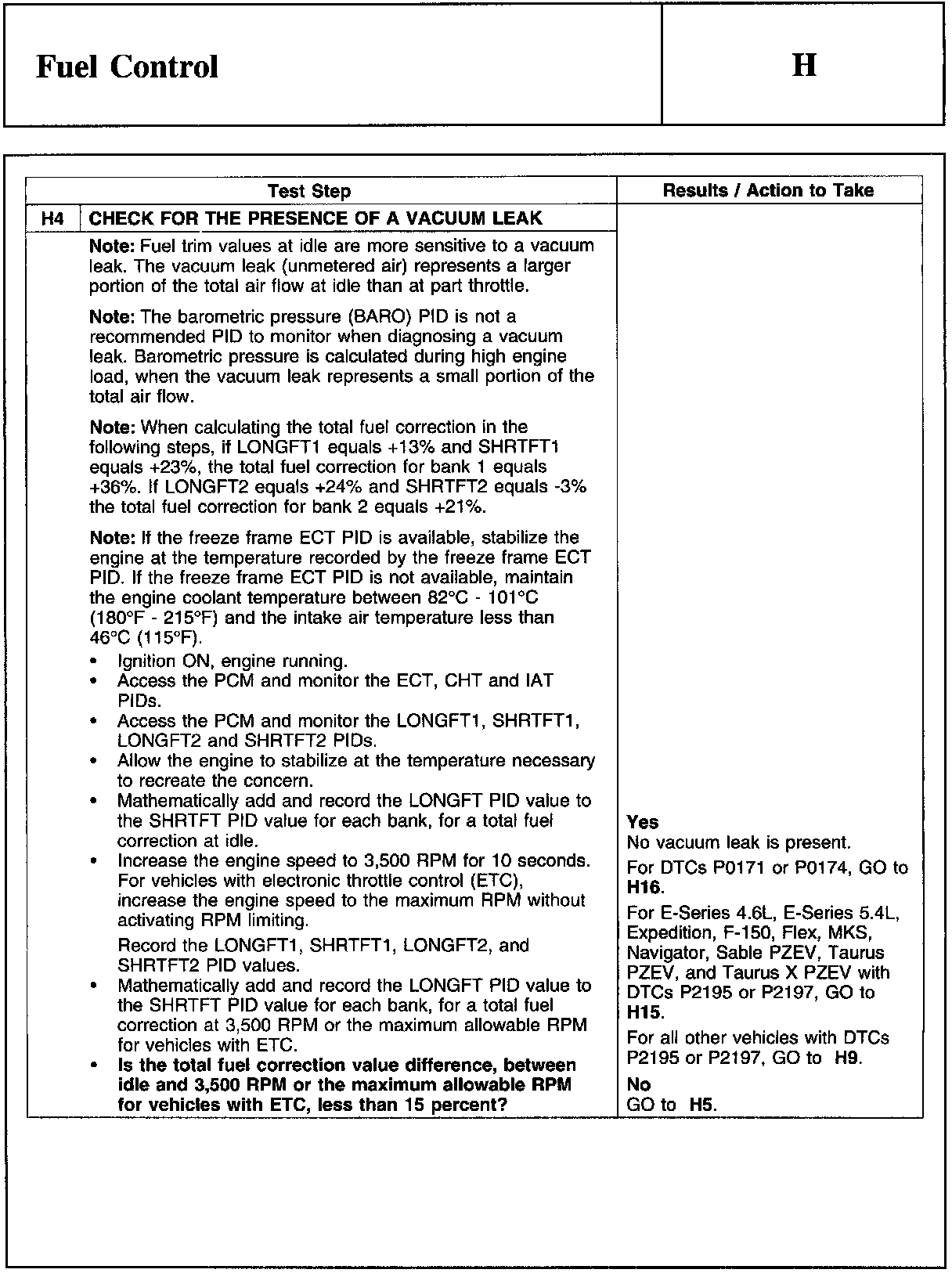

H4:

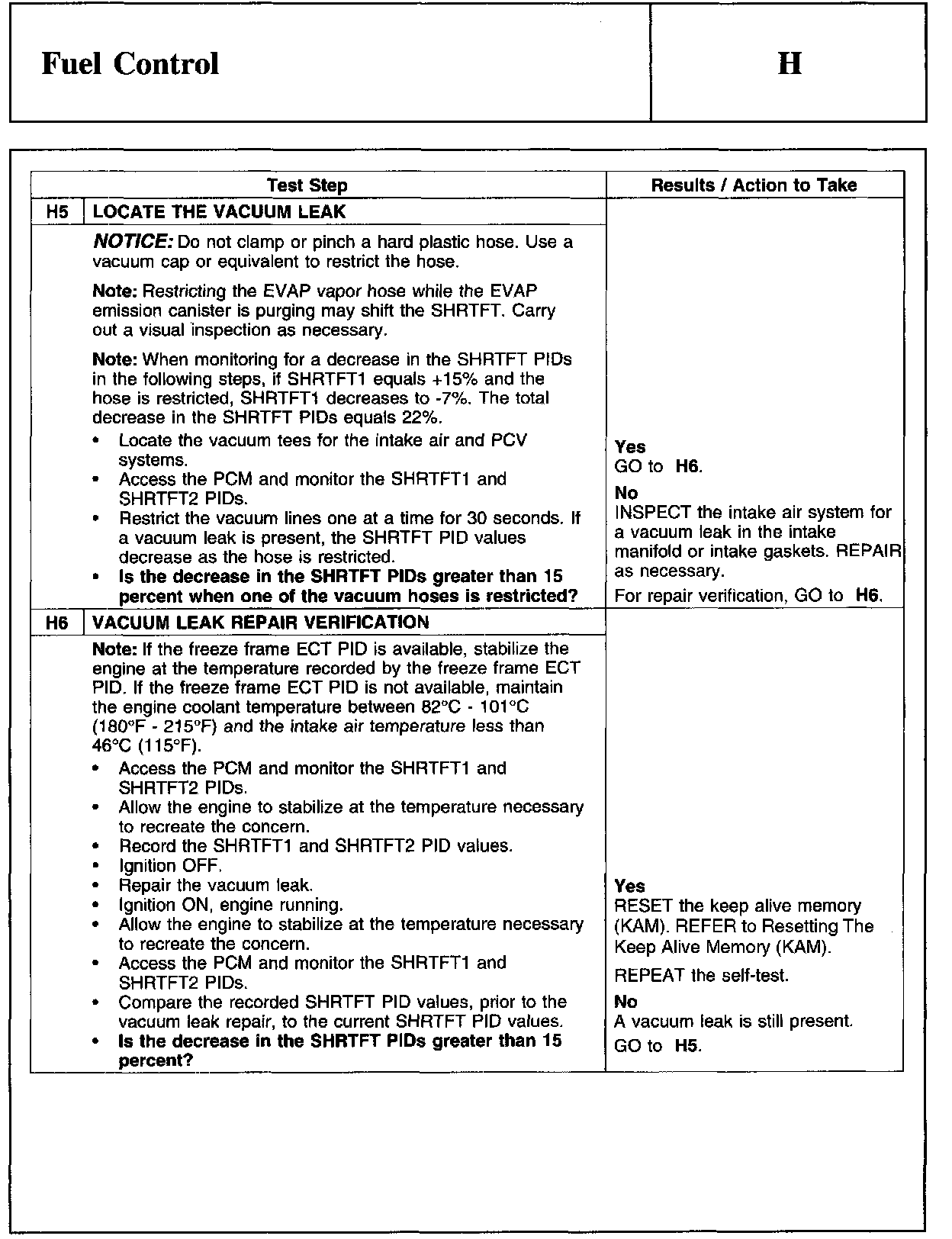

H5-H6:

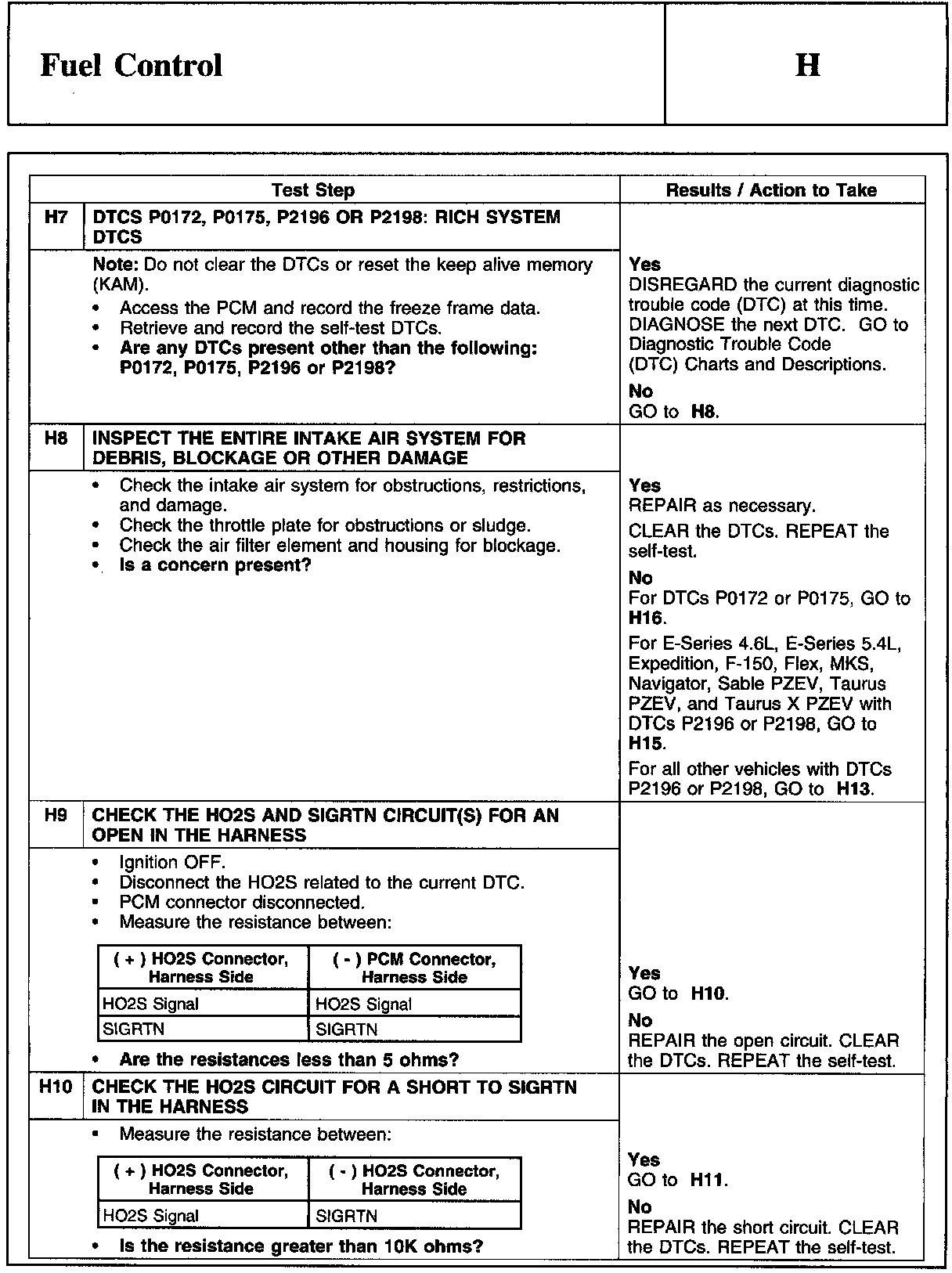

H7-H10:

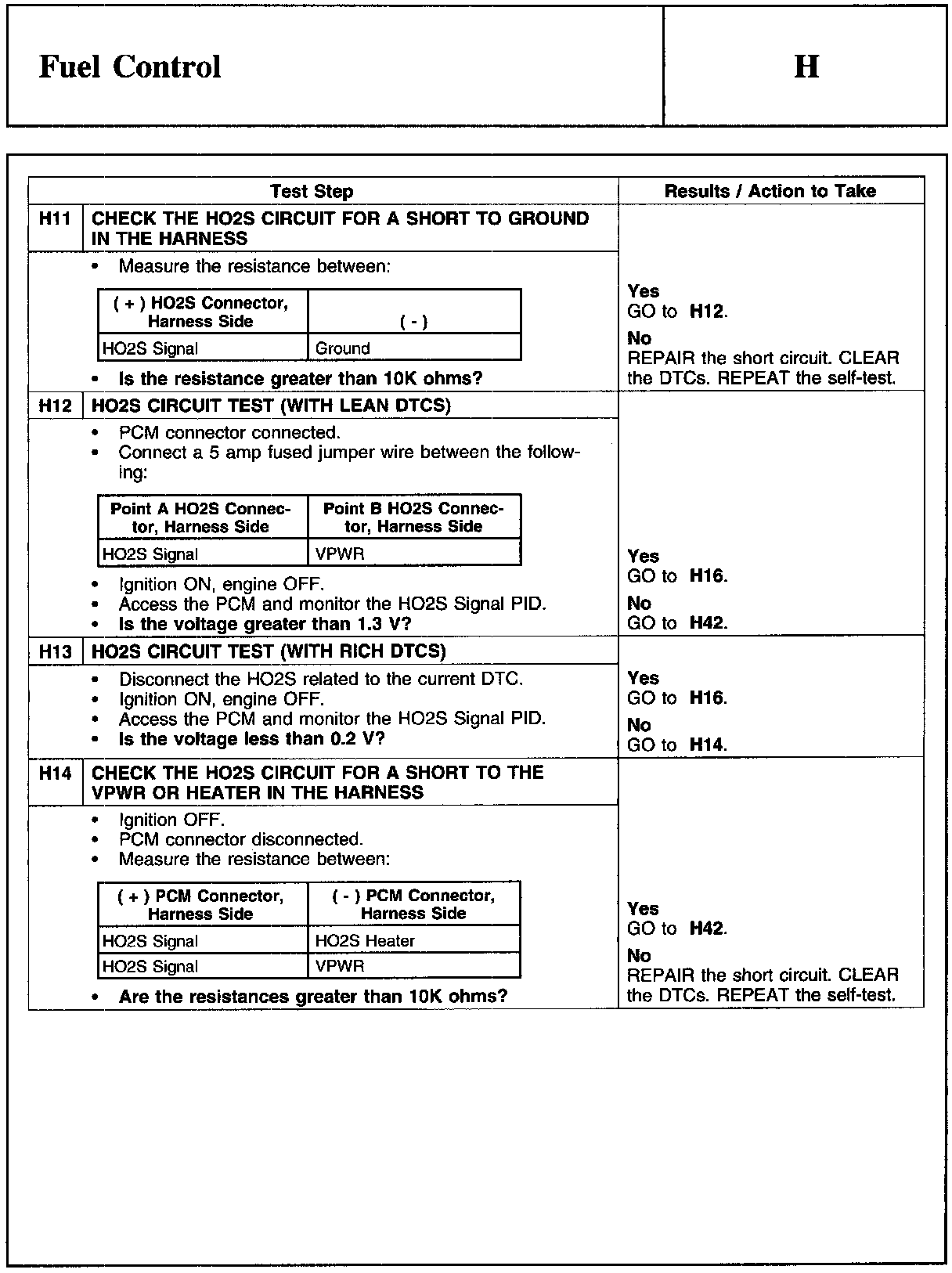

H11-H14:

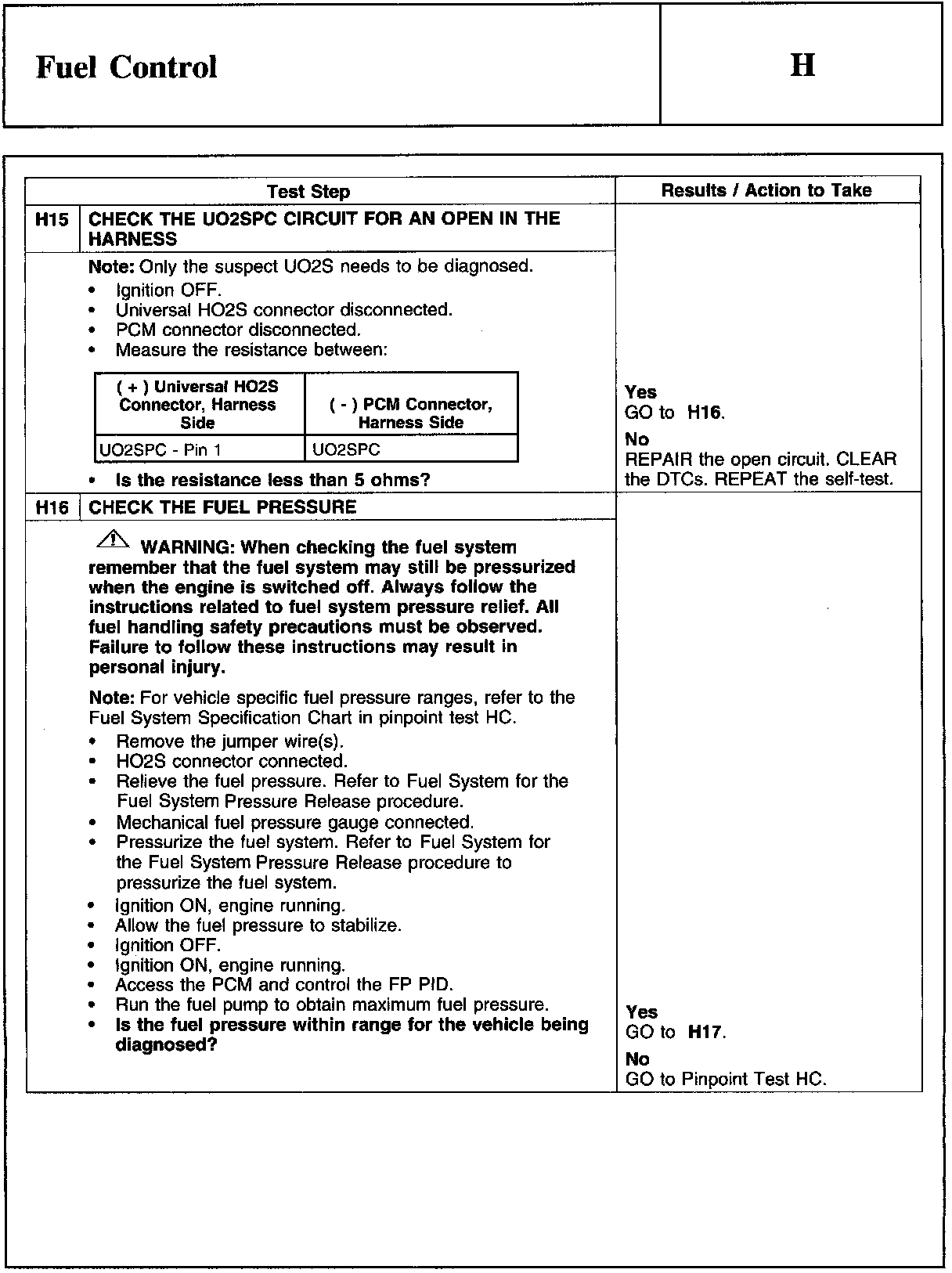

H15-H16:

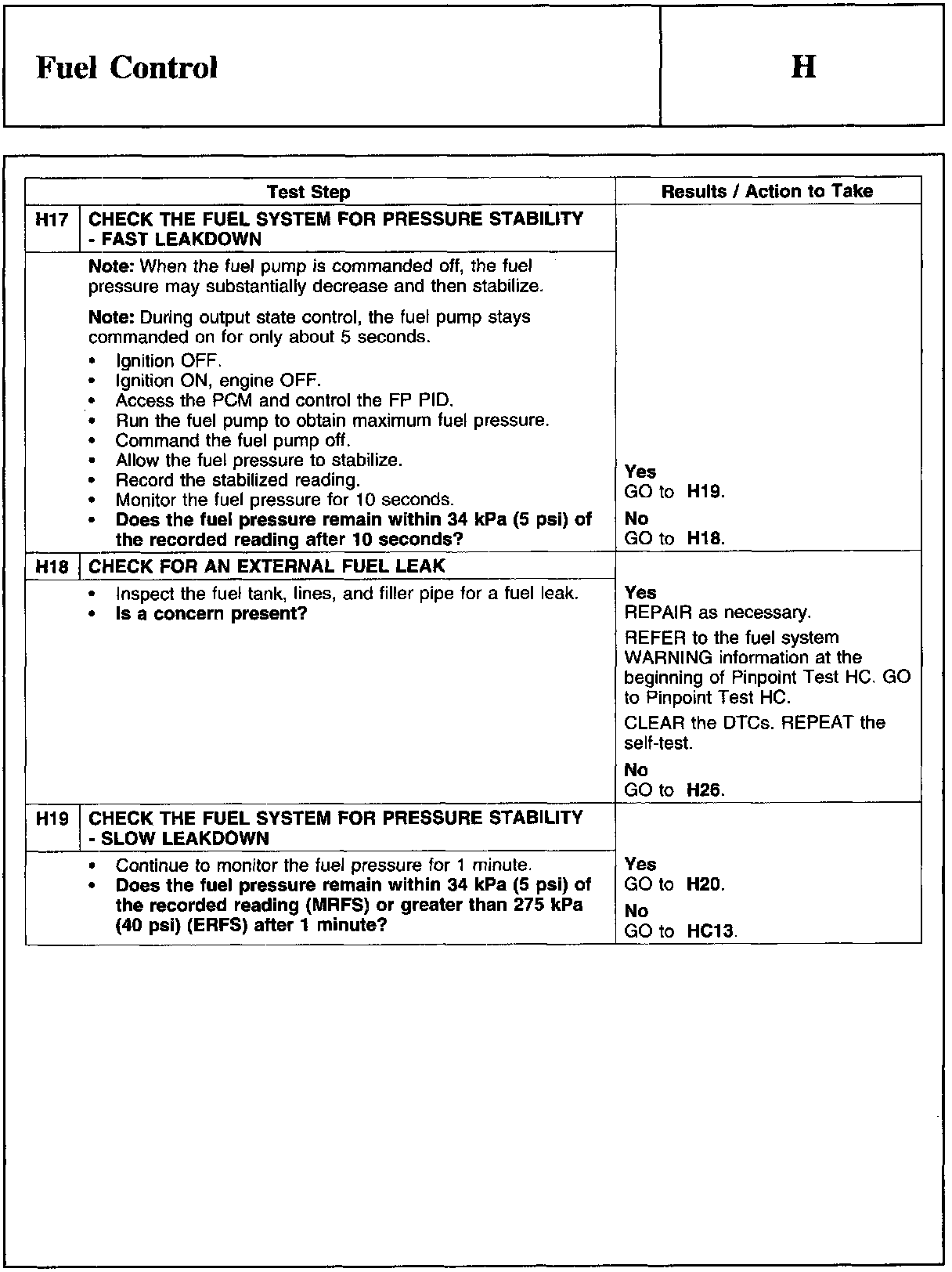

H17-H19:

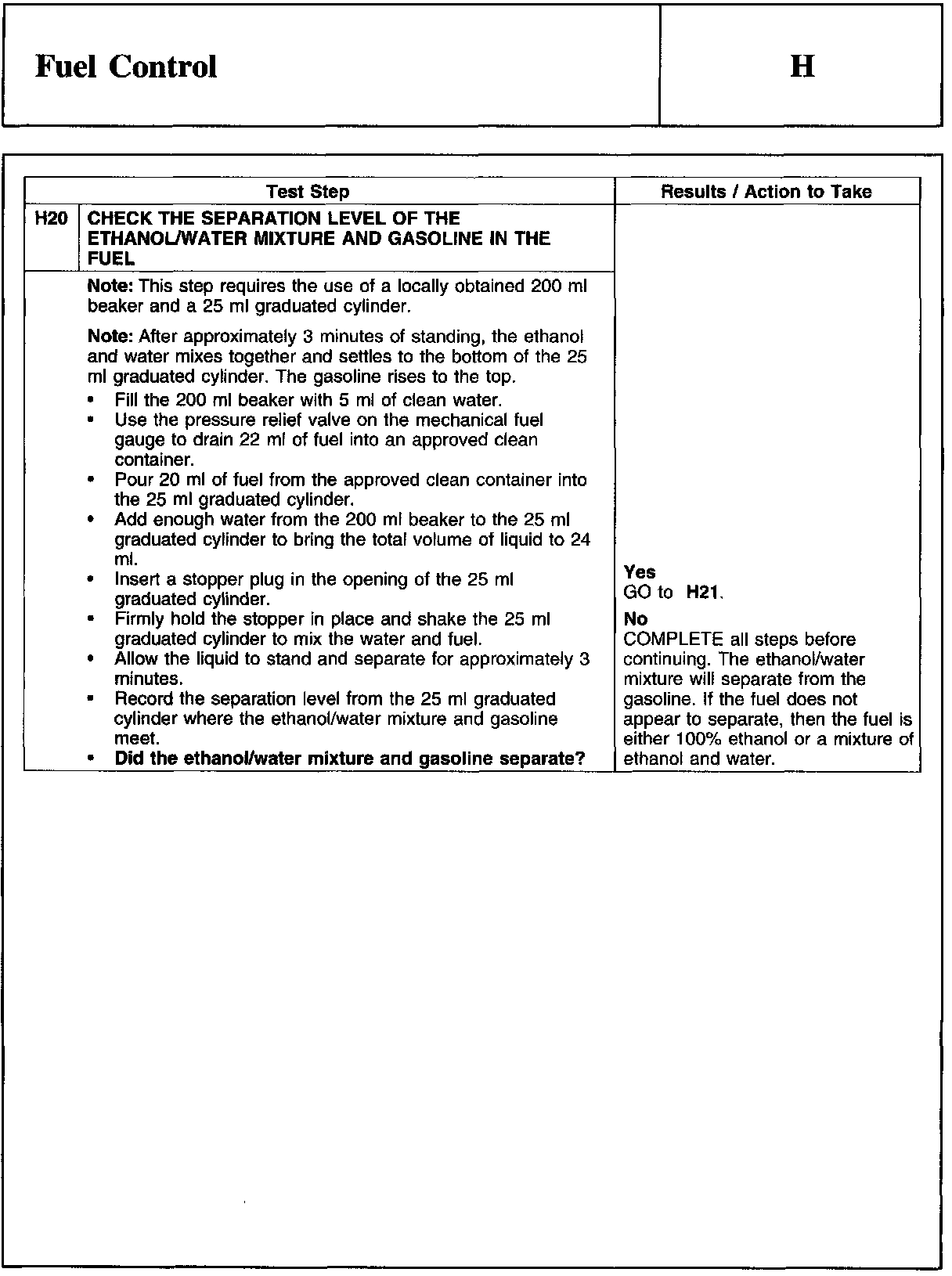

H20:

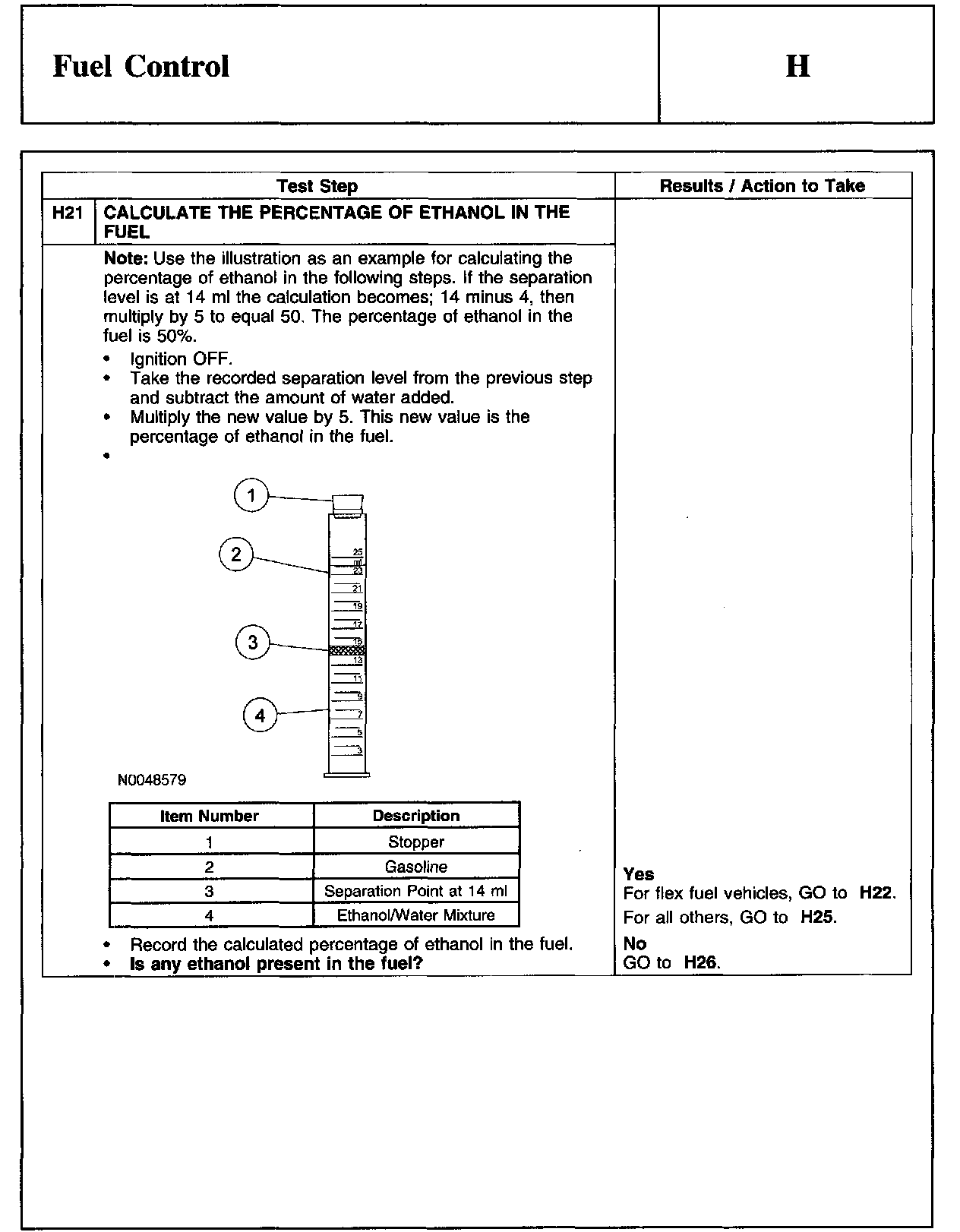

H21:

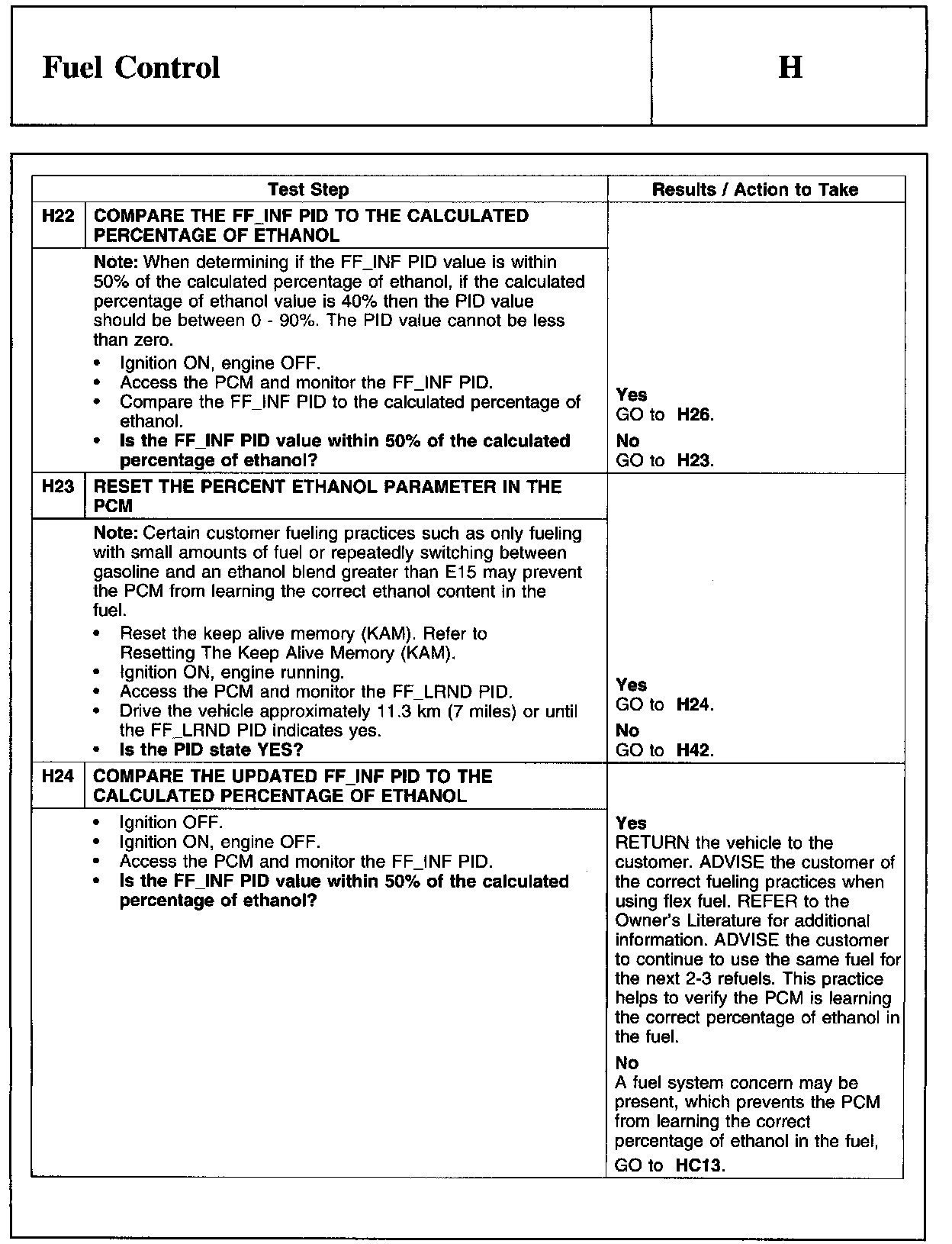

H22-H24:

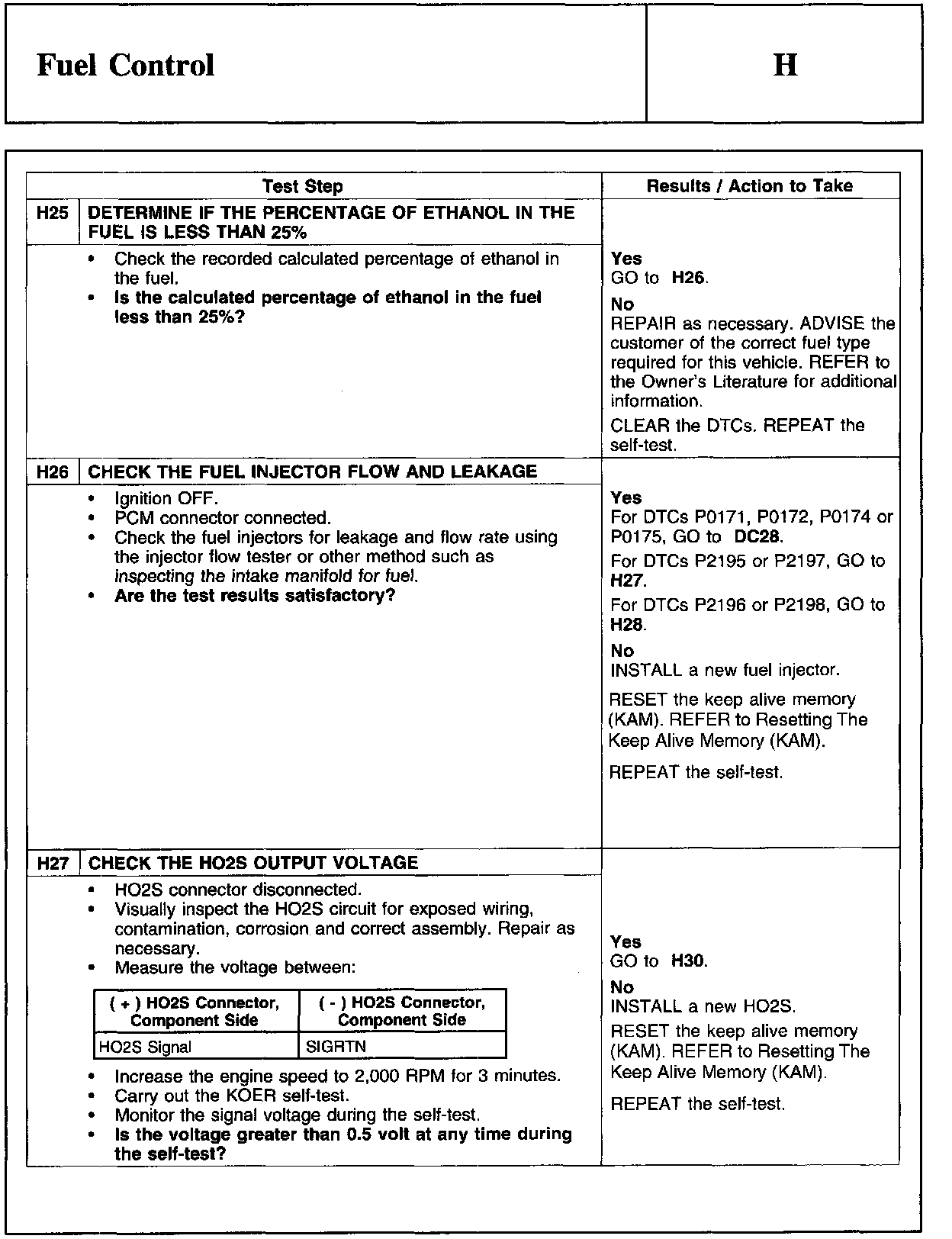

H25-H27:

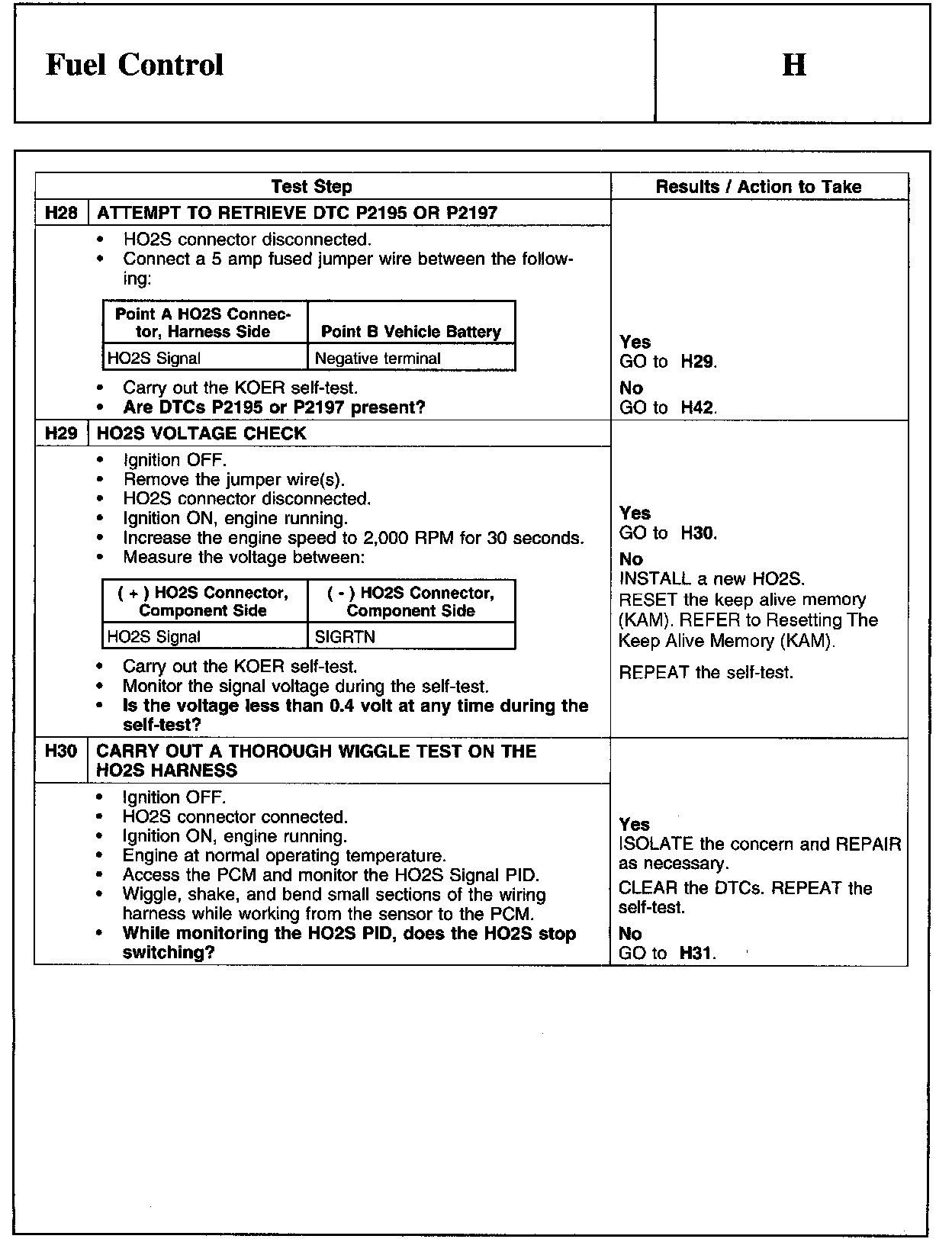

H28-H30:

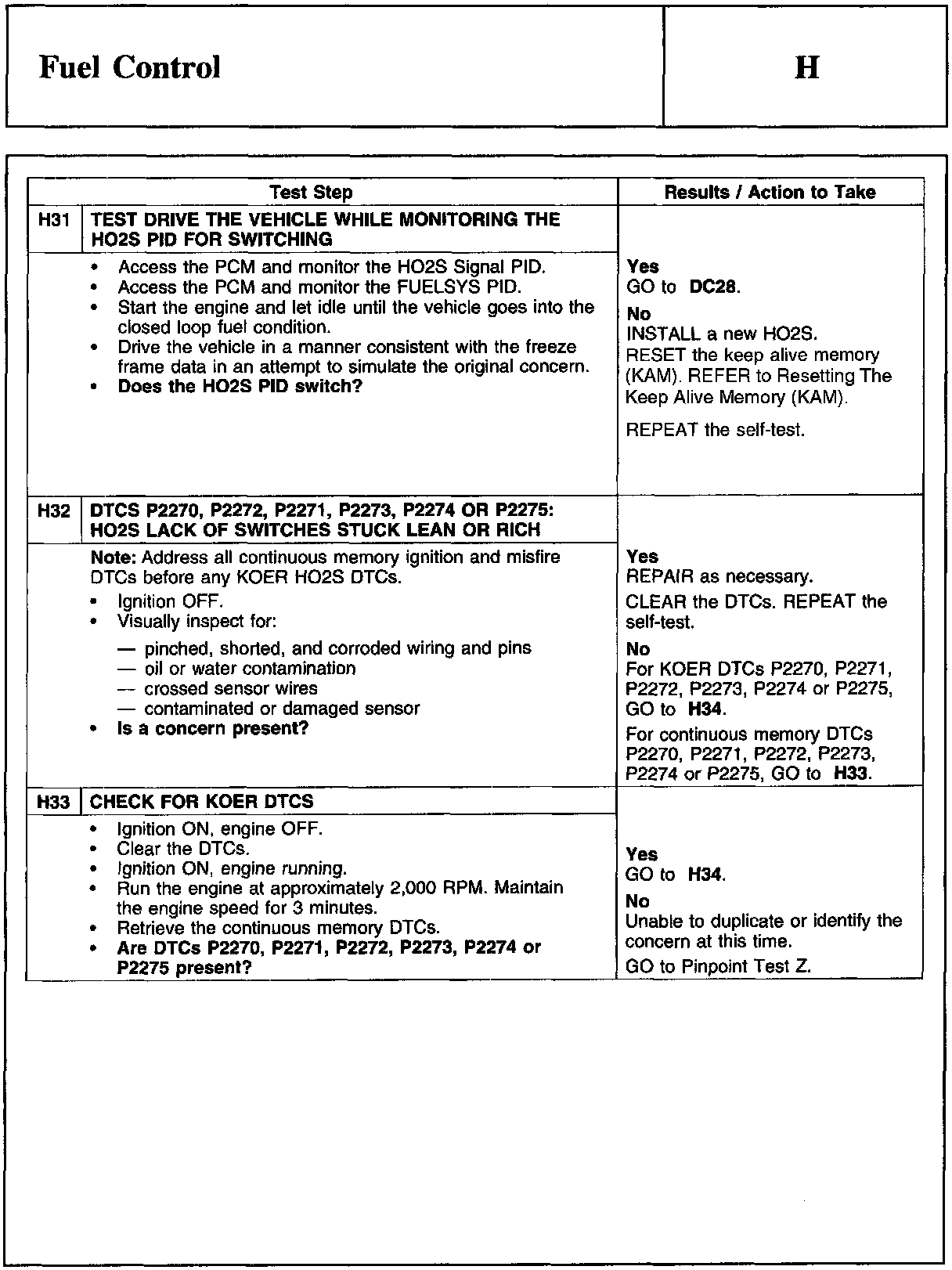

H31-H33:

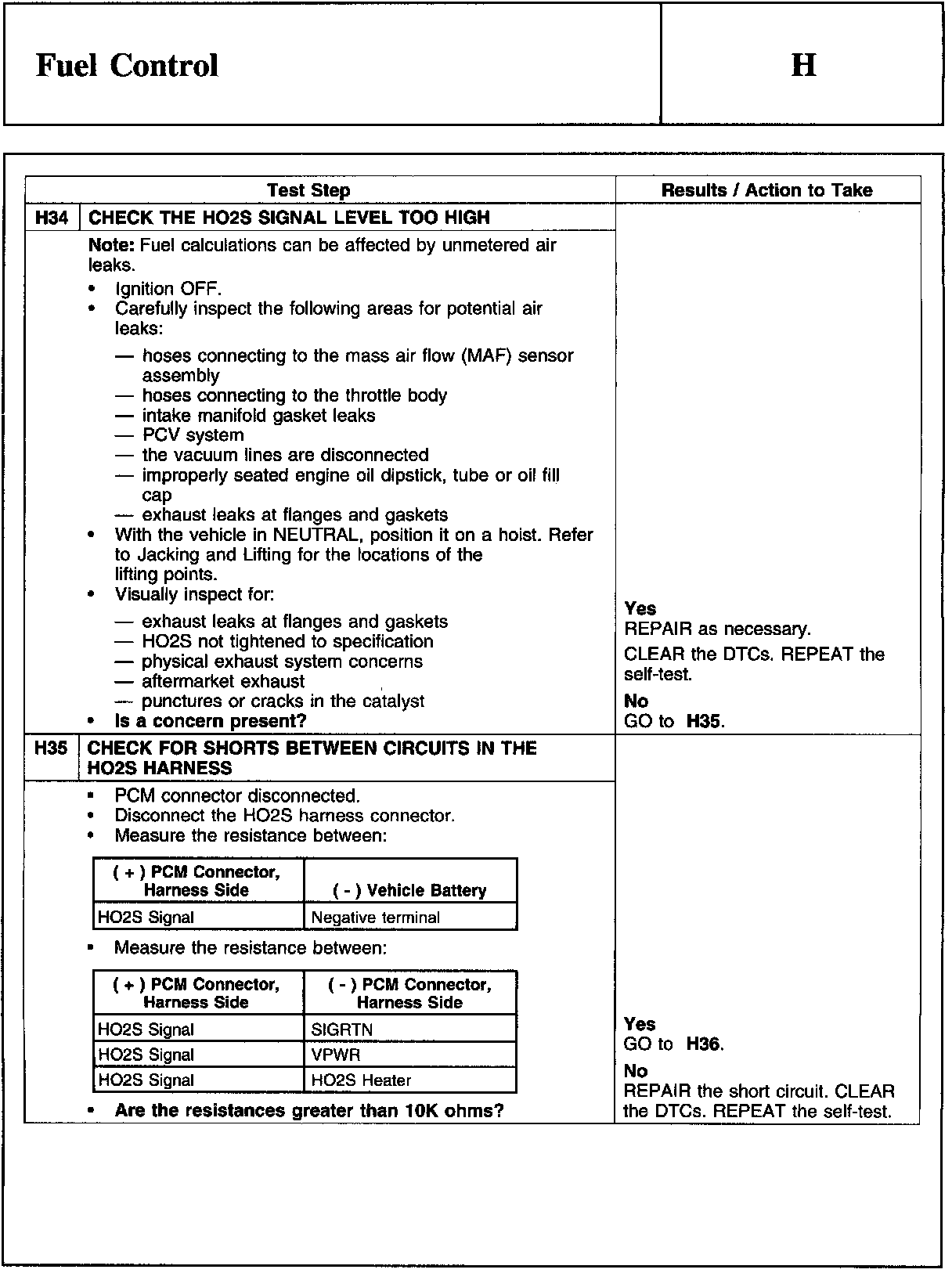

H34-H35:

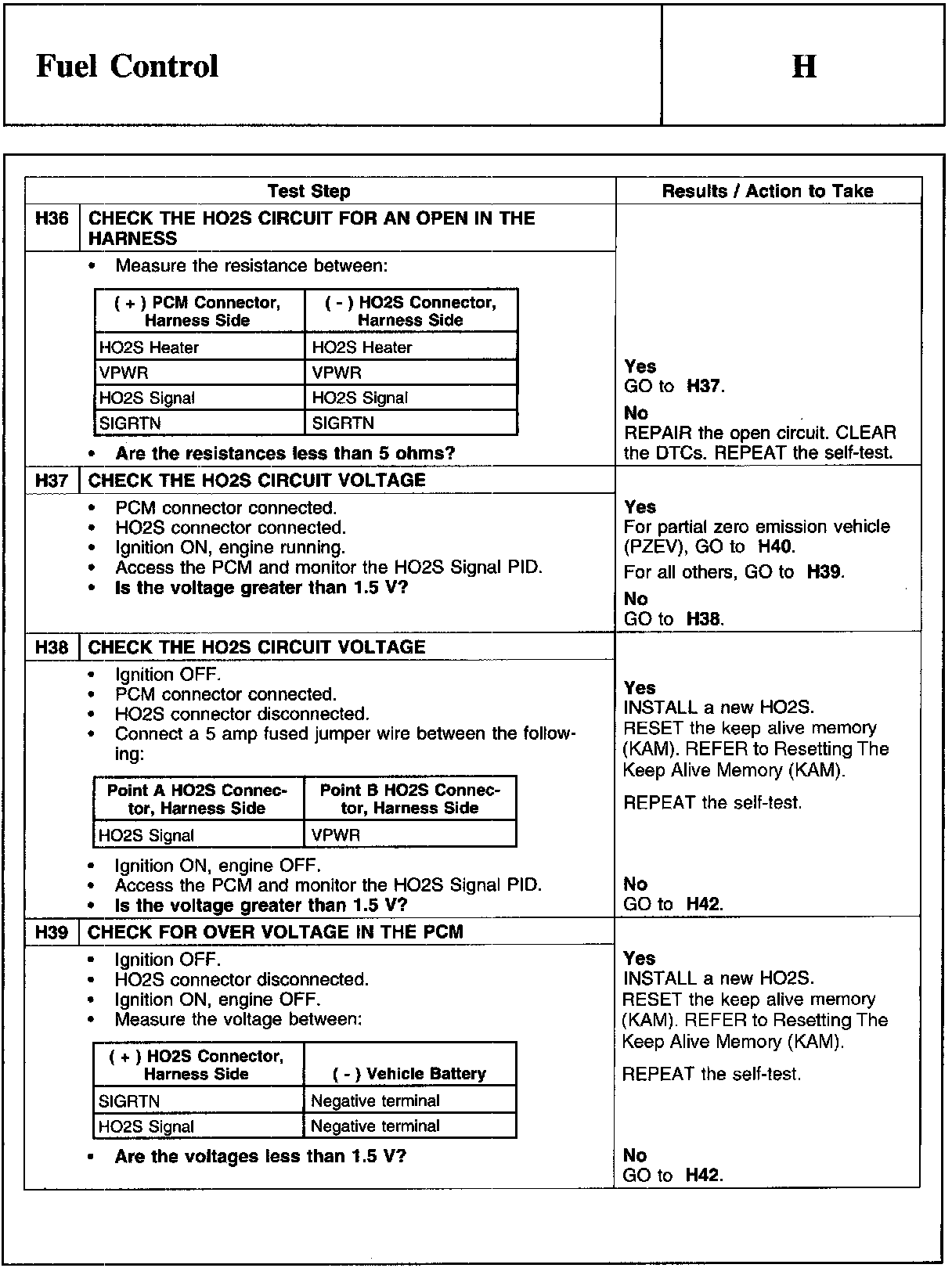

H36-H39:

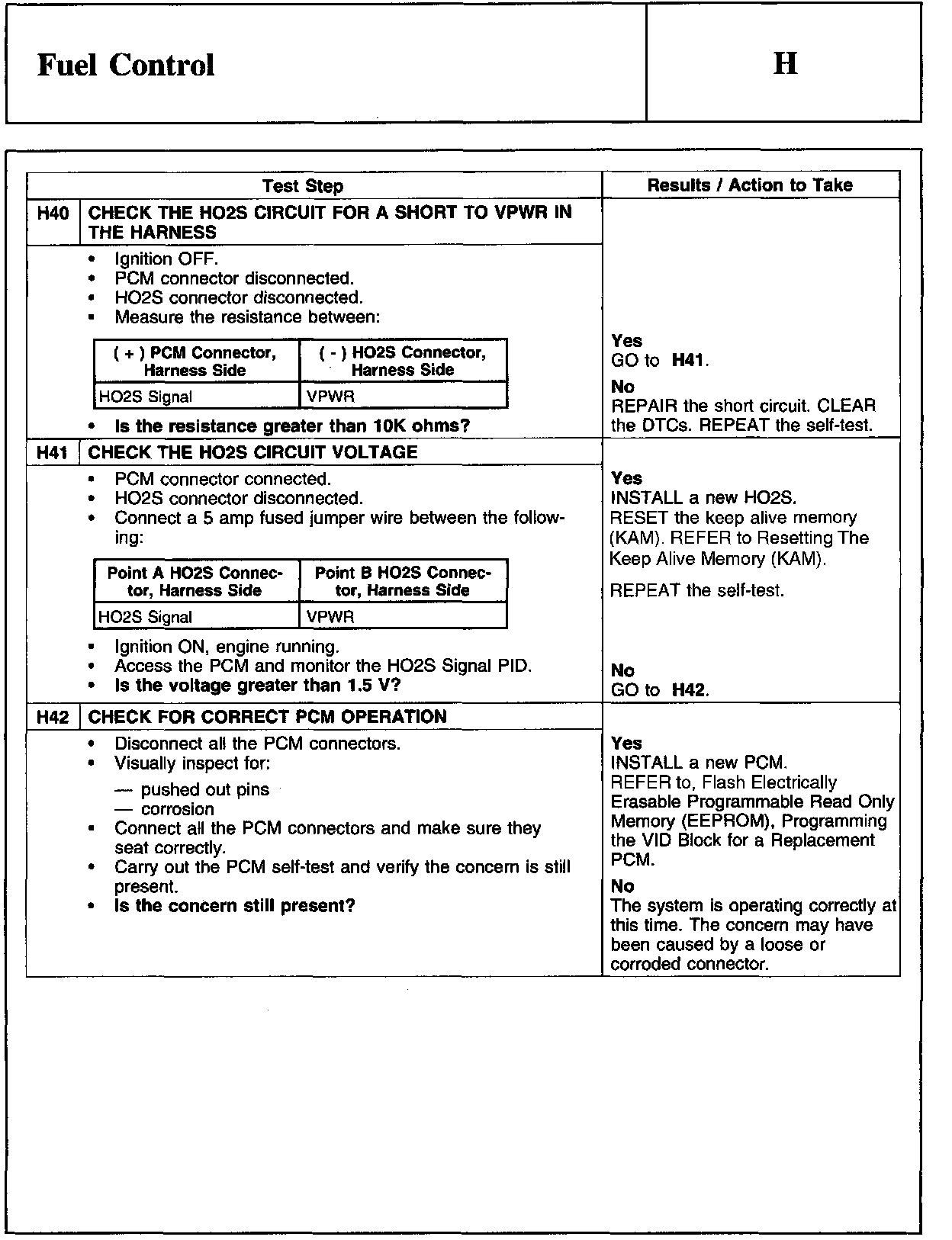

H40-H42:
