Master window adjust switch - Edge: Schematic

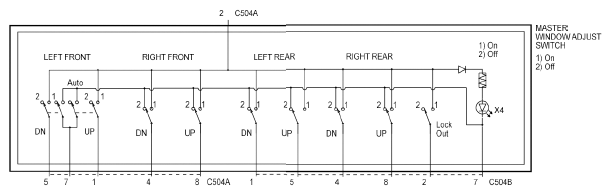

Fig 1: Master Window Adjust Switch - Edge - Schematic
Courtesy of FORD MOTOR CO.
