Multifunction Switch, Wiper/Washer Portion - Front: Schematic

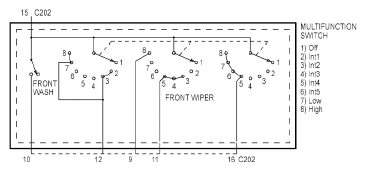

Fig 1: Multifunction Switch, Wiper/Washer Portion - Front - Schematic
G05753117Courtesy of FORD MOTOR CO.
