Speed Control Switch: Notes

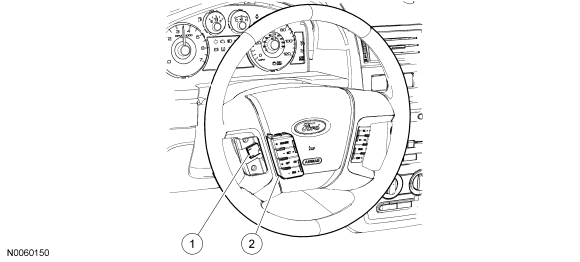

Fig 1: Exploded View Of Speed Control Switch - Edge

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Speed control switch electrical connector (part of 14A411)
2	9C888	Speed control switch

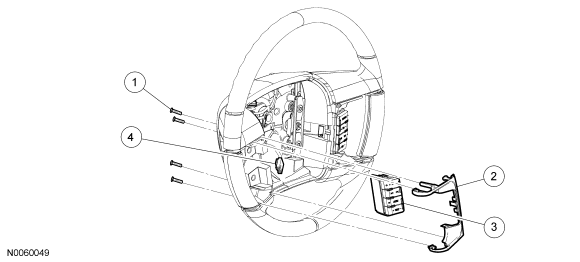

Fig 2: Exploded View Of Speed Control Switch - MKX

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Steering wheel controls bezel screws (4 required)
2	-	Steering wheel controls bezel
3	9C888	Speed control switch
4	-	Speed control switch electrical connector (part of 14A441)
