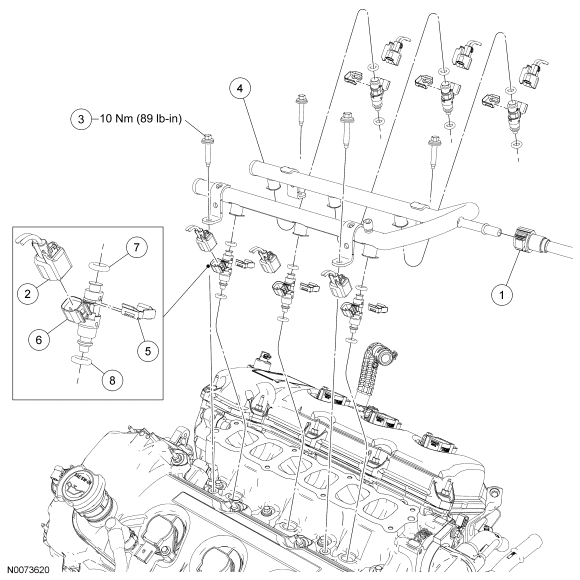

Fuel Rail and Fuel Injector - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 9J279 | Fuel tube-to-fuel rail quick connect coupling |
| 2 | 14A464 | Fuel injector electrical connector (6 required) (part of 12B637) |
| 3 | W503279 | Fuel rail bolt (4 required) |
| 4 | 9F792 | Fuel rail |
| 5 | 9N976 | Fuel injector clip (6 required) |
| 6 | 9F593 | Fuel injector (6 required) |
| 7 | 9229 | Upper fuel injector O-ring seal (6 required) |
| 8 | 9229 | Lower fuel injector O-ring seal (6 required) |
- For additional information, refer to the appropriate procedures.
