Steering Angle Sensor Module (SASM): Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

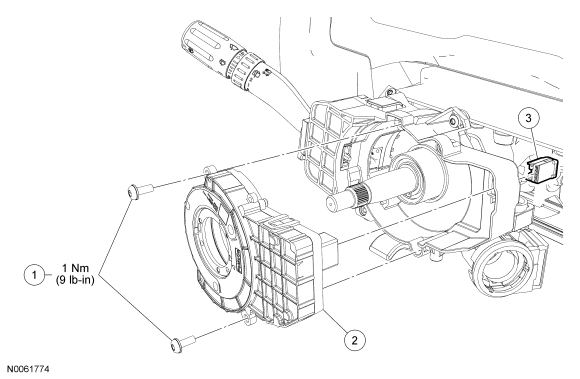

Fig 1: Exploded View Of Steering Wheel Rotation Sensor With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Steering angle sensor module (SASM) bolts (2 required) (part of 13D774)
2	3F818	SASM
3	-	SASM electrical connector (part of 14401)
