B: Powertrain Control Module (PCM) Power Relay
Introduction

B: Pinpoint Tests B - Test

WARNING: THIS VEHICLE IS EQUIPPED WITH HIGH VOLTAGE CABLES, COMPONENTS, AND WIRING. THE HIGH VOLTAGE WARNING LABELS CONTAINING THE HIGH VOLTAGE SYMBOL ARE LOCATED ON EACH HIGH VOLTAGE COMPONENT. HIGH VOLTAGE CABLES AND WIRING ARE ORANGE IN COLOR. CERTIFIED RUBBER INSULATING GLOVES AND A FACE SHIELD MUST BE WORN WHEN WORKING WITH THE HIGH VOLTAGE CABLES, COMPONENTS, OR WIRING. THE IGNITION KEY MUST BE CYCLED TO THE OFF POSITION FOR A MINIMUM OF 5 MINUTES, AND THE HIGH VOLTAGE TRACTION BATTERY SERVICE DISCONNECT PLUG PLACED IN THE SERVICING/SHIPPING POSITION BEFORE DISCONNECTING THE HIGH VOLTAGE CABLES. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY OR DEATH.

This pinpoint test is intended to diagnose the following:

- harness circuits: B+, IGN START/RUN, INJPWRM, ISP-R, ISP-R/S, PCMRC and VPWR
- PCM power relay (12A646)
- PCM (12A650)

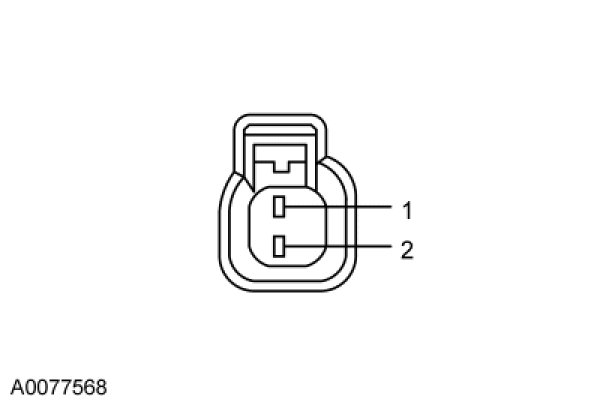

Fuel Injector Connector

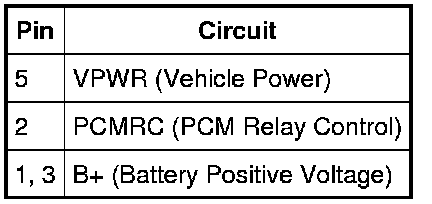

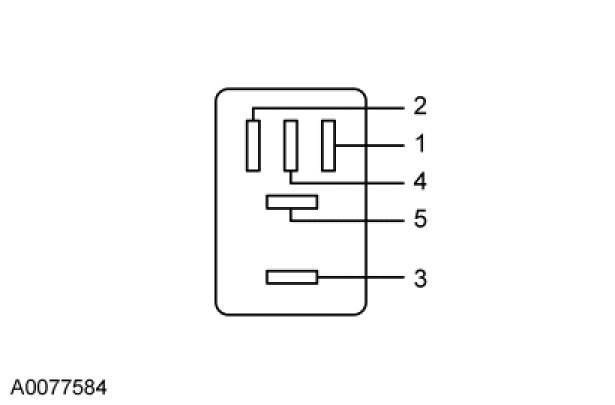

Powertrain Control Module Power (PCM Power) Relay Connector

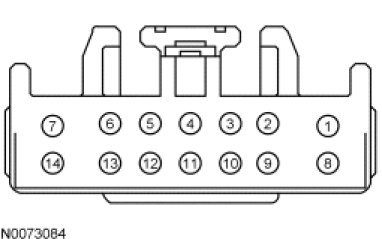

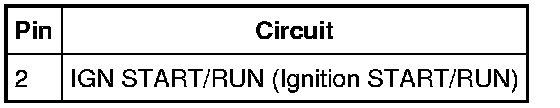

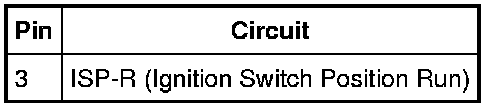

SJB-A Connector

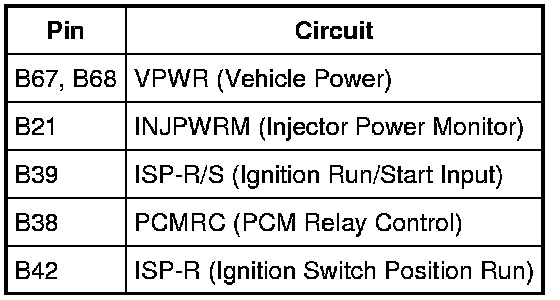

Powertrain Control Module (PCM) Connector










B: Pinpoint Tests B - Test
