HVAC Module DTC Chart
Climate Control System
DTC Charts

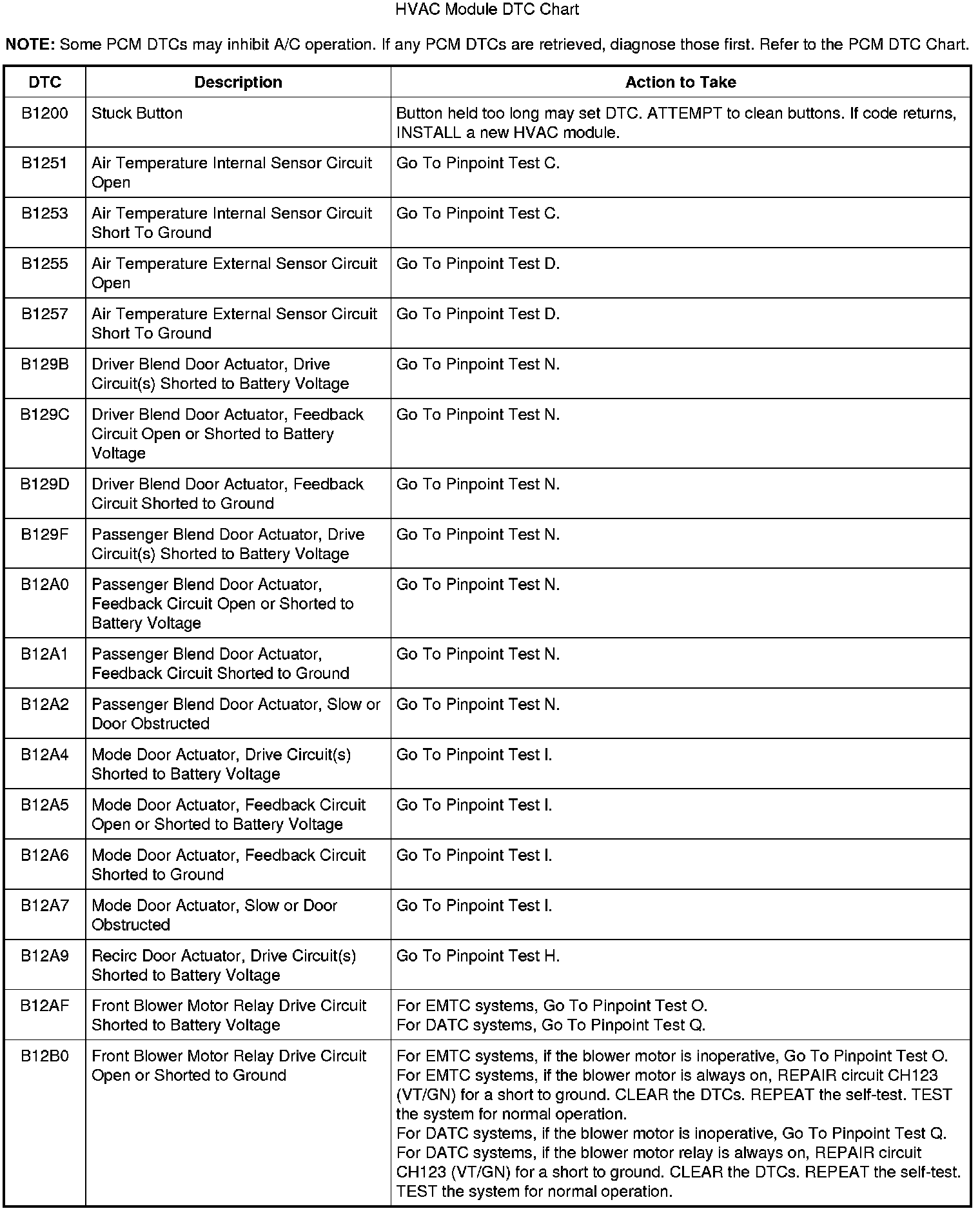

B12A0-B1257:

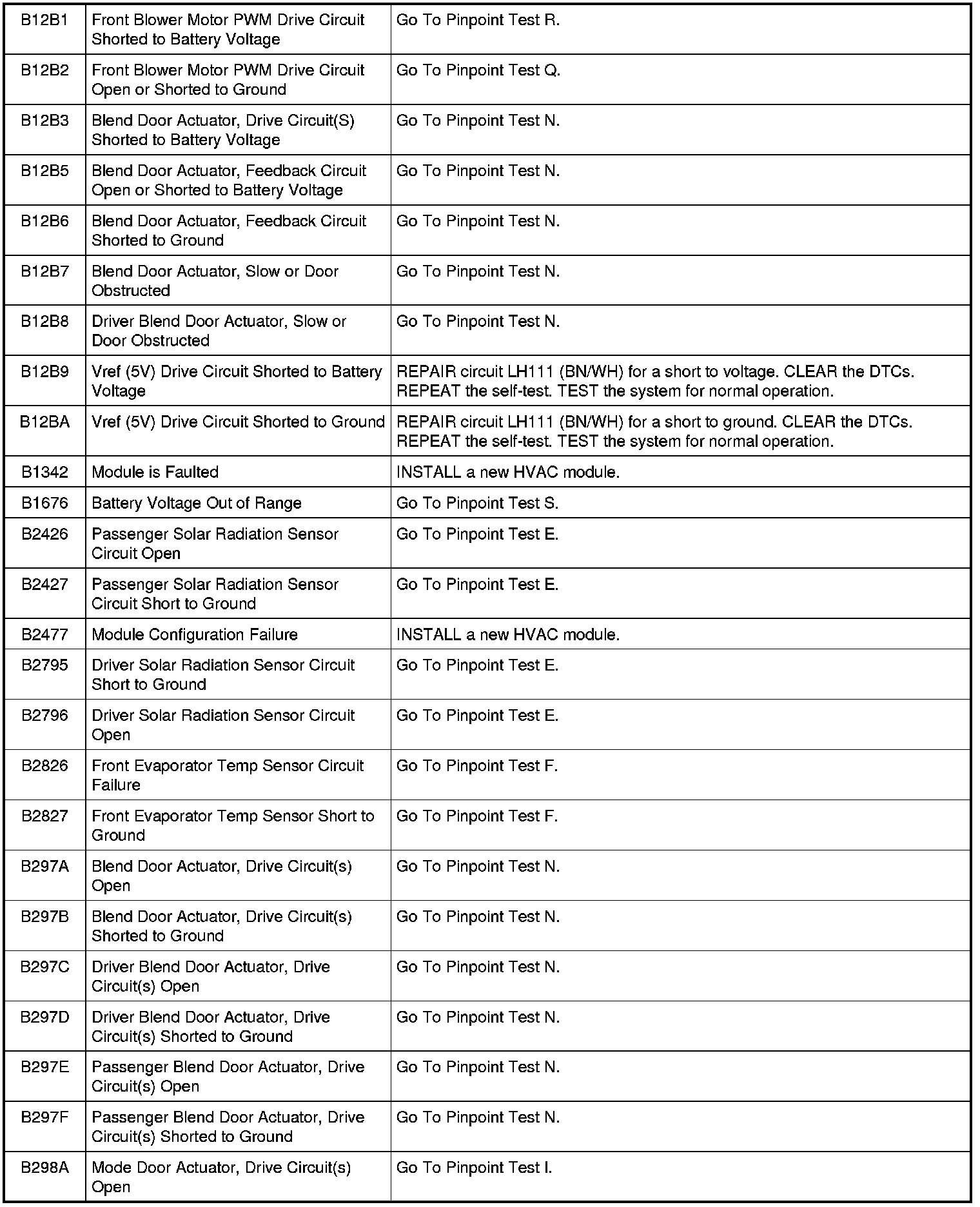

B12BA-B2827:

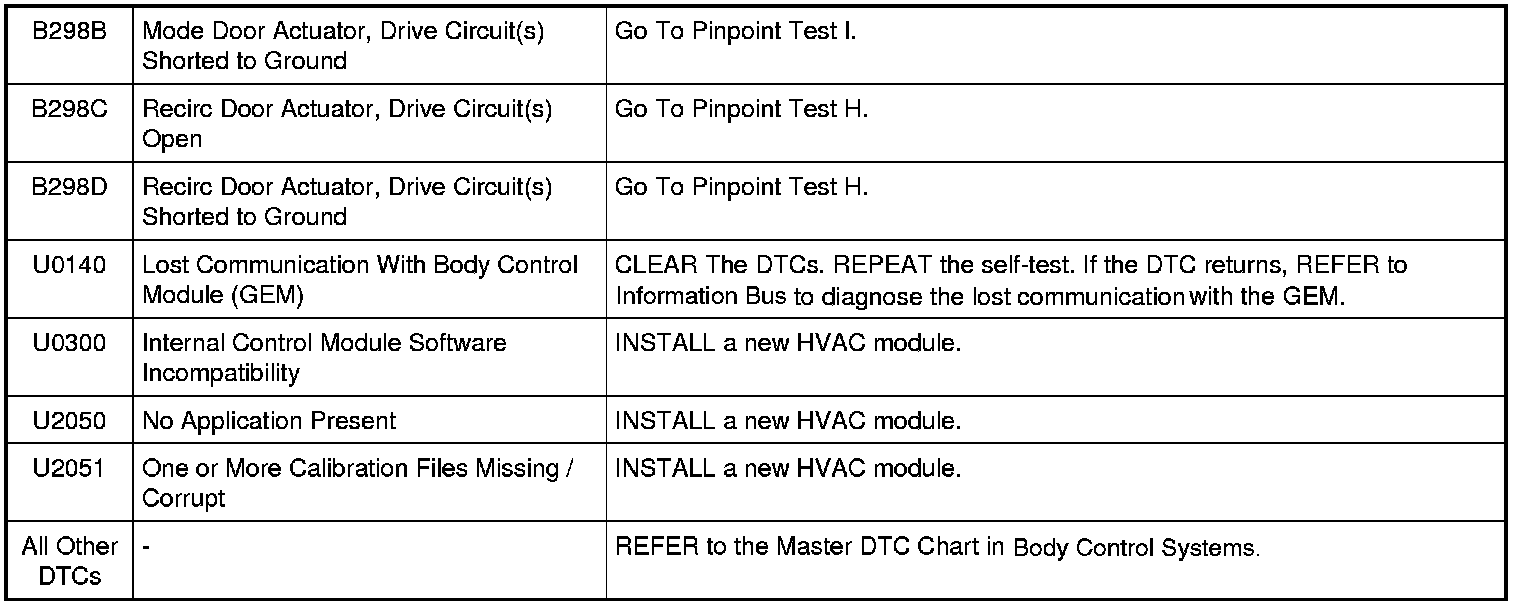

B298B-B298D / U0140-U2051:
