Interior Lighting Module: Service and Repair

Ambient Lighting Module









Removal and Installation

1. Remove the center console finish panel.

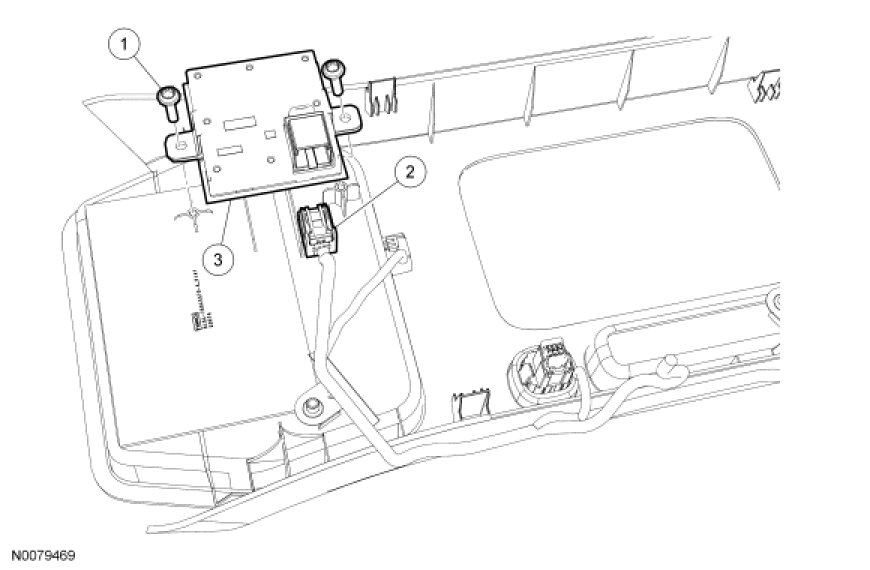

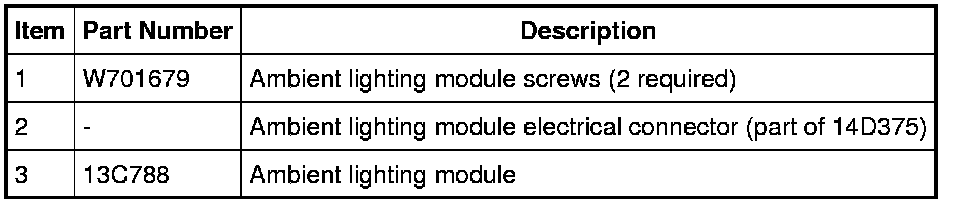

2. Remove the 2 screws and the ambient lighting module.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
