Turn Signals: Service and Repair

Side Turn Signal Lamp

Removal and Installation

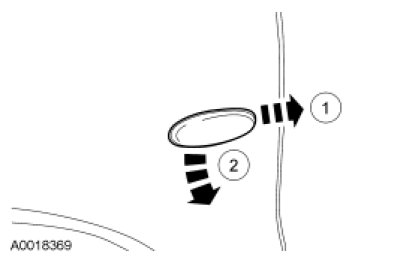

1. Remove the side turn signal lamp.

1. Push the side turn signal lamp rearward.

2. Pull outward from the front of the side turn signal lamp and remove.

- Disconnect the electrical connector.





2. To install, reverse the removal procedure.
