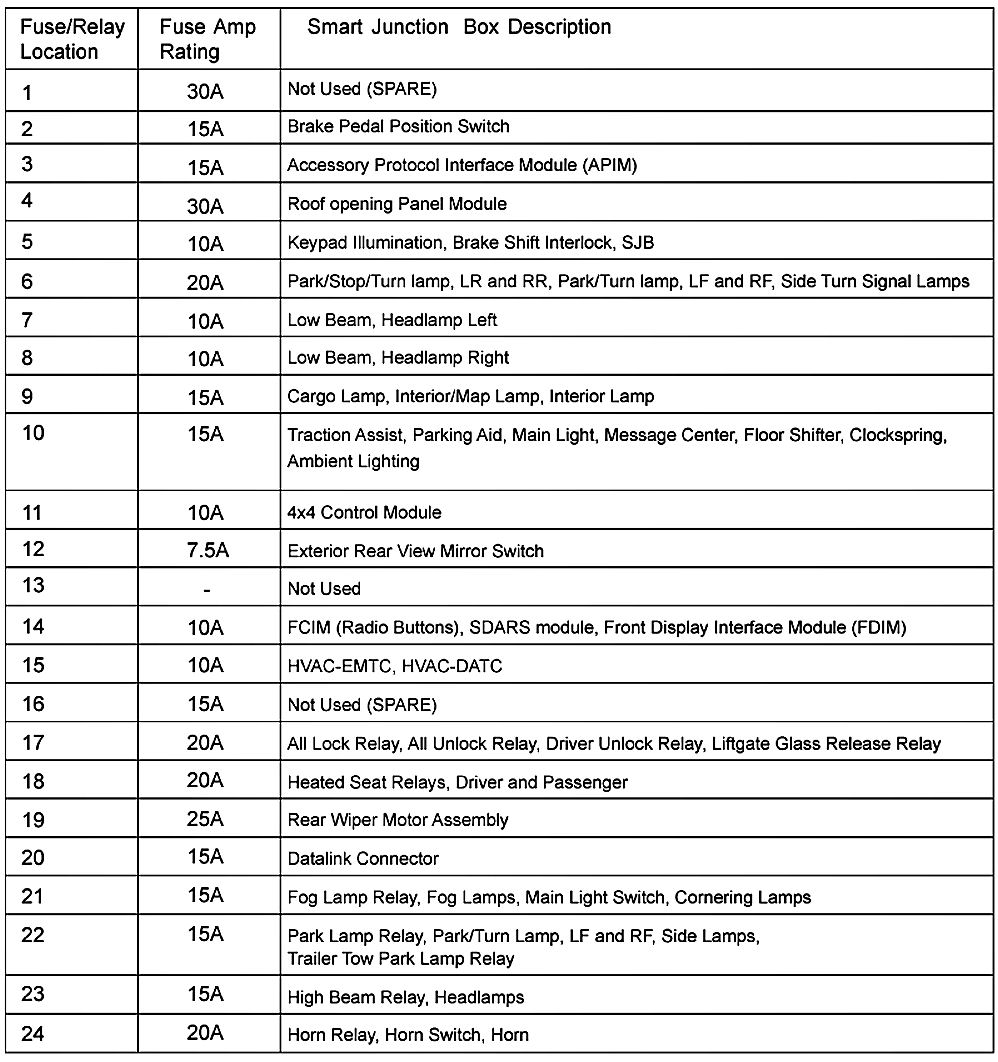

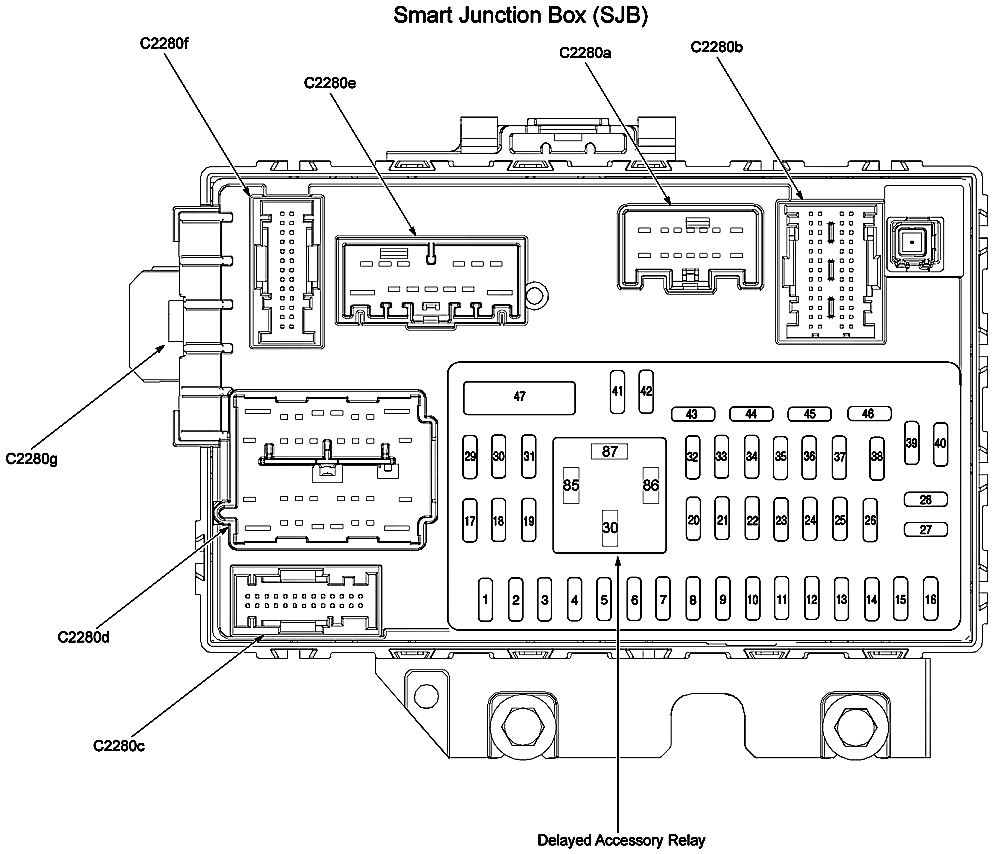

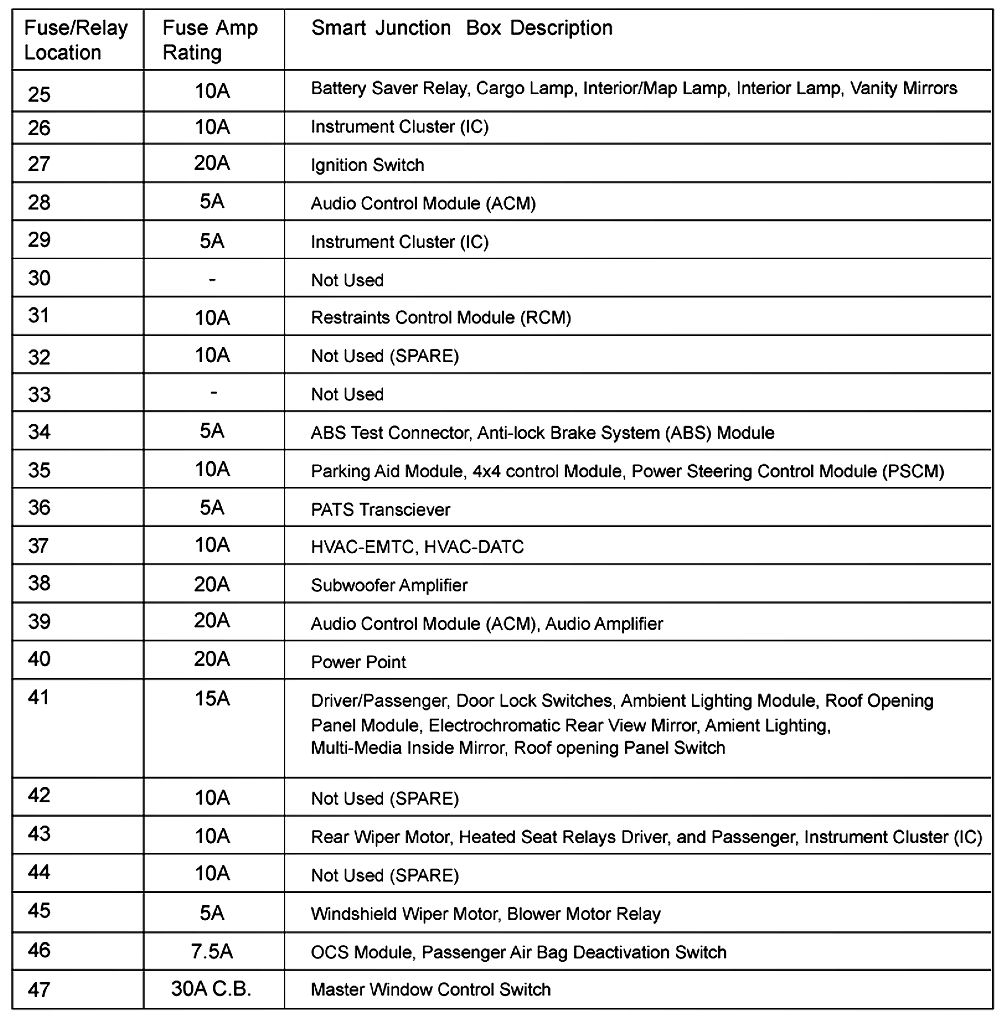

Smart Junction Box

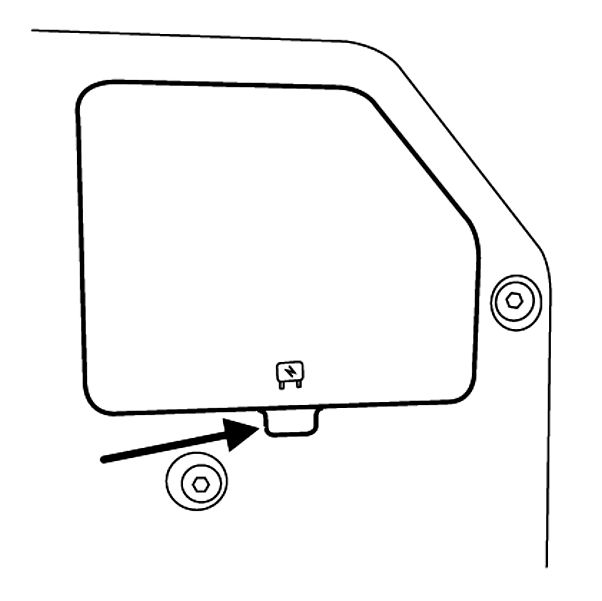

Note: The fuse panel is located on the right-hand side of the center console, by the instrument panel. Remove the panel cover to access the fuse cover. Press the tabs on the top and bottom the fuse cover to remove.
