Fuel Tank and Filler Pipe - Exploded View
Fuel Tank and Filler Pipe - Exploded View

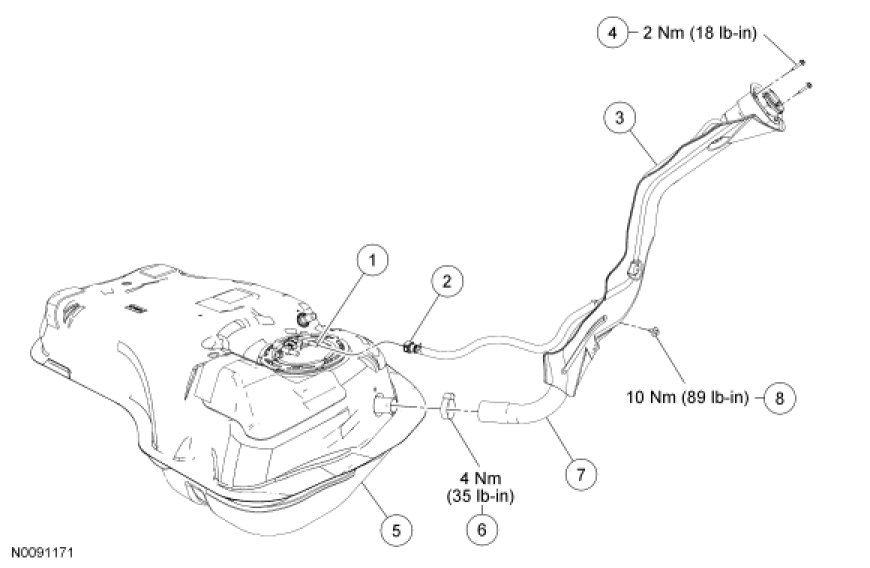

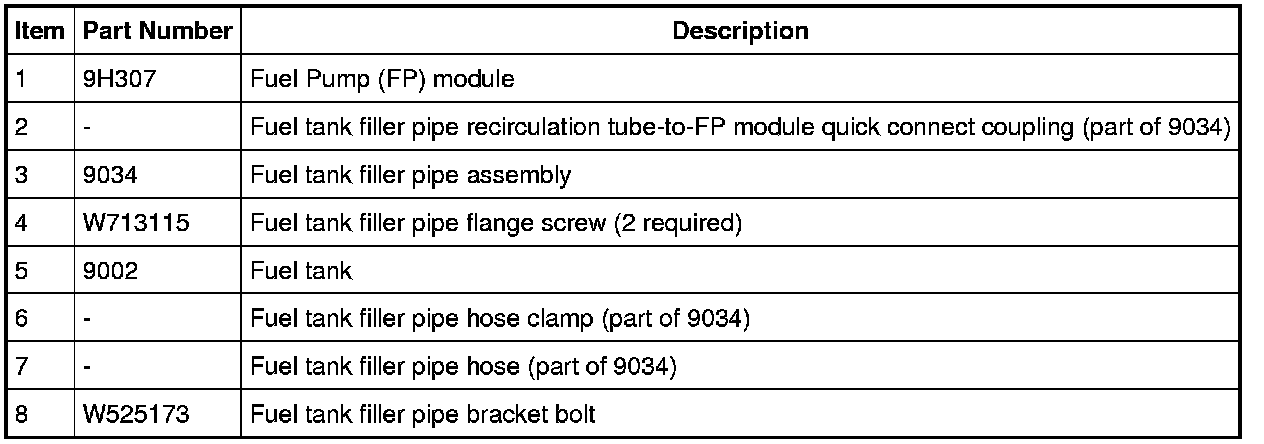

Fuel Tank Filler Pipe Assembly

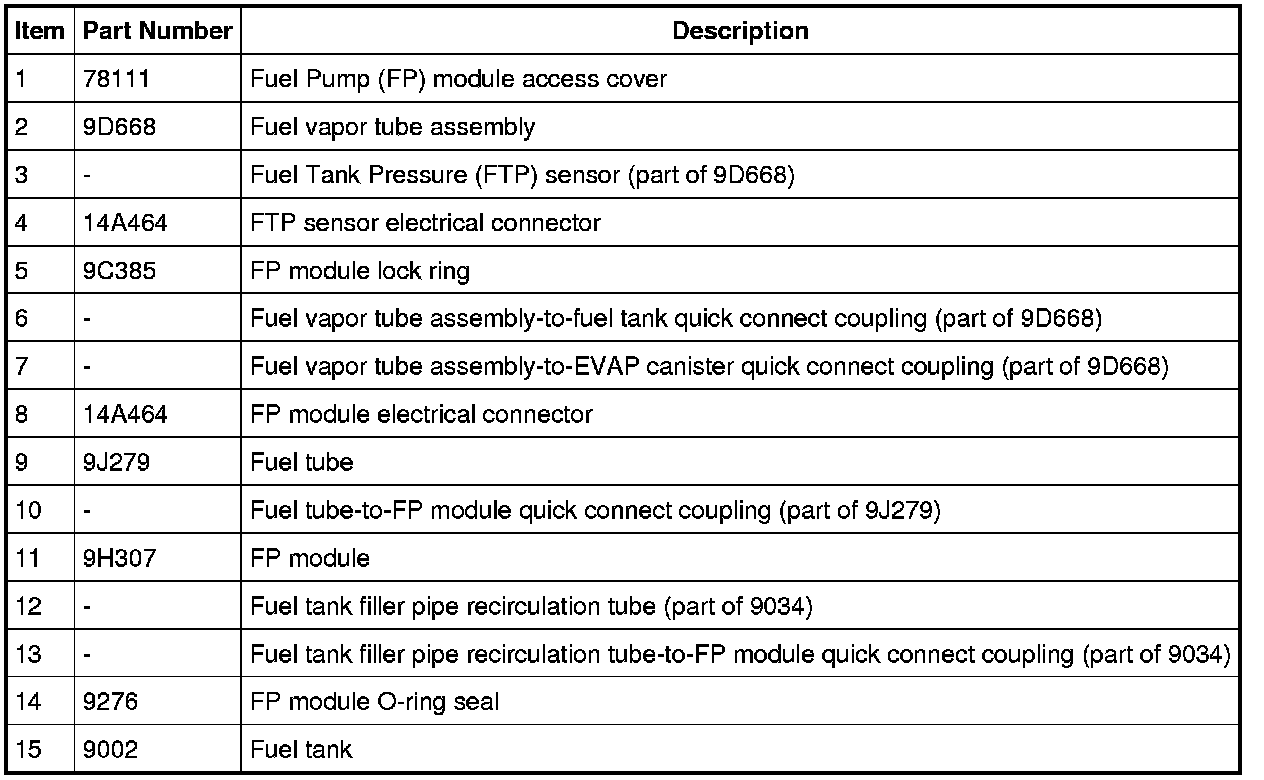

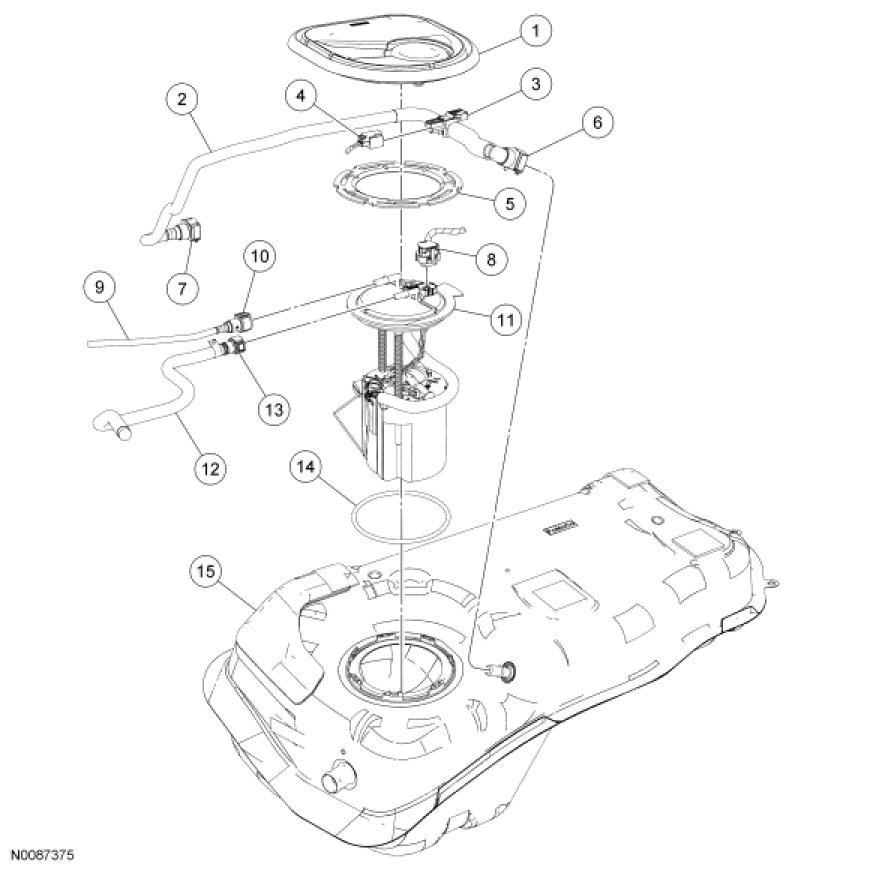

Fuel Tank and Fuel Pump (FP) module

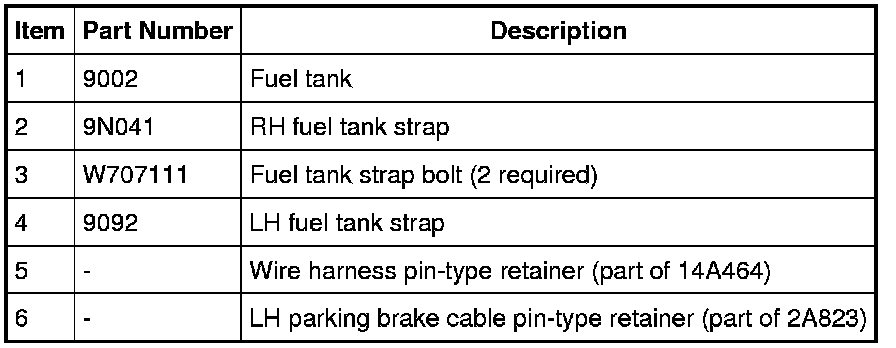

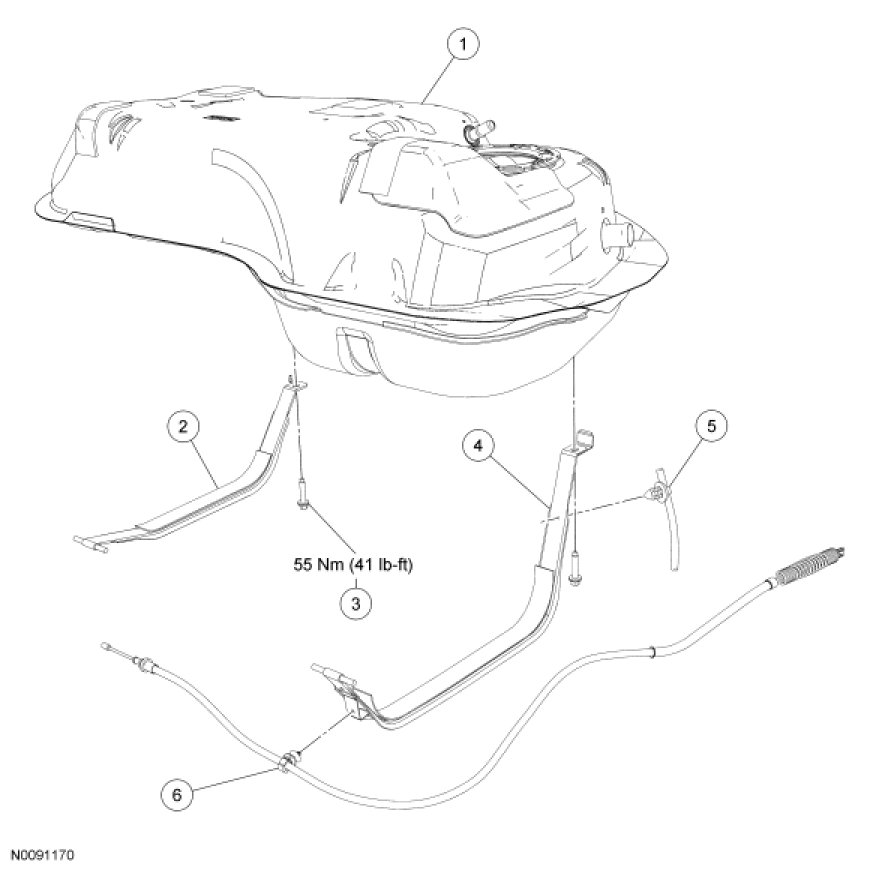

Fuel Tank Supports
1. For additional information, refer to the procedures.
Fuel Tank and Filler Pipe - Exploded View
Fuel Tank Filler Pipe Assembly
Fuel Tank and Fuel Pump (FP) module
Fuel Tank Supports
1. For additional information, refer to the procedures.
