Exhaust Manifold

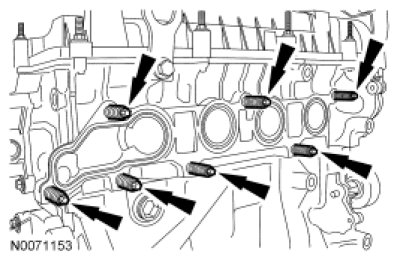

Install 7 new exhaust manifold studs in the cylinder head.
Tighten to 17 Nm (150 lb-in).

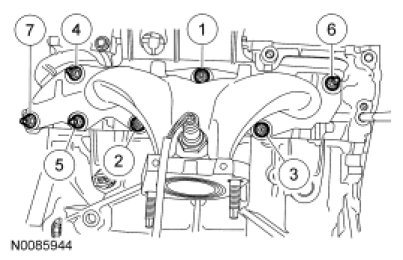

Position the exhaust manifold and tighten the 7 new exhaust manifold nuts in the sequence shown in 2 stages:
Stage 1: Tighten to 48 Nm (35 lb-ft).
Stage 2: Tighten to 48 Nm (35 lb-ft).
