Intake Manifold

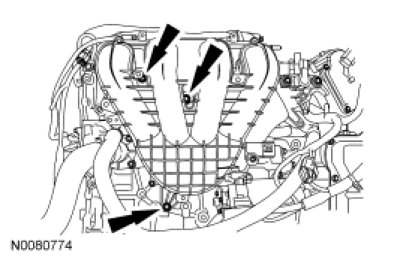

Install the intake manifold gaskets,
intake manifold
and the 8 bolts.
Tighten to
18 Nm (159 lb-in).
