Continuously Variable Transmission/Transaxle: Testing and Inspection

Diagnostics

Refer to Computers and Control Systems Information.

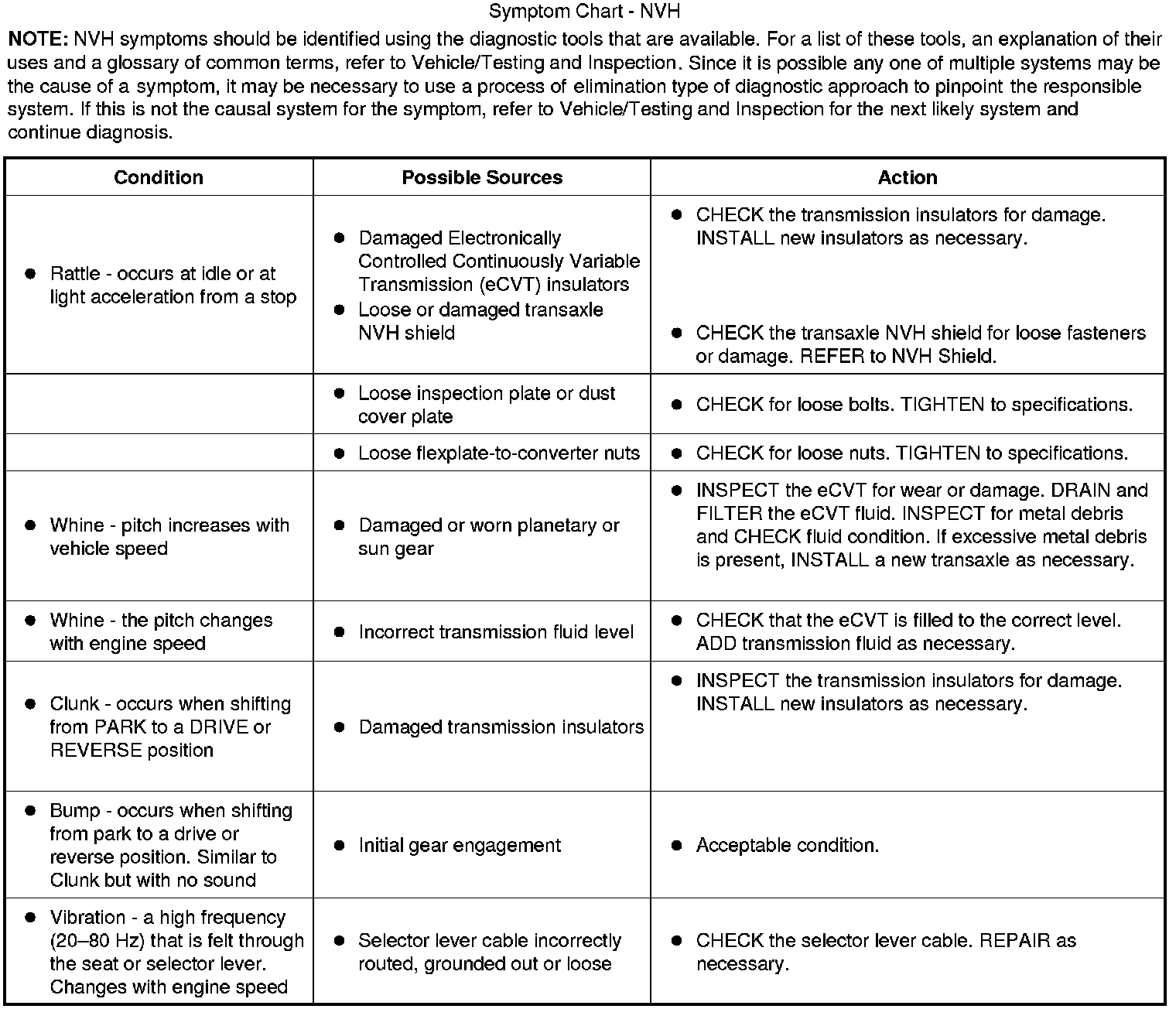

Symptom Chart
