Intake Air System Components - Exploded View

Intake Air System Components - Exploded View

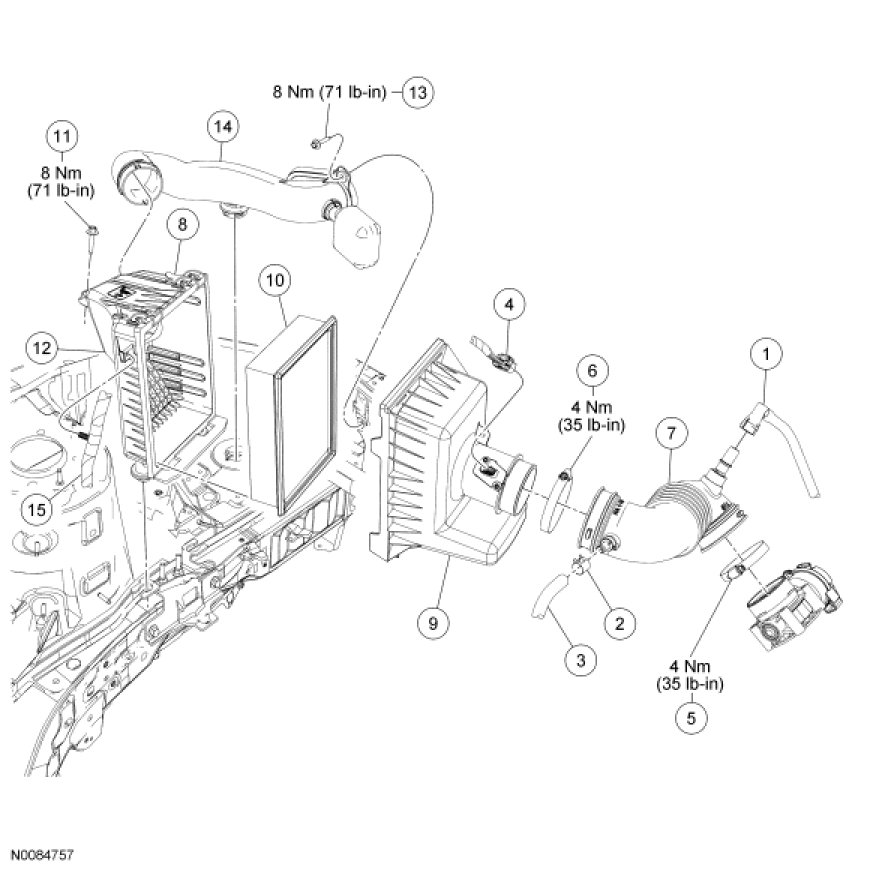

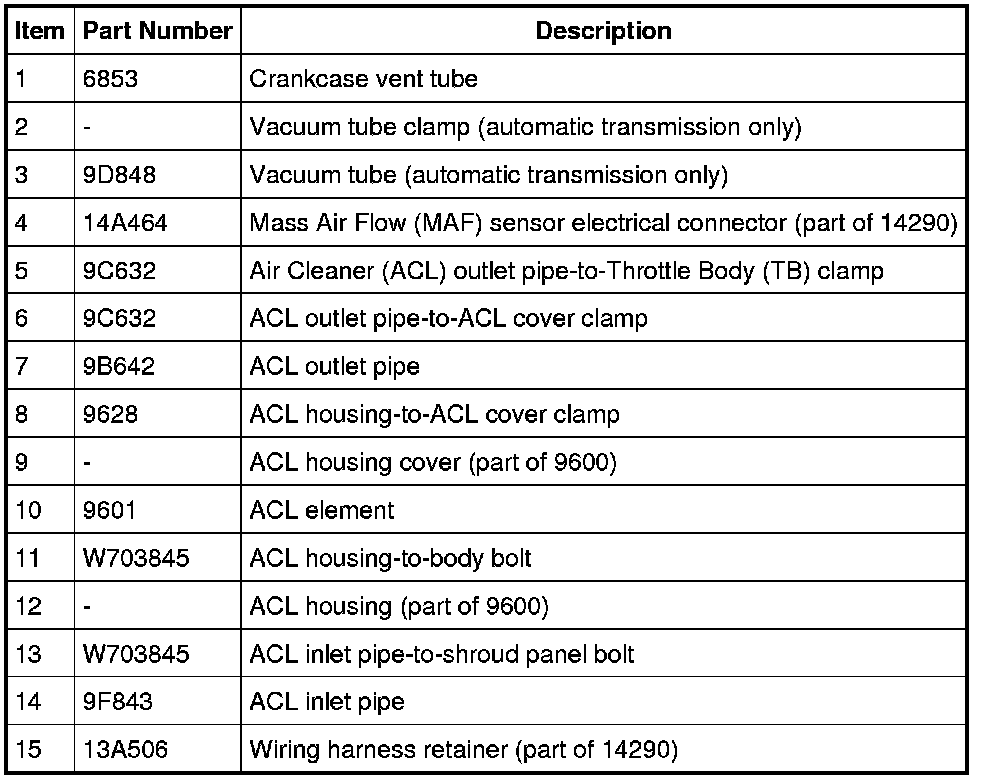

Air Cleaner Assembly, Intake Pipe and Outlet Pipe

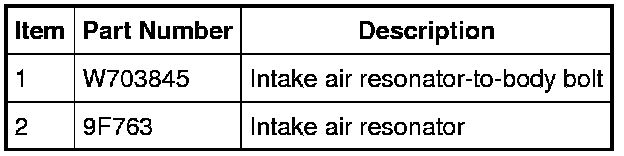

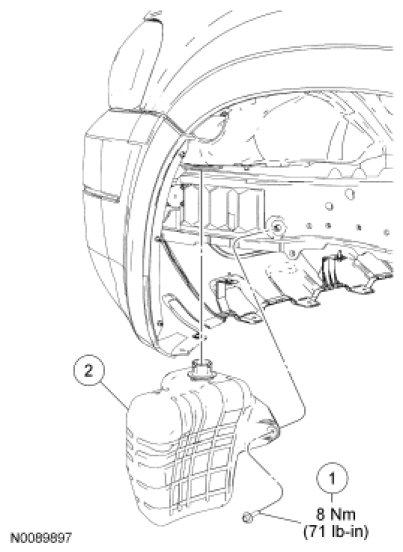

Intake Air Resonator









1. For additional information, refer to the procedures.
