Crankshaft Position Sensor: Service and Repair

Crankshaft Position (CKP) Sensor

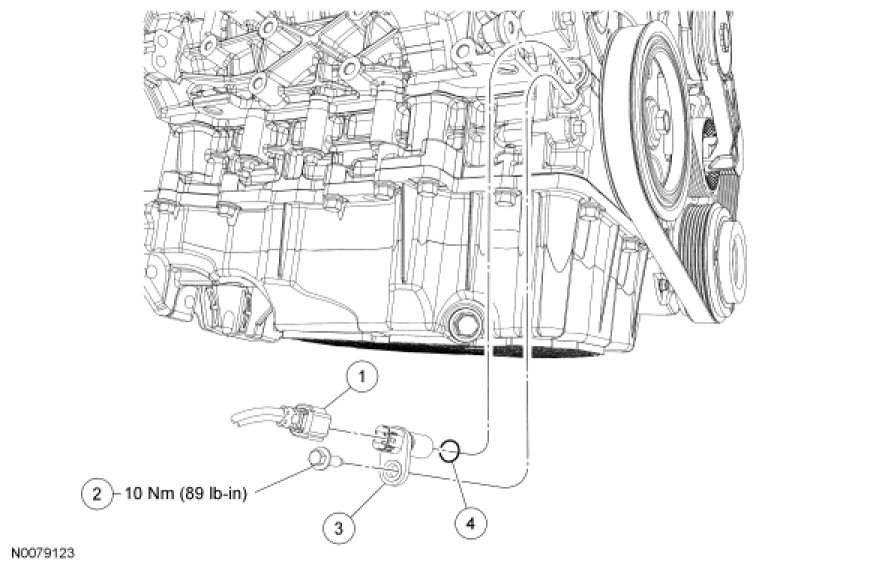

Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

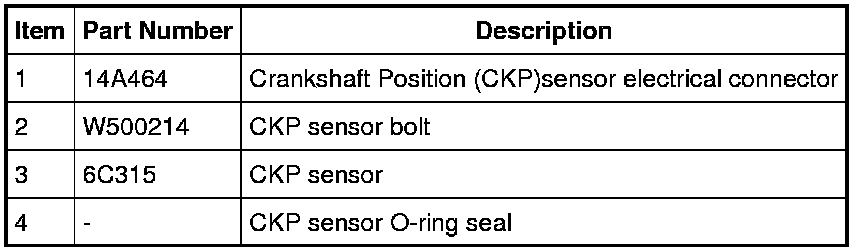

2. Disconnect the Crankshaft Position (CKP) sensor electrical connector.

3. Remove the bolt and the CKP sensor.

Installation

1. Inspect the O-ring seal and install new as necessary.

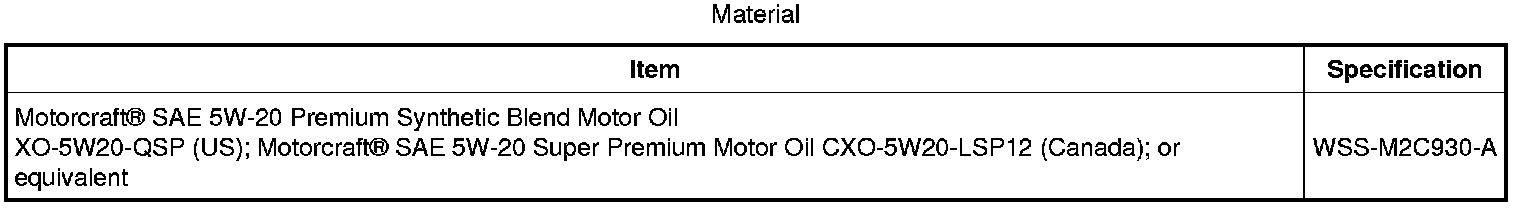

2. NOTE: Lubricate the CKP sensor O-ring seal with clean engine oil.

Install the CKP sensor and bolt.
- Tighten to 10 Nm (89 lb-in).

3. Connect the CKP sensor electrical connector.

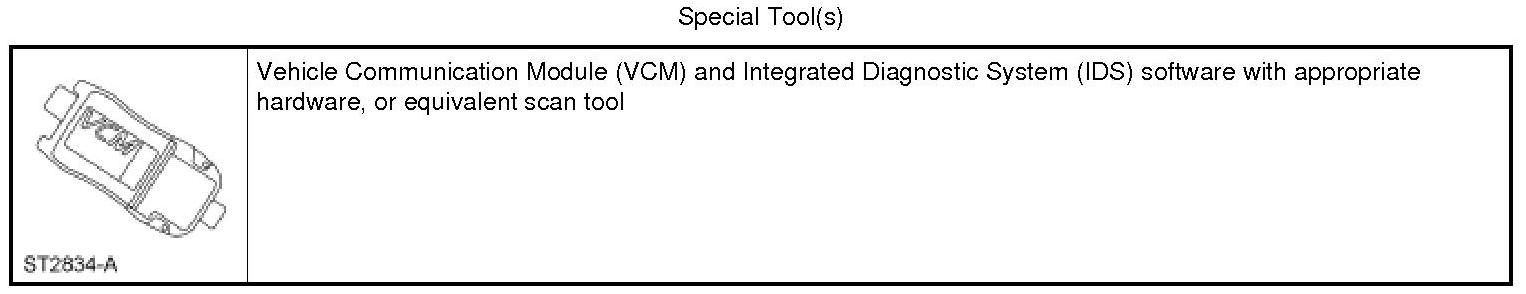

4. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
